Spare parts - Partlist - TF 324 TF 324, 966 78 68-01, 2012-01 - PRODUCT COMPLETE

Everything for your machines

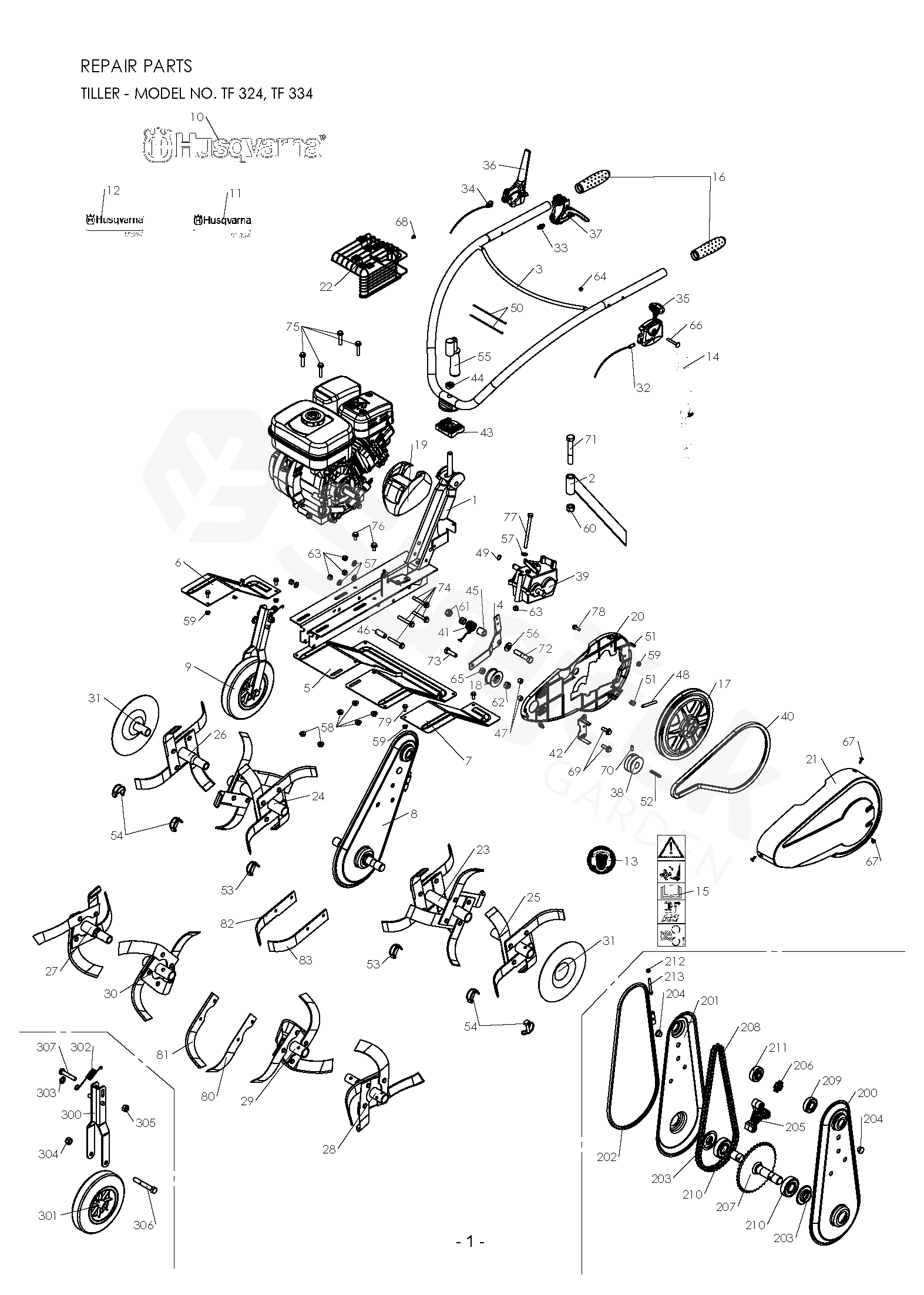

TF 324 TF 324, 966 78 68-01, 2012-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TF 324, 966 78 68-01, 2012-01

1	FRAME	580322301
2	TAIL-SKID	531008206
3	HANDLEBAR	580461001
4	LEVER	519653407
5	PROTECTOR	531008203
6	PROTECTOR	531008204
7	PROTECTOR	531008205
8	TRANSMISSION	575358701
9	WHEEL	576136601
10	STICKER	580320601
11	STICKER	580320501
12	STICKER	580320401
13	STICKER	577463301
14	DECAL	519646680
15	DECAL	531008540
16	GRIP	522992301
17	PULLEY	519653060
18	PULLEY	519653457
19	COVER	580319301
20	PLATE	531008208
21	COVER	531008207
22	GRILL	531008582
23	HROT LEFT	519653028
24	HROT RIGHT	519653029
25	TINE	531008214
26	TINE	531008215
27	TINE	531008522
28	TINE	531008523
29	TINE	531008521
30	TINE	531008520
31	COVER	519653362
32	THROTTLE CABLE	577525001
33	CABLE	577547401
34	HANDLEBAR	580317501
35	THROTTLE LEVER	577453001
36	LEVER	580317201
37	LEVER	577547801
38	PULLEY	544243901
39	GEAR	519653092
40	BELT	575360201
41	SPRING	519653090
42	PULLEY	580315601
43	SPACER	519653415
44	SPACER	519653414
45	SPACER	575360501
46	SPACER	575361001
47	SPACER	531008216
48	SHAFT	519653067
49	RETAINING RING	519653466
50	COLLAR	544311101
51	CLIP	519653425
52	KEY	519653021
53	CLIP	577453601
54	CLIP	577453501
55	LEVER	544311501
56	WASHER	519653453
57	WASHER	544208101
58	NUT	519653430
59	NUT	519653432
60	NUT	531008578
61	ECROU DE FREIN	752255051
62	NUT	519653458
63	NUT	544207901
64	HEXAGON LOCKING NUT	732261601
65	NUT	519653456
66	SCREW	577453801
67	SCREW	519653426
68	SCREW	576145201
69	SCREW	519653412
70	SCREW	728692300
71	BOLT	531008220
72	SCREW	575361801
73	SCREW	519653455
74	SCREW	575361601
75	SCREW	519653413
76	BOLT	531008202
77	SCREW	519653045
78	SCREW	576145401
79	SCREW	519653435
80	BLADE	531008547
81	BLADE	531008548
82	BLADE	519653447
83	BLADE	519653448
200	HOUSING	519653042
201	HOUSING	519653041
202	RING	519653043
203	RING	531008576
204	PLUG	519653391
205	ROZPĚRKA	519653006
206	PINION	519653057
207	ŘETĚZKA	519653007
208	CHAIN	575362301
209	BALL	505544001
210	BEARING	519653053
211	RING	531008546
212	HEXAGON LOCKING NUT	732261601
213	SCREW	501963801
300	SUPPORT	519653460
301	WHEEL	519653259
302	PRUŽINA	519650260
303	WASHER	519653462
304	ECROU DE FREIN	752255051
305	NUT	519653458
306	SCREW	519653131
307	SCREW	519653046
