Spare parts > STIGA > Lawn Mower > COLLECTOR 43 S COLLECTOR 43 S (2008) [12-2334-12] > Wheels and Hub Caps
Back to

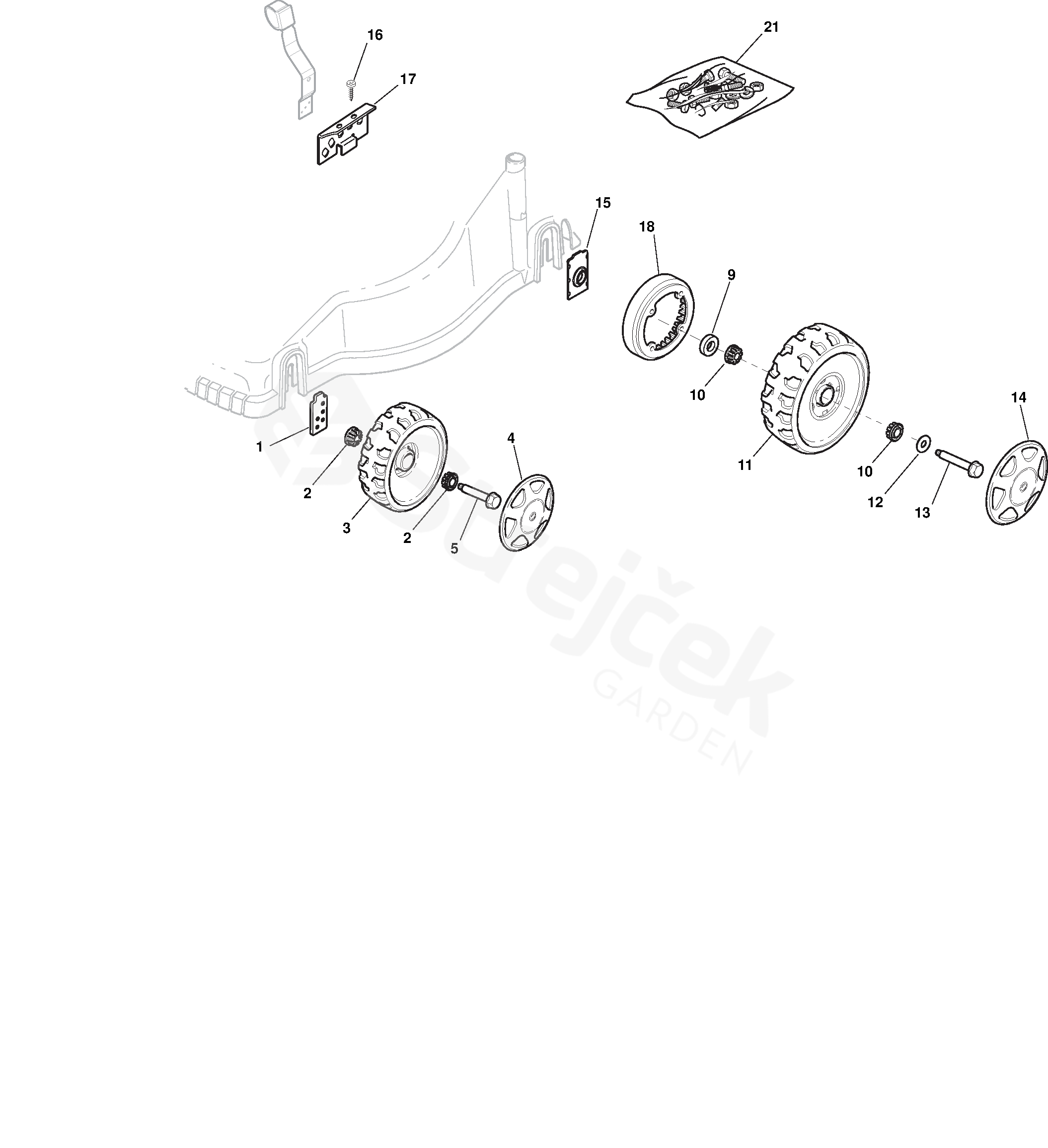

Wheels and Hub Caps
COLLECTOR 43 S COLLECTOR 43 S (2008) [12-2334-12]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COLLECTOR 43 S (2008) [12-2334-12]
1 Fixed Wheel Support
From 01-September-2007 		322785093/1
2 Bushing
From 01-September-2006 		322034515/1
3 Wheel
To 31-August-2006 		381007346/0
4 Hub Cap Grey
Grey 		322110395/0
5 Pin
From 01-September-2006 		122524340/0
9 Washer
From 01-September-2006 		112521370/0
10 Bushing
To 31-August-2006 		122034508/0
11 Wheel
To 31-August-2006 		322686093/0
12 Washer 112523050/0
13 Screw 112735599/0
14 Hub Cap Grey
Grey 		322110314/0
15 Plate 322557149/0
16 Screw 112728680/0
17 Sector, Height Adjustment 322735567/0
18 Wheels Crown 322120109/0
21 Outfit, Screws 381008679/0
