Spare parts > STIGA > Lawn Mower > COLLECTOR 45 COLLECTOR 45 (1997) [24-4213-13] > Walkbehind
Back to
Walkbehind

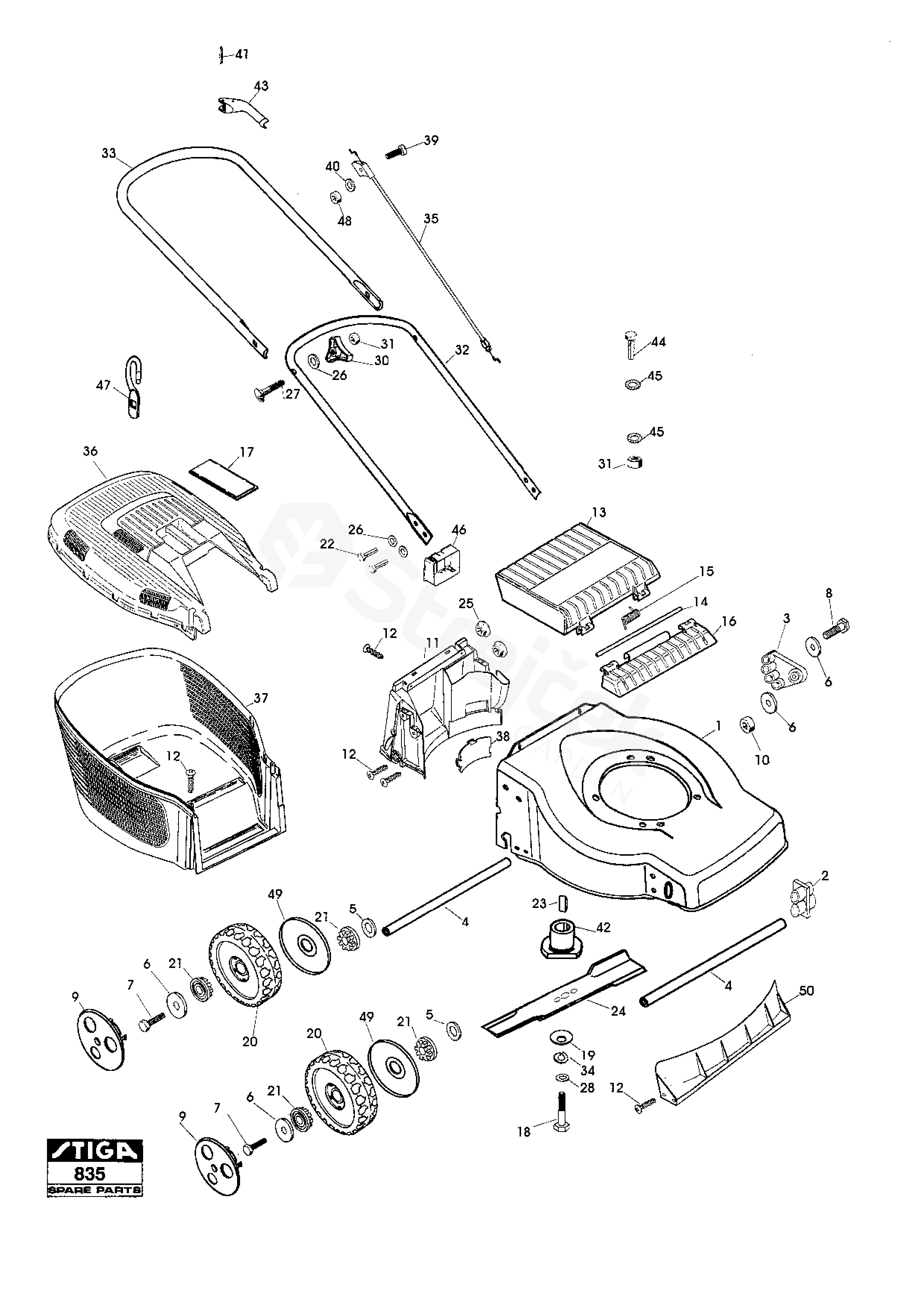

COLLECTOR 45 COLLECTOR 45 (1997) [24-4213-13]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COLLECTOR 45 (1997) [24-4213-13]
2 Wheel Axle Bushing 1117-1208-01
3 Wheel Axle Bushing 1117-1209-01
5 Washer 9699-0036-02
6 Washer 1117-1175-01
7 Screw 9997-0614-16
8 Screw 9997-0620-16
10 Lock Nut 9747-0631-02
12 Screw 9836-9516-12
14 Shaft For Rear Flap 1117-1143-01
15 Spring-Rear Flap 1117-1126-01
18 Screw 9987-5251-12
19 Elastic Washer 1117-1243-01
20 Wheel 1117-1167-01
21 Bushing 1117-1193-01
22 Screw 9997-0820-16
23 Key 9600-0014-00
25 Nut 1117-1131-01
26 Washer 9699-0028-02
27 Screw 9898-0845-12
28 Washer 9699-0035-02
30 Knob 1117-1108-01
31 Nut 9799-0831-02
33 Handle-upper part 1117-1221-01
34 Washer 9683-0040-02
39 Screw 9948-0635-16
40 Washer 9699-0025-02
41 Locating Pin 9595-0258-00
42 Blade mount 1117-1201-01
43 Opc Lever 1117-1177-01
44 Screw 9997-0830-16
45 Lock washer 9678-0009-02
47 USE 1117-1392-01 1117-1116-01
48 Nut 9799-0631-02
49 Protection, Wheel 1117-1161-01
