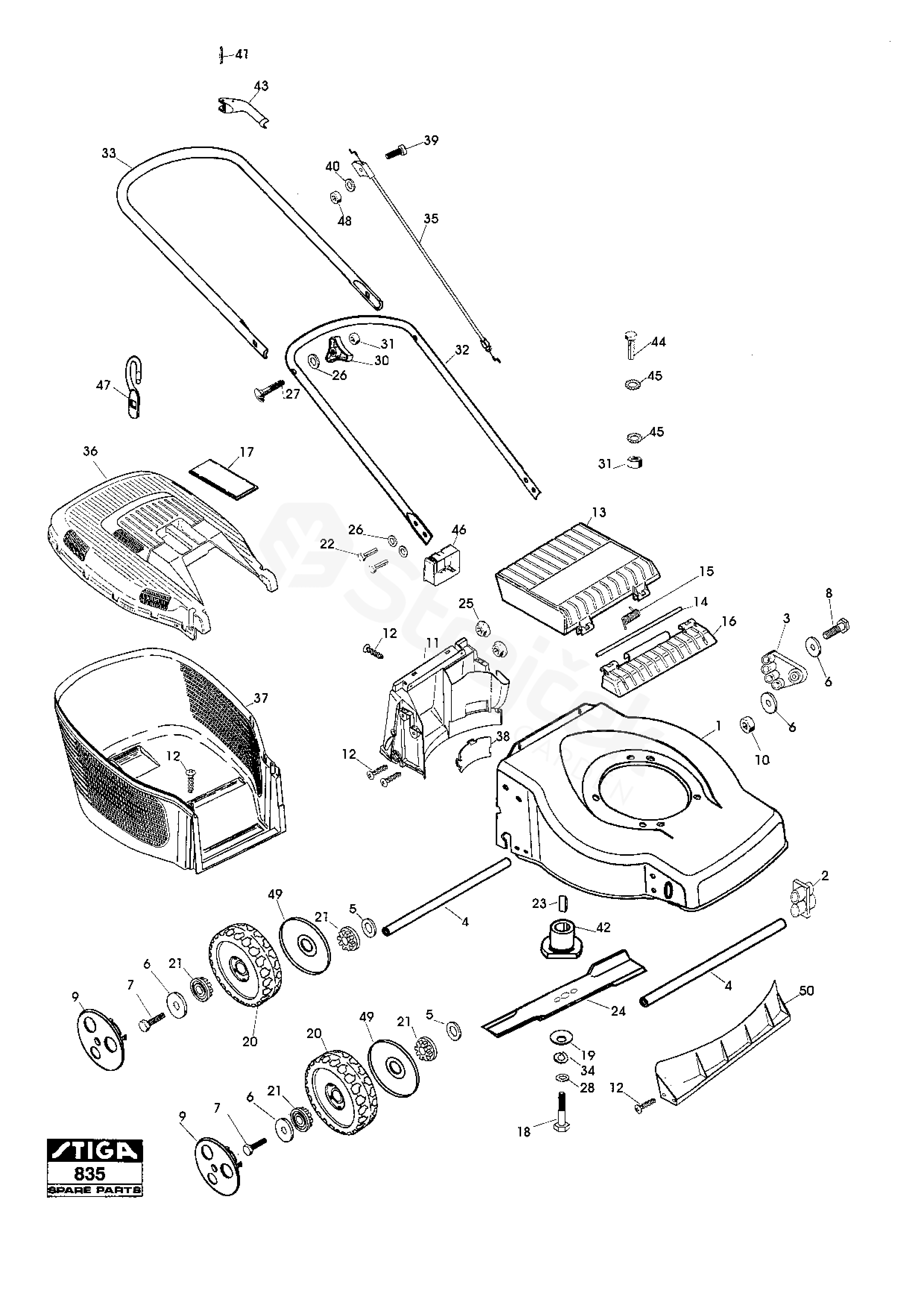

COLLECTOR 45 COLLECTOR 45 (1997) [24-4231-13]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For COLLECTOR 45 (1997) [24-4231-13]

1	Yellow Deck	1117-1316-01
2	Wheel Axle Bushing	1117-1208-01
3	Wheel Axle Bushing	1117-1209-01
4	Wheel Shaft	1117-1227-01
5	Washer	9699-0036-02
6	Washer	1117-1175-01
7	Screw	9997-0614-16
8	Screw	9997-0620-16
9	Hub Cap	1111-2804-01
10	Lock Nut	9747-0631-02
11	Baffle-rear	1117-1146-01
12	Screw	9836-9516-12
13	Rear Flap (Yellow)	1117-1156-01
14	Shaft For Rear Flap	1117-1143-01
15	Spring-Rear Flap	1117-1126-01
16	Rear Flap Fixation (Yell)	1117-1155-01
17	Cap For Grassbag-Yellow	1117-1135-01
18	Screw	9987-5251-12
19	Elastic Washer	1117-1243-01
20	Wheel	1117-1167-01
21	Bushing	1117-1193-01
22	Screw	9997-0820-16
23	Key	9600-0014-00
24	Blade	1117-1203-01
25	Nut	1117-1131-01
26	Washer	9699-0028-02
27	Screw	9898-0845-12
28	Washer	9699-0035-02
30	Knob	1117-1108-01
31	Nut	9799-0831-02
32	Handle tube-lower	1117-1149-01
33	Handle-upper part	1117-1221-01
34	Washer	9683-0040-02
35	Cable, Thread Engine Brake	1117-1134-01
36	Grass Bag Cover, Yellow	1117-1157-01
37	Lower Grass Bag (Black)	1117-1218-01
38	Cap	1117-1148-01
39	Screw	9948-0635-16
40	Washer	9699-0025-02
41	Locating Pin	9595-0258-00
42	Blade mount	1117-1201-01
43	Opc Lever	1117-1177-01
44	Screw	9997-0830-16
45	Lock washer	9678-0009-02
46	Battery Holder	1111-2927-01
47	USE 1117-1392-01	1117-1116-01
48	Nut	9799-0631-02
49	Protection, Wheel	1117-1161-01
50	Baffle-front	1117-1270-01
