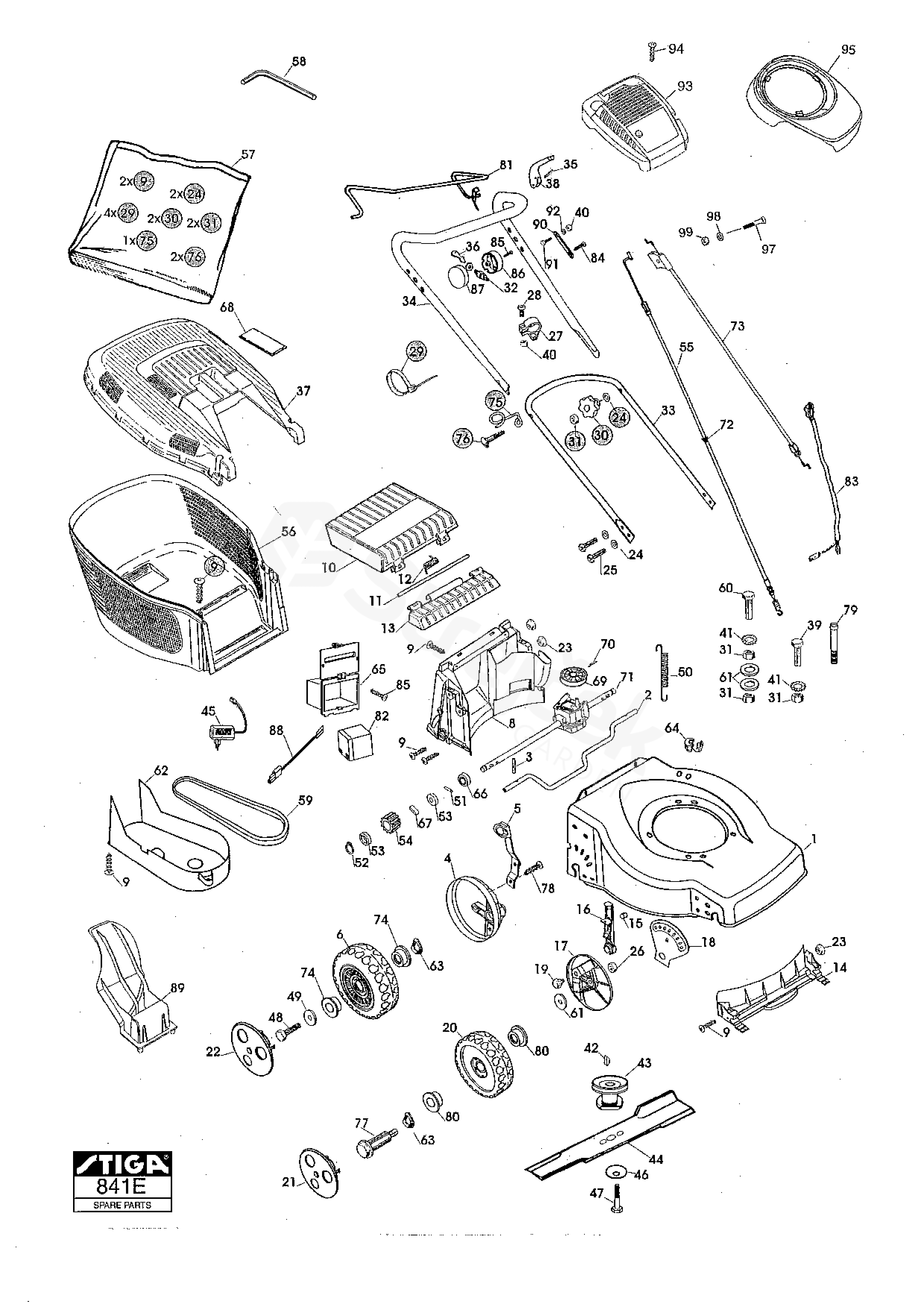

COLLECTOR 45 S COMBI COLLECTOR 45 S COMBI (2003) [24-4381-09]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For COLLECTOR 45 S COMBI (2003) [24-4381-09]

1	Yellow Deck	1117-1308-01
2	Shaft-Backside	1117-1160-01
3	Locating Pin	9595-0212-00
4	Wheel Cover	1117-3256-01
5	Lever, Height Adjustment	1117-1174-01
6	Wheel Inkl. pos 74	1111-2665-01
8	Rear Baffle	1117-3008-01
9	Screw	9836-9516-12
10	Rear Flap (Yellow)	1117-1156-01
11	Shaft For Rear Flap	1117-1143-01
12	Spring-Rear Flap	1117-1126-01
13	Rear Flap Fixation (Yell)	1117-1155-01
14	Front Baffle	1117-3007-01
15	Pin	1117-1215-01
16	Lever, Height Adjustment Inkl. pos 15	1117-1228-01
17	Wheel Plate	1117-1376-01
18	Sector	1117-1213-01
19	Shoulder Bolt	1117-1182-01
20	Wheel	1111-3163-01
21	Hub Cap	1111-2804-01
22	Hub Cap	1111-2815-01
23	Nut	1117-1131-01
24	Washer	9699-0028-02
25	Bolt	1117-1364-01
26	Nut	9716-0831-02
27	Support	1117-1114-01
28	Screw	9865-0616-16
29	Cable Holder	9579-0008-00
30	Knob	1117-3194-01
31	Nut	9799-0831-02
33	Handle tube-lower	1117-1149-01
34	Handle, Upper Part	1117-1095-01
35	Locating Pin	9595-0258-00
37	Grass Bag Cover, Yellow Inkl. pos 68	1117-1157-01
38	Opc Lever (Red)	1117-3221-01
39	Screw 30 mm	9997-0830-16
40	Nut	9799-0631-02
41	Lock washer	9678-0009-02
42	Key	9600-0014-00
43	Blade Hub	1111-9074-01
44	Blade	1111-9116-01
46	Spring washer	1117-1065-01
47	Screw	9987-5251-12
48	Screw	9997-0614-16
49	Washer	1117-1175-01
50	Spring	1117-1120-01
51	Pin	9591-0011-00
52	Circlip	1117-1083-01
53	Washer	1111-2830-01
54	Gear Wheel	1111-3075-01
55	Clutch Cable Inkl. pos 72	1117-1190-01
56	Lower Grass Bag (Black)	1117-1218-01
57	Assy Kit	1117-3030-01
58	Socket Wrench	1117-1355-01
59	V-Belt	1111-9114-01
61	Washer	9699-0062-02
62	Belt cover	1117-1147-01
63	Washer	9694-0003-00
65	Battery Holder	1111-2927-01
66	Ball Bearing	9549-0053-00
67	Drive Key Es 46 Tr	1111-2827-01
68	Cap For Grassbag-Yellow	1117-1135-01
69	Pulley	1117-3018-01
70	Pin	1111-2382-01
71	Transmission assy Inkl. pos 69, 70	1117-3376-01
72	Grommet	1134-3203-04
73	Opc Cable	1117-1183-01
74	Ball Bearing	1111-3296-01
75	USE 1117-1392-01	1117-1116-01
76	Screw	9898-0855-12
77	Wheel Bolt	1111-3164-01
78	Screw	9836-9512-12
79	Bolt M8 x 40	1117-1268-01
81	Lever	1117-1374-01
89	Mulch Plug (Yellow)	1117-3001-01
93	Engine Cover Black	1111-3287-01
94	Screw	9828-7942-12
97	Screw	9948-0635-16
98	Washer	9699-0025-02
