Spare parts > STIGA > Lawn Mower > COLLECTOR 46 S COLLECTOR 46 S (2007) [24-3834-13] > Blade
Back to
Blade
COLLECTOR 46 S COLLECTOR 46 S (2007) [24-3834-13]

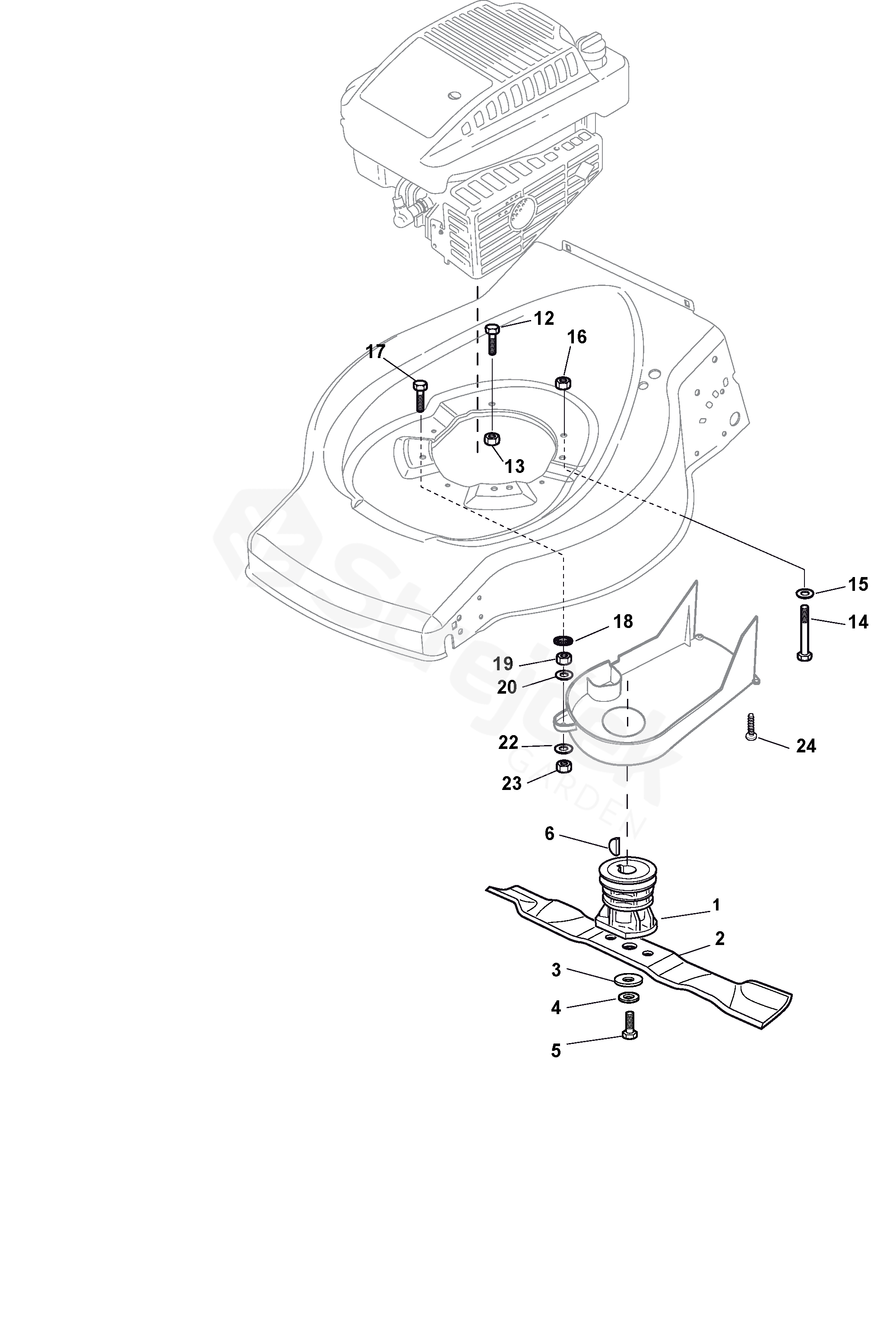

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COLLECTOR 46 S (2007) [24-3834-13]
1 Hub With Pulley, Crankshaft Ø 22.2 122465607/3
2 Mulching Blade 181004121/0
3 Elastic Disc 122160400/0
4 Washer 112523080/0
5 Screw 112735698/0
6 Key 112139100/0
12 Screw 112691100/0
13 Nut 112293201/0
15 Washer 112521350/0
16 Nut 112155000/0
17 Screw
ST. 150-196cc 		112691115/0
18 Washer 112540060/0
19 Nut 112293200/0
20 Washer 122671651/0
22 Antifriction Washer 325670011/0
24 Screw 112728686/0
