Spare parts > STIGA > Lawn Mower > COLLECTOR 46 S COLLECTOR 46 S (2019) [299274648/S14] > Blade
Back to
Blade
COLLECTOR 46 S COLLECTOR 46 S (2019) [299274648/S14]
Hover mouse on parts list
Wheel: Zoom, left button: Movement

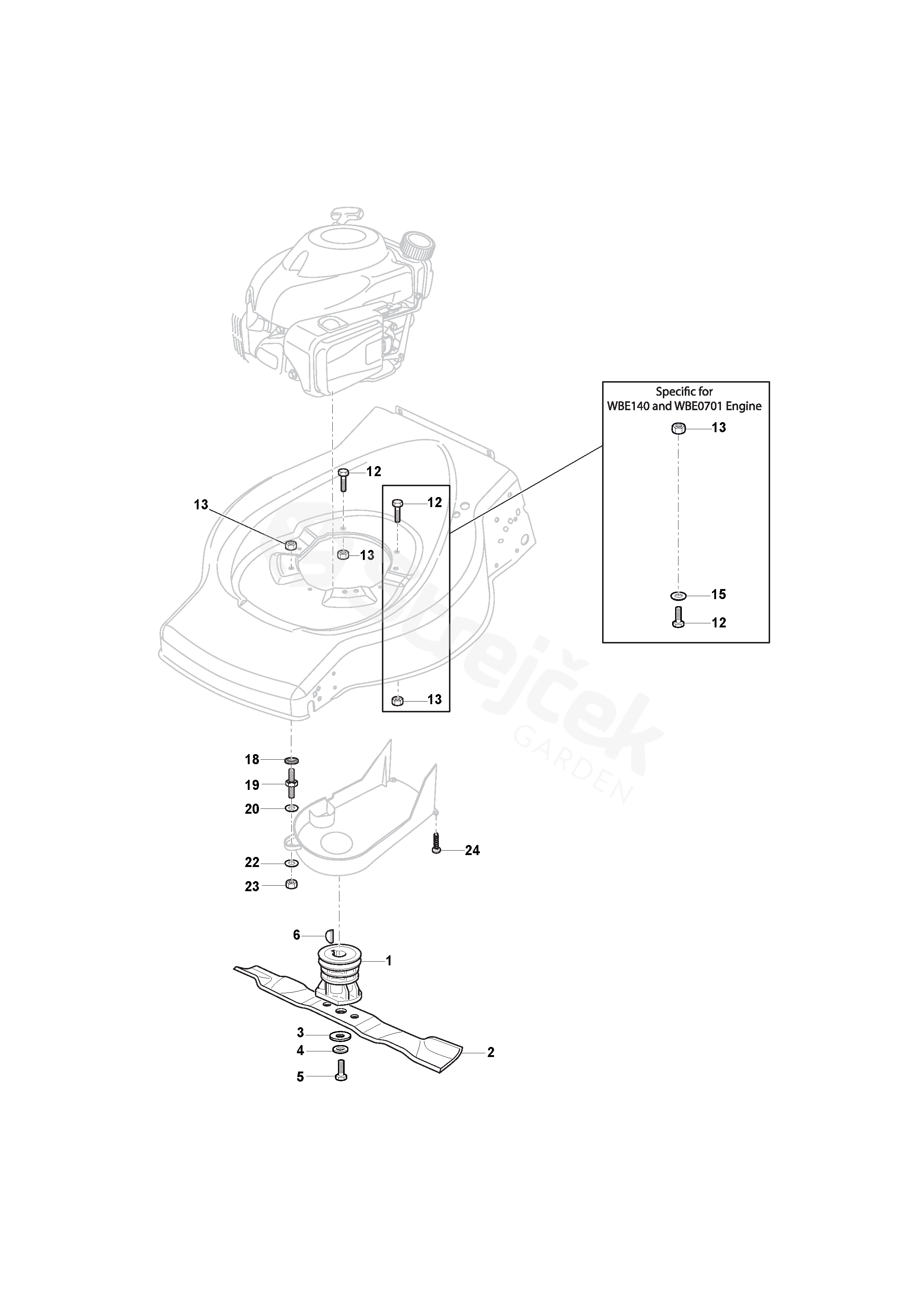

Other parts For COLLECTOR 46 S (2019) [299274648/S14]
1 Hub With Pulley, Crankshaft Ø 22.2 122465607/4
2 Mulching Blade 181004365/3
3 Elastic Disc 122160400/0
4 Washer 112523080/0
5 Screw 112735698/0
6 Key 112139100/0
12 Screw 112691100/0
13 Nut 112154210/0
15 Washer
Specific for WBE140 and WBE0701 Engine 		112521350/0
18 Washer 112543002/0
19 Screw 122943018/0
20 Washer 122671651/0
22 Antifriction Washer 325670011/0
24 Screw 112728686/0
