Spare parts > STIGA > Lawn Mower > COLLECTOR 46 S ROLLER COLLECTOR 46 S ROLLER (2003) [23-3381-12] > Roller
Back to

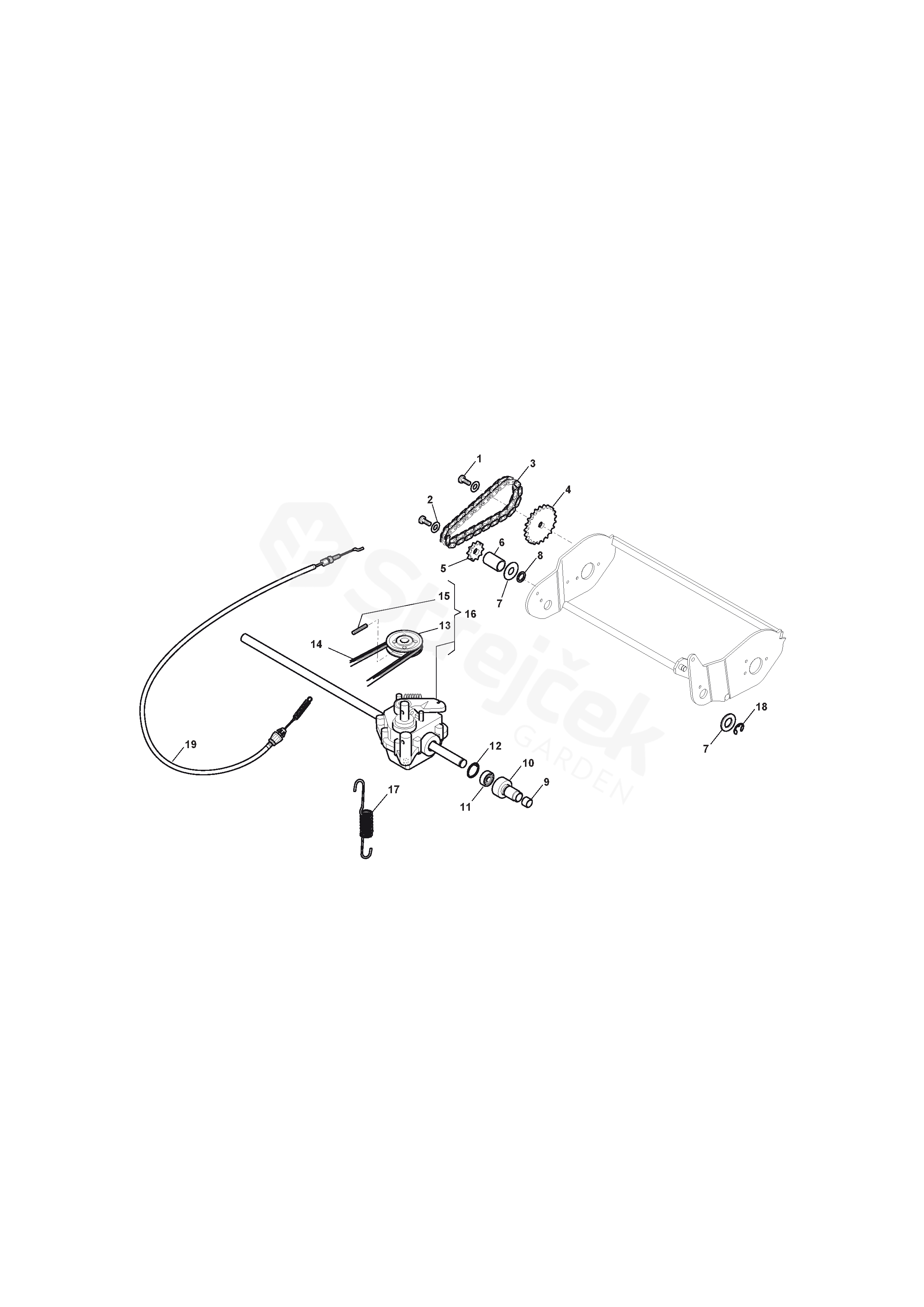

Roller
COLLECTOR 46 S ROLLER COLLECTOR 46 S ROLLER (2003) [23-3381-12]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COLLECTOR 46 S ROLLER (2003) [23-3381-12]
1 Screw 112735593/0
2 Washer 112523040/0
3 Chain 115189003/0
4 Ring Gear 122120106/0
5 Ring Gear 122120107/0
6 Spacer 122170970/0
7 Antifriction Washer 322672151/0
8 Washer 321660100/0
9 Brass 322038404/0
10 Gear Box Support 322785126/0
11 Bearing 119216035/0
12 Snap Ring 112610095/0
13 Pulley
From 01-September-2010 		122601904/0
14 Trapezoidal Belt 135063800/0
15 Elastic Pin 112645705/0
16 F.R. Gear Box Roller
From 01-September-2011 		181003077/0
17 Brake Spring 125430220/0
18 Benzing Ring
To 31-August-2006 		112000957/0
19 Cable Rear Drive 381000668/0
