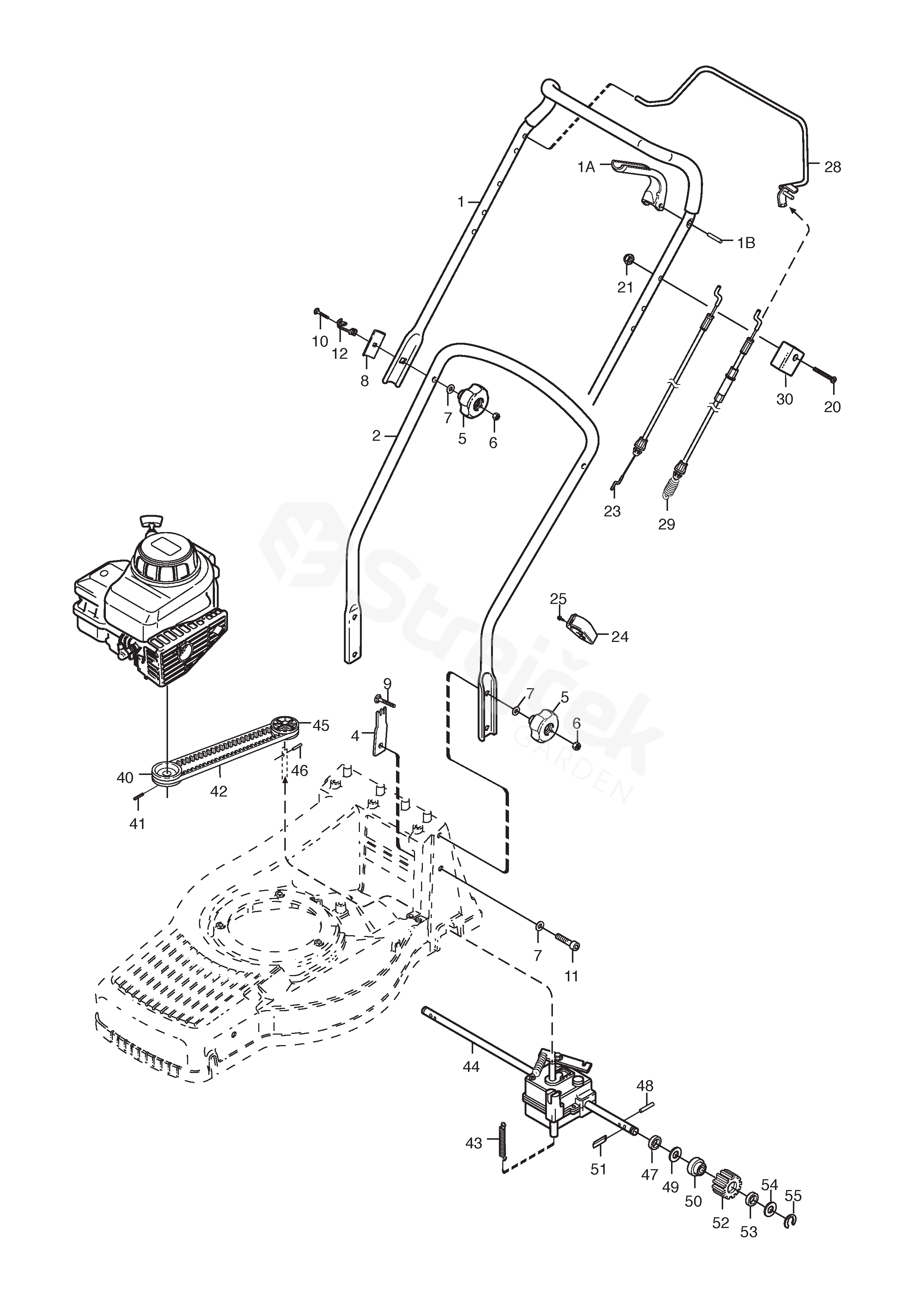

Spare parts - Partlist - COLLECTOR 48 S COLLECTOR 48 S (2004) - Handle, Upper Part

Everything for your machines

COLLECTOR 48 S COLLECTOR 48 S (2004)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For COLLECTOR 48 S (2004)

1	Handlebar-Upper Part Inkl. pos 1A, 1B	1117-3005-01
2	Handlebar-lower part	1111-3248-01
4	Attachment plate	1111-3024-01
5	Locking Knob	1111-3023-01
6	Nut	9795-3531-02
7	Washer	9699-0028-02
8	Reinforcement	1111-0178-00
9	Screw L = 38 mm	9899-3538-16
10	Screw L = 57 mm	9899-3557-12
11	Screw	9939-0820-16
12	Eyelink	1111-3062-01
20	Screw	9948-0640-16
21	Lock Nut	9747-0631-02
23	Cable, Thread Engine Brake	1111-3250-03
24	Cable Holder	1111-2018-01
25	Screw	9836-9216-12
28	Lever	1117-1374-01
29	Clutch Cable	1111-3387-01
30	Cable Holder	1111-2969-01
40	Engine Belt Pulley	1111-2915-01
41	Screw	9910-0612-16
42	V-Belt	1111-9061-01
43	Tension Spring	1111-2822-01
44	Transmission Turbo 48/55	1111-3393-01
45	Belt Pulley	1111-3440-01
46	Pin	9595-0235-00
47	Seal Ring	9404-0083-00
48	Pin	1111-2382-01
49	Washer	9695-0013-00
50	Washer	1111-2829-01
51	Key	1111-3256-01
52	Gear Wheel	1111-3075-01
53	Washer	1111-2830-01
54	Washer	9695-0013-00
55	Circlip	9652-0010-04
1A	Opc Lever (Red)	1117-3221-01
1B	Locating Pin	9595-0258-00
