Spare parts > STIGA > Lawn Mower > COLLECTOR 48 S COMBI COLLECTOR 48 S COMBI (2003) > Wheels And Height Adjusting
Back to

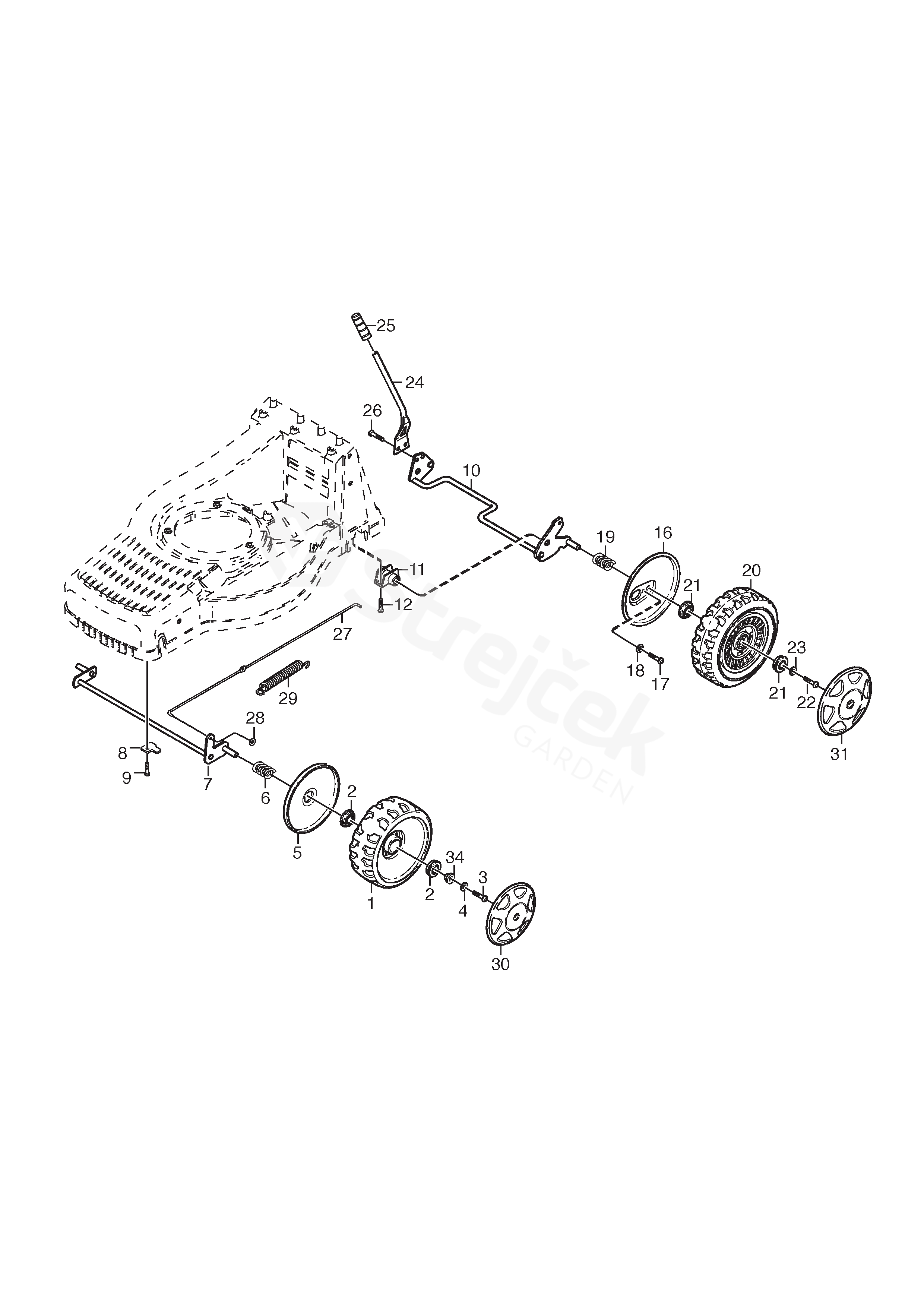

Wheels And Height Adjusting
COLLECTOR 48 S COMBI COLLECTOR 48 S COMBI (2003)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COLLECTOR 48 S COMBI (2003)
1 Wheel 1111-3163-01
2 Ball Bearing 9549-0053-00
3 Screw 9943-0620-16
5 Protection, Wheel 1117-1161-01
6 Spring-Wheel Axle 1111-1138-01
7 Front Axle 1111-2805-01
8 Clamp 1111-1504-01
10 Rear axle 1111-2808-01
11 Bushing 1111-2814-01
12 Screw 9947-0616-16
16 Cover Plate 1111-3395-01
17 Screw 9943-0610-16
18 Washer 9699-0060-02
19 Spring 1111-3060-01
20 Wheel 1111-2665-01
21 Ball Bearing 1111-3296-01
22 Screw 9943-0612-16
23 Flat washer 9699-0100-02
24 Lever, Height Adjustment 1111-2816-01
25 Lever Knob 1111-2817-01
27 Rod, Height Adjustment 1111-2818-01
28 Starlock 9675-0011-00
29 Spring 1111-2819-01
30 Hub Cap (175) Yellow 1111-3084-01
31 Hub Cap (190) Yellow 1111-3085-01
34 Spacer 1111-2423-01
