STIGA
>
Lawn Mower
>
COLLECTOR 53 S COMBI COLLECTOR 53 S COMBI (2003) [23-5286-12]
>
Chassis/Handle, Upper Part
Back to
COLLECTOR 53 S COMBI
COLLECTOR 53 S COMBI (2003) [23-5286-12]

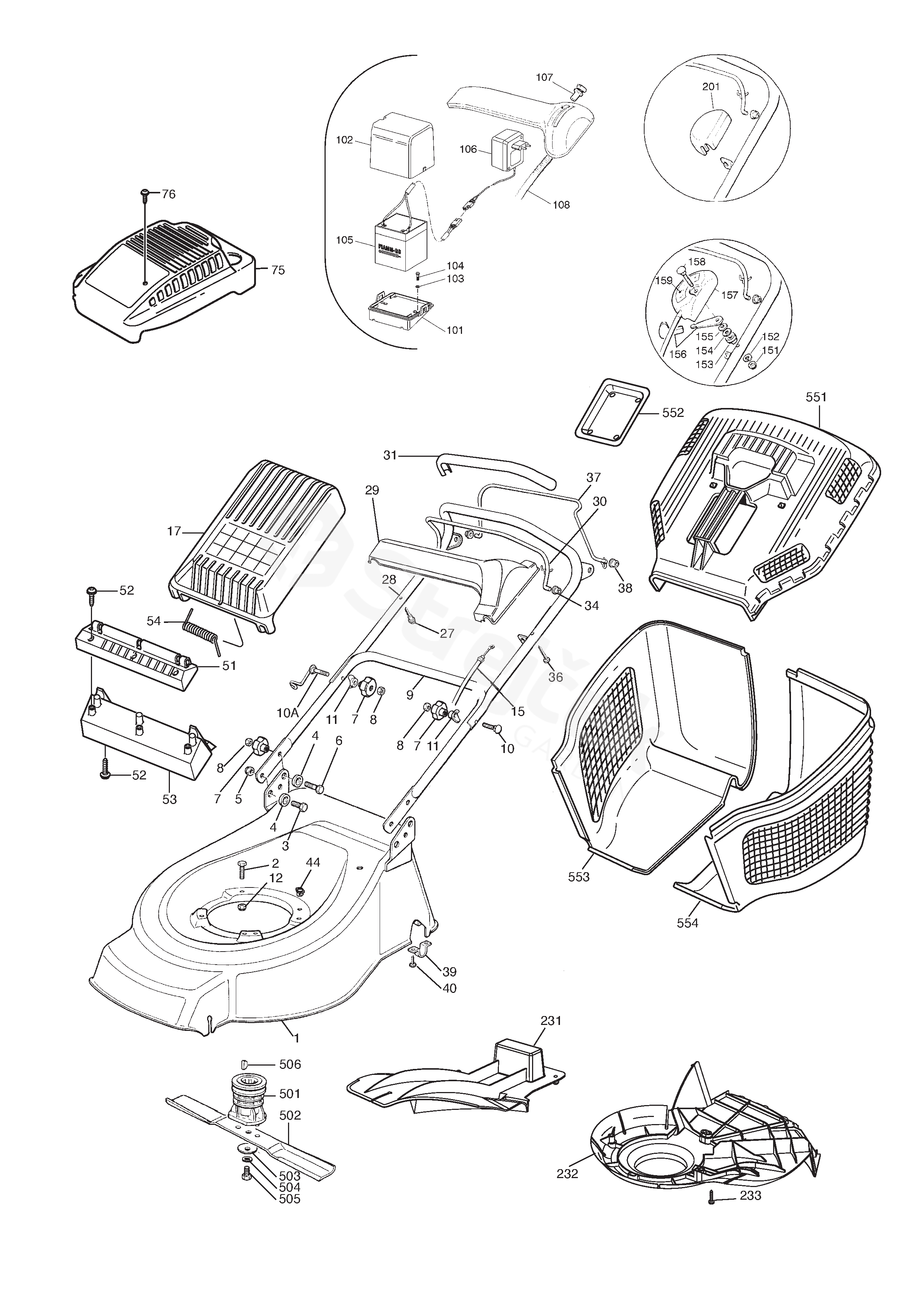

Chassis/Handle, Upper Part
COLLECTOR 53 S COMBI
COLLECTOR 53 S COMBI (2003) [23-5286-12]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
COLLECTOR 53 S COMBI (2003) [23-5286-12]
1
Green Deck
JP53
1136-0733-01
2
Screw
L = 60 mm _ JP53
9997-0860-16
3
Screw
9997-0816-16
4
Bushing
1136-0637-01
5
Nut
9747-0831-02
6
Screw
1136-0617-01
7
Knob
1117-3194-01
8
Nut
9799-0831-02
9
Handle-Lower
1136-1193-01
10
Screw
1136-0620-01
11
Washer
1136-0693-01
12
Nut
9739-0831-22
15
Cable, Thread Engine Brake
JP53
1136-0718-01
17
Stone Guard, Yellow
JP53
1111-3283-01
28
Handle-Upper
1136-0763-01
30
Lever, Thread Engine Brake
1136-0746-01
31
Hand Grip-Black
1136-1191-01
34
Bushing
1136-0640-01
37
Drive Lever
1136-0745-01
38
Bushing
1136-0639-01
39
Plate
1136-0682-01
40
Screw
9847-8119-16
44
Rubber Insert
1136-0665-01
51
Fulcrum-Yellow
JP53
1136-0703-01
52
Screw
9836-9525-12
53
Bag Holder-Black
JP53
1136-0704-01
54
Spring
1111-2792-01
231
Deflector
1136-0656-01
232
Protection
1136-0645-01
233
Screw
1136-0615-01
501
Blade Holder W.Pulley
JP53
1136-0674-01
502
Blade
JP53
1111-9122-01
503
Elastic Washer
1136-0083-01
504
Washer
1136-0015-01
505
Screw
1136-0616-01
506
Key
9600-0014-00
551
Collector-Upper Part (Yellow)
JP53
1111-2840-01
552
Cover
1111-2764-01
553
COLLECTOR-LOWER PART RIGHT
1111-2842-02
554
COLLECTOR-LOWER PART LEFT
1111-2841-02
10A
Screw
1136-0747-01
