Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Lawn Mower
>
COMBI 46 COMBI 46 (2009)
>
ST.-Engine Sa 45 (140 Cc)
Back to
COMBI 46
COMBI 46 (2009)
ST.-Engine Sa 45 (140 Cc)
COMBI 46
COMBI 46 (2009)

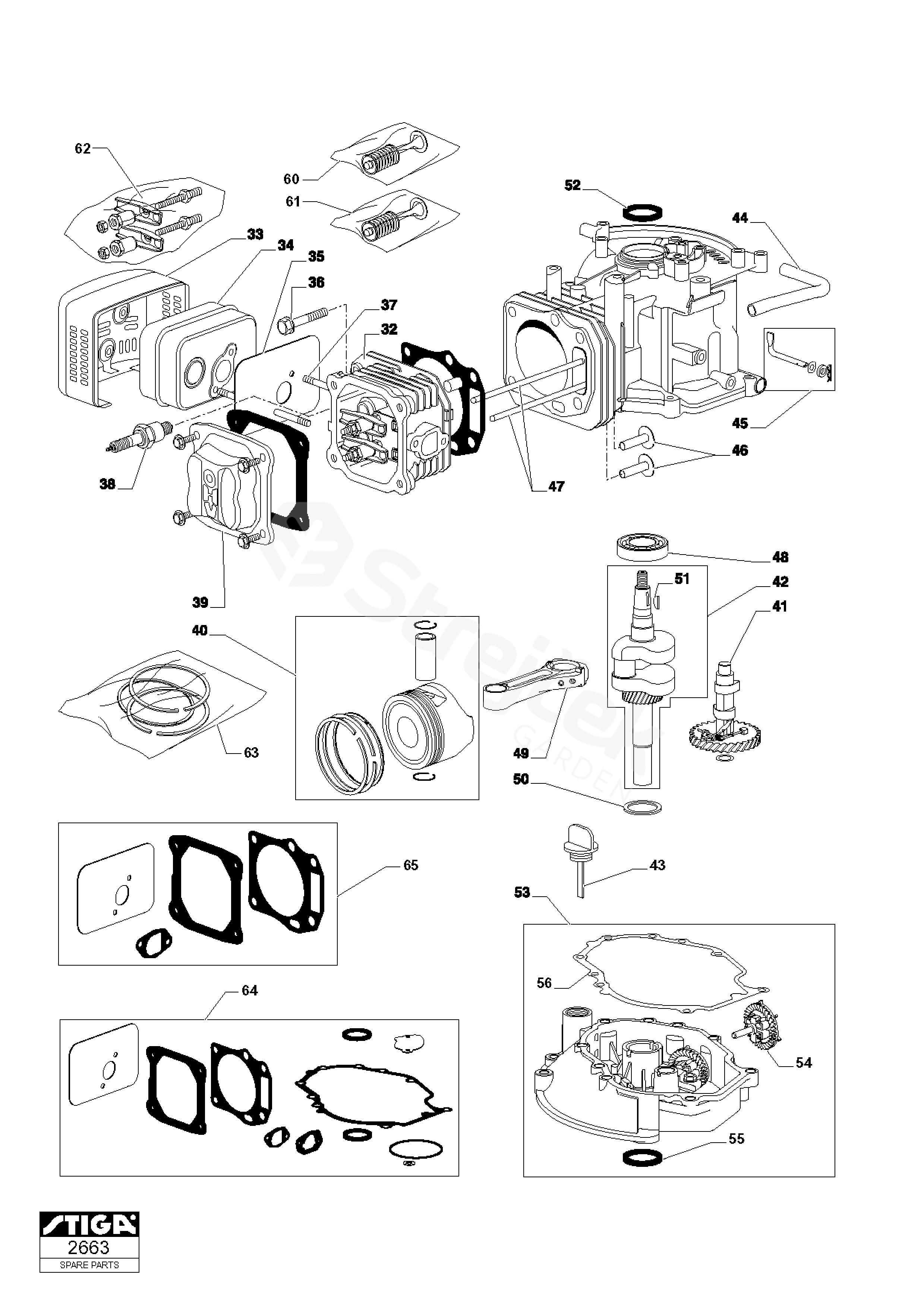

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
COMBI 46 (2009)
32
Cylinder Head Assy
SA45
118550244/0
33
Muffler Guard
SA45
118550268/1
34
Muffler
SA45
118550269/0
35
Muffler Gasket
SA45
118550270/0
36
Screw
SA45
118550297/0
37
Stud Bolt
SA45
118550298/0
38
Spark Plug
Champion RC12YC _ SA45
9400-0244-00
39
Cover Comp., Head
SA45
118550296/1
40
Piston Assy
SA45
118550387/0
41
Camshaft Assy
SA45
118550271/0
42
Crankshaft
Inkl. pos 51 _ SA45
118550385/0
43
Tank Cap
SA45
118550381/0
44
Breather Fuel Pipe
SA45
118550377/0
45
Shaft, Governor Arm Assy
SA45
118550308/0
46
Valve Lifter Assy
SA45
118550291/0
47
Push Rods Assy
SA45
118550289/0
48
Ball Bearing
SA45
118550280/0
49
Connecting Rod Assy
SA45
118550284/0
50
Washer
SA45
118550283/0
51
Woodruff Key
SA45
118550288/0
52
Oil seal
SA45
118550300/0
53
Crankcase Cover Assy
Inkl. pos 54 - 56 _ SA45
118550382/0
54
Speed Governor Assy
SA45
118550312/0
55
Oil seal
SA45
118550379/0
56
Crankcase Gasket
SA45
118550380/0
60
Intake Valve Assy
SA45
118550292/0
61
Exhaust Valve Assy
SA45
118550294/0
62
Valve Arm Set
SA45
118550273/0
63
Piston, Ring Set
SA45
118550384/0
64
Engine Gasket Set
SA45
118550403/0
65
Cylinder Head Gasket Set
SA45
118550405/0
