STIGA
>
Lawn Mower
>
COMBI 48 S COMBI 48 S (2005)
>
Chassis Handle
Back to
COMBI 48 S
COMBI 48 S (2005)
Chassis Handle
COMBI 48 S
COMBI 48 S (2005)

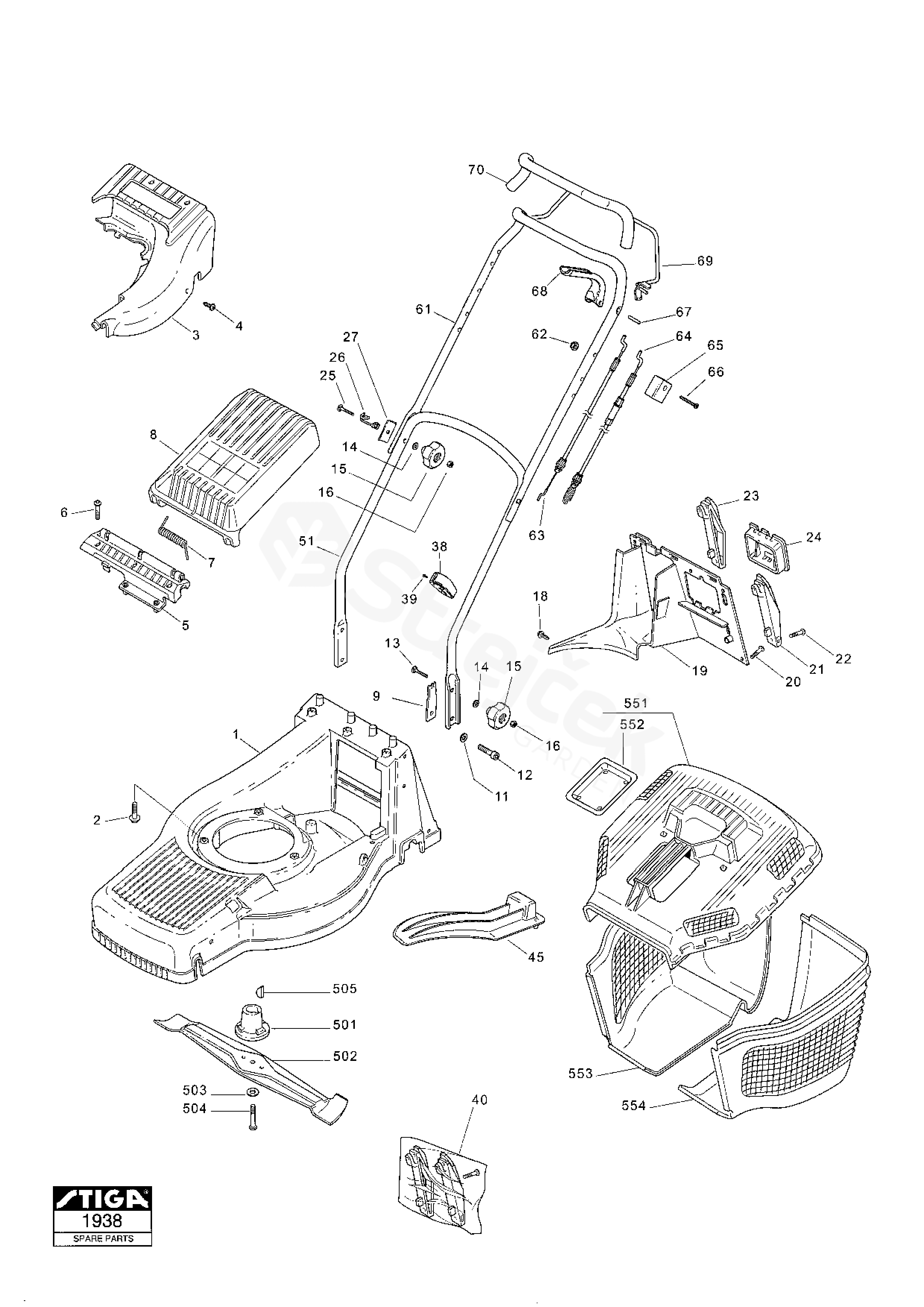

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
COMBI 48 S (2005)
1
Chassis, Yellow
1111-3090-01
2
Screw
9955-3732-12
3
Cover (Yellow)
1111-2794-01
4
Screw
9838-9522-12
5
Flap Attachment
1111-2793-01
6
Screw
9947-0616-16
7
Spring
1111-2792-01
8
Stone Guard, Yellow
1111-3283-01
9
Attachment plate
1111-3024-01
11
Washer
9699-0028-02
12
Screw
9939-0820-16
13
Screw
9899-3557-12
14
Washer
9699-0028-02
15
Locking Knob
1111-3023-01
16
Nut
9795-3531-02
18
Screw
9838-9522-12
19
Rear Attachment (Combi 48-55)
1111-3335-01
20
Screw
9947-0616-16
21
Attachment L.H.
1111-3236-01
22
Screw
9836-9520-12
23
Attachment R.H.
1111-3237-01
24
Battery Holder
1111-2927-01
25
Screw
9899-3557-12
26
Eyelink
1111-3062-01
27
Reinforcement
1111-0178-00
38
Cable Holder
1111-2018-01
39
Screw
9836-9216-12
40
Accessory Bag
1111-3569-01
45
Mulch Plug (Combi 48)
1111-3333-01
51
Handlebar-lower part
1111-3248-01
61
Handle, Upper Part
1117-1095-01
62
Lock Nut
9747-0631-02
63
Cable, Thread Engine Brake
1136-1914-01
64
Clutch Cable
1111-3387-01
65
Cable Holder
1111-2969-01
66
Screw
9948-0640-16
67
Locating Pin
9595-0258-00
68
Opc Lever (Red)
1117-3221-01
69
Lever
1117-1374-01
70
Foam Grip-Handlebar
1117-3036-01
501
Blade Hub
1111-9070-01
502
Blade
1111-9090-01
503
Washer
9696-0011-01
504
Screw
9987-5251-12
505
Key
9600-0014-00
551
Collector-Upper Part (Yellow)
1111-2840-01
552
Cover
1111-2764-01
553
Collector, Lower Rh
1111-2842-10
554
Collector, Lower Lh
1111-2841-10
