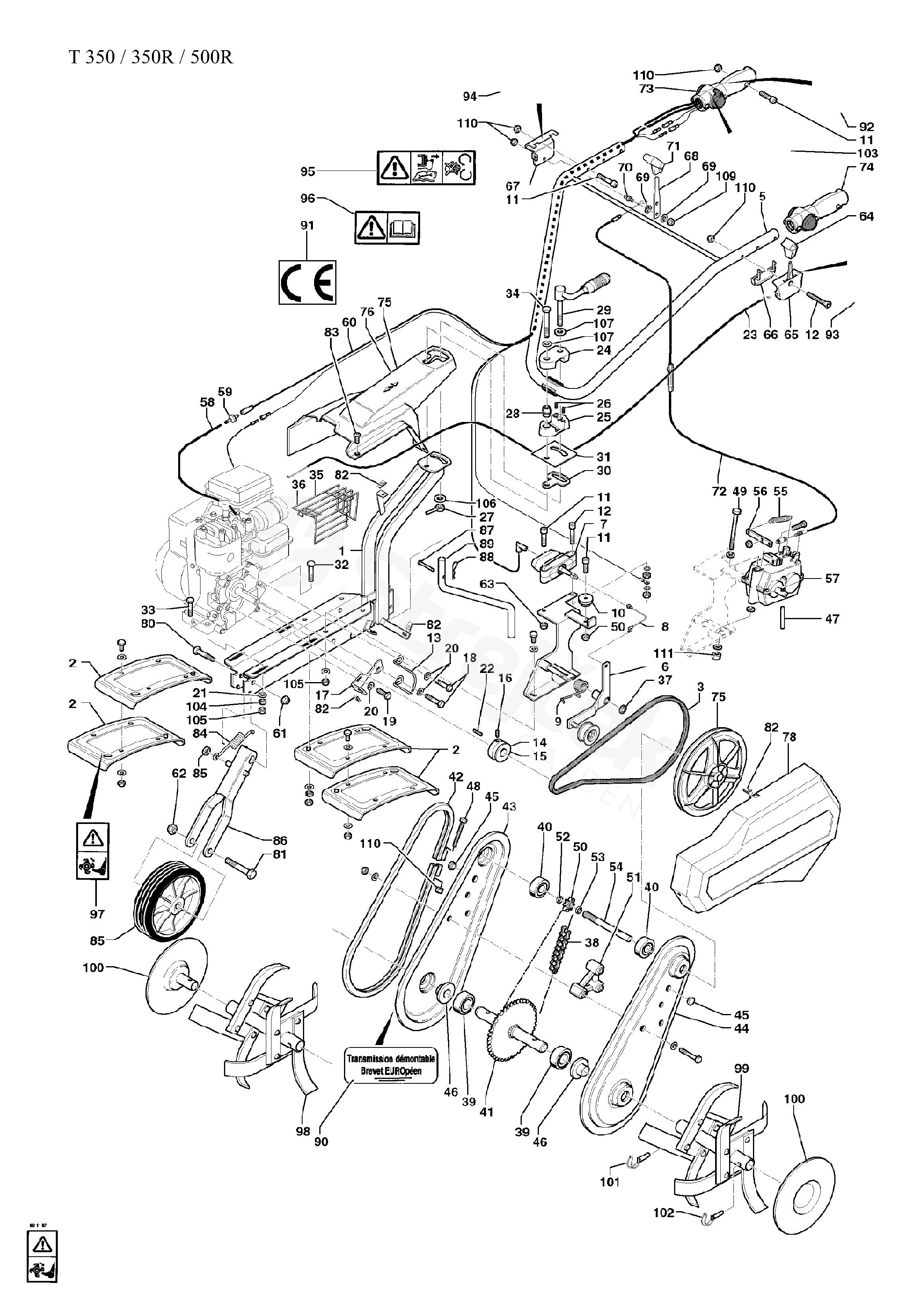

Spare parts - Partlist - T350 T350, 1998-06 - PRODUCT COMPLETE

Everything for your machines

T350 T350, 1998-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For T350, 1998-06

1	CHASSIS	519653076
2	GUARD	519650281
3	BELT	519653058
4	BELT	519653059
5	HANDLE	519653077
6	LEVER	519653079
7	PUMP	519653061
8	CABLE	519653056
9	SPRING	519653090
10	ROLLER	519653052
11	SCREW	519653026
12	SCREW	519653047
13	BELT GUIDE	519653017
14	PULLEY	519653068
15	ROLLER	519651290
16	SCREW	728692300
17	OPĚRNÁ MISKA	519650510
18	SCREW	519002467
19	SCREW	519006425
20	PODLOŽKA	734116301
21	WASHER	519653097
22	KEY	519653021
23	CABLE	519653102
24	HOLDER	519653031
25	HOLDER	519653032
26	SPRING	519653035
27	MATICE	519653038
28	NUT	519653033
29	LEVER	519653073
30	PLATE	519650290
31	HOLDER	519006514
32	SCREW EHHM	725245951
33	SCREW EHHM	725245951
34	SCREW	519653039
35	PROTECTOR	519651160
36	GRATE	519006471
37	WASHER	519653098
38	CHAIN	519653009
39	BEARING	519653053
40	BALL BEARING	519002631
41	ŘETĚZKA	519653007
42	RING	519653043
43	HOUSING	519653041
44	HOUSING	519653042
45	PIN RETAINING SCREW	519653093
46	SPACING SLEEVE	519653072
47	SHAFT	519653067
48	SCREW	519653010
49	SCREW	519653045
50	PINION	519653057
51	ROZPĚRKA	519653006
52	SPACER	519653095
53	SPACER	519653094
54	SHAFT	519653065
55	SPRING	519653054
56	CONTROL	519653071
57	GEAR	519653092
58	HOSE	519653063
59	VALVE	519653100
60	HOSE	519653062
61	HEXAGON LOCKING NUT	732252001
62	SCREW EHHM	725255051
63	MATICE	519000760
64	KNOB	516836515
65	THROTTLE TRIGGER	519002842
66	PÁČKA PLYNU	519649471
67	CONTROL	519653080
68	LEVER	519653070
69	WASHER	519653049
70	SHAFT	519653066
71	HANDLE	519653091
72	CABLE	519653055
73	HANDLE	519653050
74	HANDLE	519653051
75	PULLEY	519653060
76	HOOD	519653082
77	HOOD	519653075
78	COVER	519653074
80	SCREW	516653046
81	HEXAGON LOCKING NUT	732252201
82	MATICE	519650300
83	SCREW CRPANT	729541201
84	PRUŽINA	519650260
85	KOLO	519653000
86	HOLDER	519653002
87	PIN RETAINING SCREW	519651210
88	PIN RETAINING SCREW	519651220
89	TAIL-SKID	519653078
90	LABEL	519653044
92	LABEL	519653085
93	DECAL	519653101
94	LABEL	519653084
97	DECAL	519653096
98	HROT LEFT	519653028
99	HROT RIGHT	519653029
100	COVER	519653001
101	PIN RETAINING SCREW	519653093
102	PIN RETAINING SCREW	519653027
103	DECAL	519653103
104	WASHER	519000995
105	POUZDRO	519000007
106	HEXAGON NUT	734117201
107	PODLOŽKA	519002841
109	NUT	519653104
110	HEXAGON LOCKING NUT	732261601
111	MATICE	519006200
