Spare parts > STIGA > Lawn Mower > COMBI 48 SEQ B Combi 48 SEQ B (2019) [2L0486528/ST1] > Height Adjusting
Back to

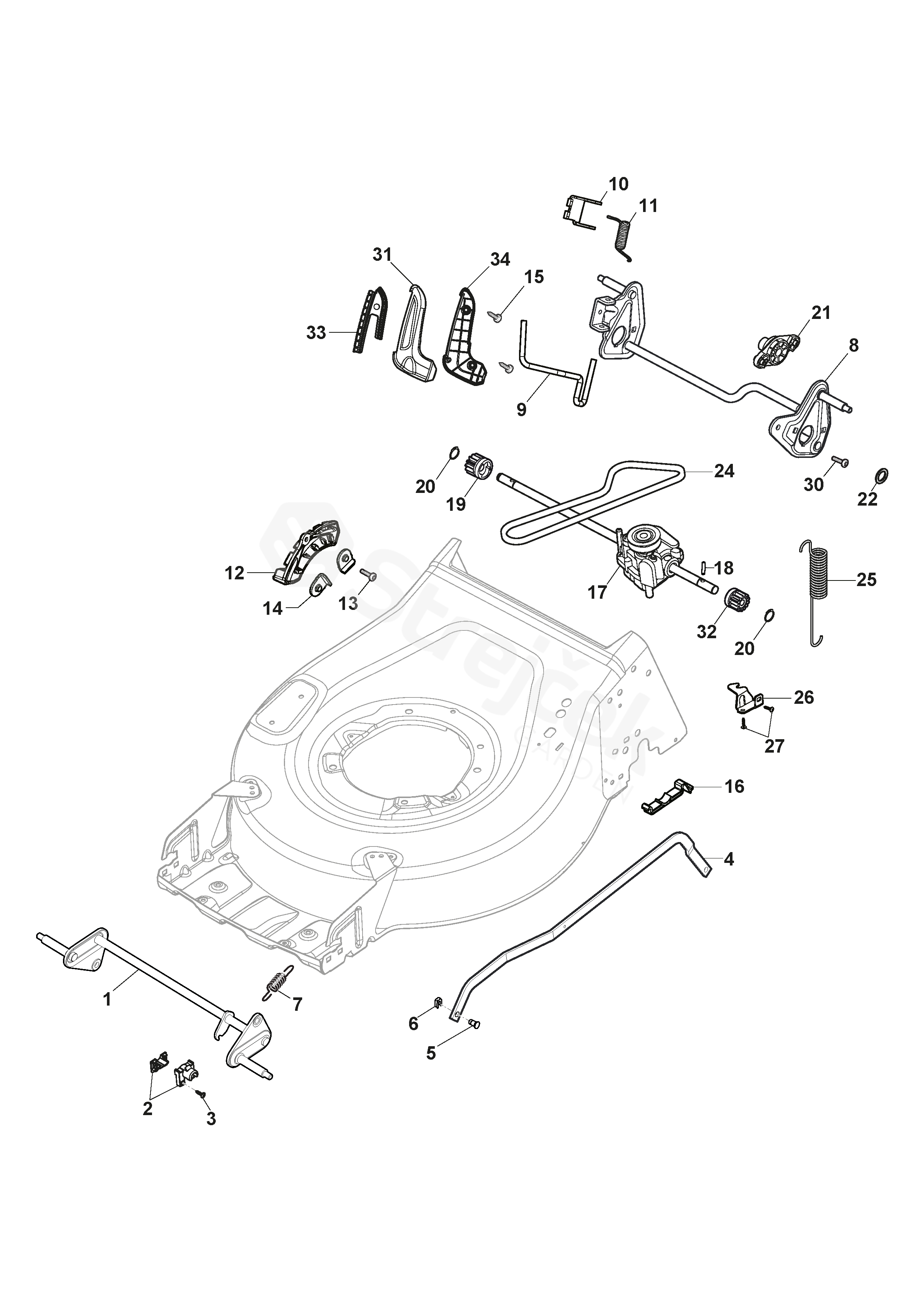

Height Adjusting
COMBI 48 SEQ B Combi 48 SEQ B (2019) [2L0486528/ST1]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Combi 48 SEQ B (2019) [2L0486528/ST1]
1 Axle, Front Wheels 381302935/1
2 Support 322785305/1
3 Screw 112728697/0
4 Rod, Height Adjustment 322869735/0
5 Pin 122519823/0
6 Plate 112436051/0
7 Spring 122450494/0
8 Rear Wheel Axle 381302849/1
9 Lever, Height Adjustment 322321555/2
10 Plate 322557181/0
11 Spring 122446198/1
12 Sector, Height Adjustment 322735608/0
13 Screw 112727802/0
14 Plate 322545232/0
15 Screw 112728696/0
16 Support 322785500/0
17 Gear Box
Cone Clutch 		181003114/0
18 Pin 122753000/0
19 Right Pinion 122570133/0
20 Seeger 112608600/0
21 Bushing 322042067/0
22 Washer 112521371/0
24 Trapezoidal Belt 135063800/0
25 Spring 122430254/0
26 Bracket 322778473/1
27 Screw 112728699/0
31 Upper Handgrip
Grey NCS S8000-N 		322394552/0
32 Left pinion 122570134/0
33 Handgrip 322394551/0
34 Lower Handgrip
Grey NCS S8000-N 		322394560/0
