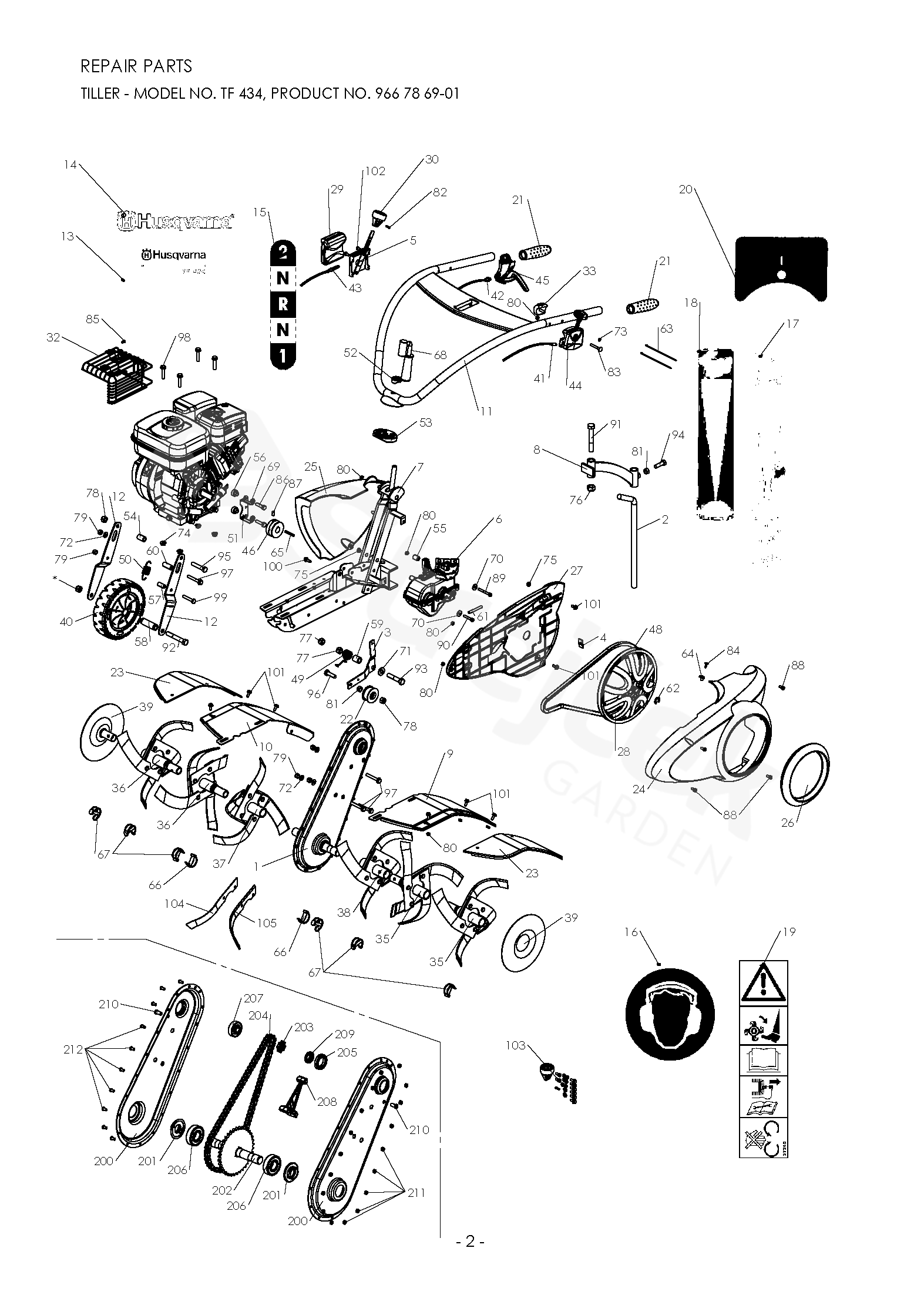

TF 434 TF 434, 966 78 69-01, 2012-01

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TF 434, 966 78 69-01, 2012-01

1	TRANSMISSION	580321001
2	PEN	544309301
3	PLATE	580321501
4	SNAP LOCKING	580322401
5	CONTROL	580321101
6	GEARBOX	580320901
7	FRAME	580322101
8	SUPPORT	580321401
9	GUARD	580321901
10	GUARD	580321801
11	HANDLEBAR	580322001
12	SUPPORT	580321601
13	STICKER	580320701
14	STICKER	580320601
15	LABEL	580320301
16	STICKER	577463301
17	DECAL	519646680
18	DECAL	531008251
19	DECAL	531008540
20	LABEL	501963701
21	GRIP	522992301
22	PULLEY	519653457
23	GUARD	580319601
24	COVER	580319501
25	COVER	580319401
26	DISC	580319201
27	INTERIOR	580319101
28	PULLEY	580319001
29	COVER	580318801
30	KNOB	580318701
32	GRILL	531008582
33	STOP SWITCH	531008558
35	TINE	531008522
36	TINE	531008523
37	TINE	531008521
38	TINE	531008520
39	COVER	519653362
40	WHEEL	580318201
41	THROTTLE CABLE	580317901
42	CABLE	577463701
43	CABLE	580317401
44	THROTTLE LEVER	577453001
45	LEVER	577547801
46	PULLEY	544243901
48	BELT	580316401
49	SPRING	519653090
50	DRAW SPRING	580315701
51	PULLEY	580315601
52	SPACER	580315201
53	SERVICE TOOLS	580315101
54	SPACER	580315001
55	SPACER	580314801
56	WASHER	580314701
57	SPACER	577520301
58	SPACER	575360801
59	SPACER	575360501
60	SPACER	575361001
61	SHAFT	519653067
62	RETAINER RING	580314201
63	COLLAR	544311101
64	CLIP	580314101
65	KEY	519653021
66	CLIP	577453601
67	CLIP	577453501
68	LEVER	544311501
69	WASHER	544314901
70	WASHER	531008390
71	WASHER	519653453
72	WASHER	544208101
73	WASHER	531008539
74	NUT	519653430
75	NUT	519653432
76	NUT	531008578
77	ECROU DE FREIN	752255051
78	NUT	519653458
79	NUT	544207901
80	HEXAGON LOCKING NUT	732261601
81	NUT	519653456
82	SCREW	580313801
83	SCREW	577453801
84	SCREW	519653426
85	SCREW	576145201
86	SCREW	531008586
87	SCREW	580313501
88	SCREW	580313401
89	SCREW	519653010
90	SCREW	580407801
91	BOLT	531008220
92	SCREW	519653131
93	SCREW	575361801
94	SCREW	544207701
95	SCREW	519653046
96	SCREW	519653455
97	SCREW	575361601
98	SCREW	519653413
99	SCREW	580313401
100	SCREW	576145401
101	SCREW	519653435
102	SCREW	580492901
103	TUBE	580493001
104	BLADE	531008547
105	BLADE	531008548
200	HOUSING	580321701
201	RING	531008576
202	BLADE SHAFT	580317001
203	PINION	519653057
204	CHAIN	580316301
205	BALL BEARING	580315901
206	BEARING	519653053
207	RING	531008546
208	SPACER	580315401
209	SPACER	580315301
210	INSERT	580313901
211	HEXAGON LOCKING NUT	732261601
212	SCREW	580313701
