Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
Cultivators
>
T40 M T40 M, 2014-01
>
PRODUCT COMPLETE
Back to
T40 M
T40 M, 2014-01
PRODUCT COMPLETE
T40 M
T40 M, 2014-01

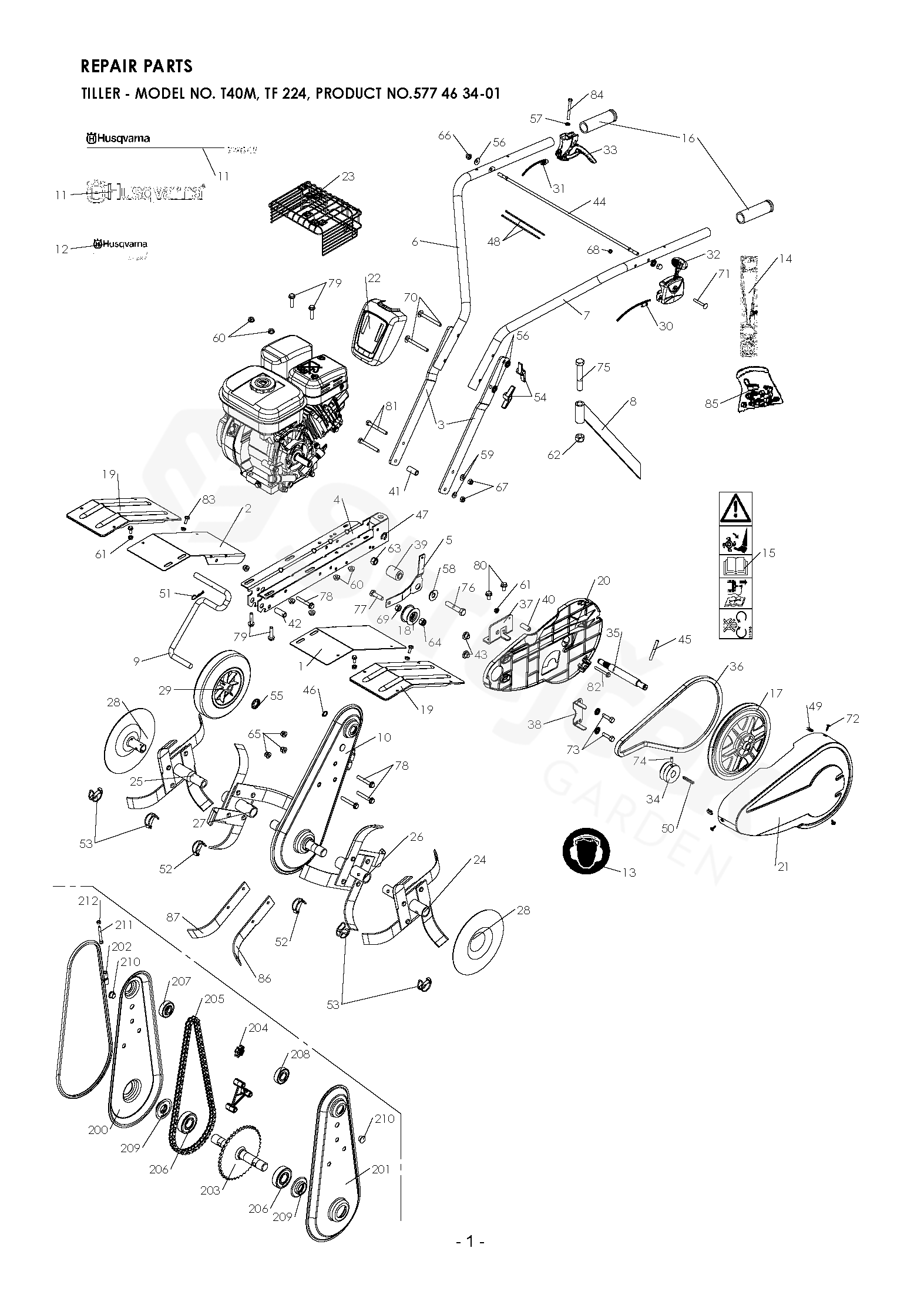

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
T40 M, 2014-01
1
GUARD
577452601
2
GUARD
577452501
3
BRACKET
577448101
4
FRAME
577447101
5
PLATE
577453301
6
HANDLEBAR RIGHT
575359001
7
HANDLEBAR LEFT
575359101
8
TAIL-SKID
531008206
9
WHEEL
577448001
10
TRANSMISSION
575358701
11
DECAL
575362001
12
STICKER
580477901
13
STICKER
577463301
14
DECAL
519646680
15
DECAL
531008540
16
GRIP
544311401
17
PULLEY
519653060
18
PULLEY
519653457
19
GUARD
577452701
20
COVER
575360301
21
COVER
531008207
22
COVER
580477801
23
GRILL
531008582
24
TINE
531008214
25
TINE
531008215
26
BLADE
531008211
27
BLADE
531008213
28
COVER
519653362
29
WHEEL
577447801
30
THROTTLE CABLE
577525001
31
CABLE
577463701
32
THROTTLE LEVER
577453001
33
LEVER
577463601
34
PULLEY
544243901
35
SHAFT
519653065
36
BELT
575360201
37
SUPPORT
575360101
38
BELT GUIDE
531008577
39
SPACER
577453401
40
SPACER
575360601
41
SPACER
575360901
42
SPACER
575361001
43
SPACER
575361101
44
HANDLEBAR
577452401
45
SHAFT
519653067
46
CIRCLIP
585365201
47
RETAINER RING
580314201
48
COLLAR
544311101
49
CLIP
519653425
50
KEY
519653021
51
PIN RETAINING SCREW
519651220
52
CLIP
577453601
53
CLIP
577453501
54
WING NUT
531008462
55
WASHER
577463101
56
WASHER
544314901
57
WASHER
531009403
58
WASHER
577453901
59
WASHER
544208101
60
NUT
519653430
61
NUT
519653432
62
NUT
531008578
63
ECROU DE FREIN
752255051
64
NUT
519653458
65
NUT
586721001
66
CAP NUT
577489101
67
NUT
544207901
68
HEXAGON LOCKING NUT
732261601
69
NUT
519653456
70
SCREW
575361301
71
SCREW
577453801
72
SCREW
519653426
73
SCREW
531008586
74
SCREW
728692300
75
BOLT
531008220
76
SCREW
505026601
77
SCREW
519653455
78
SCREW
575361601
79
SCREW
544207301
80
BOLT
531008202
81
SCREW
575361701
82
SCREW
577453701
83
SCREW
519653435
84
SCREW
519653113
85
BAG
577463201
86
BLADE
519653447
87
BLADE
519653448
200
HOUSING
519653041
201
HOUSING
519653042
202
RING
519653043
203
ŘETĚZKA
519653007
204
PINION
519653057
205
CHAIN
575362301
206
BEARING
519653053
207
RING
531008546
208
BALL
505544001
209
RING
531008576
210
PLUG
519653391
211
SCREW
501963801
212
HEXAGON LOCKING NUT
732261601
