Spare parts > STIGA > Lawn Mower > COMBI 53 S B COMBI 53 S B (2018) > Height Adjusting
Back to

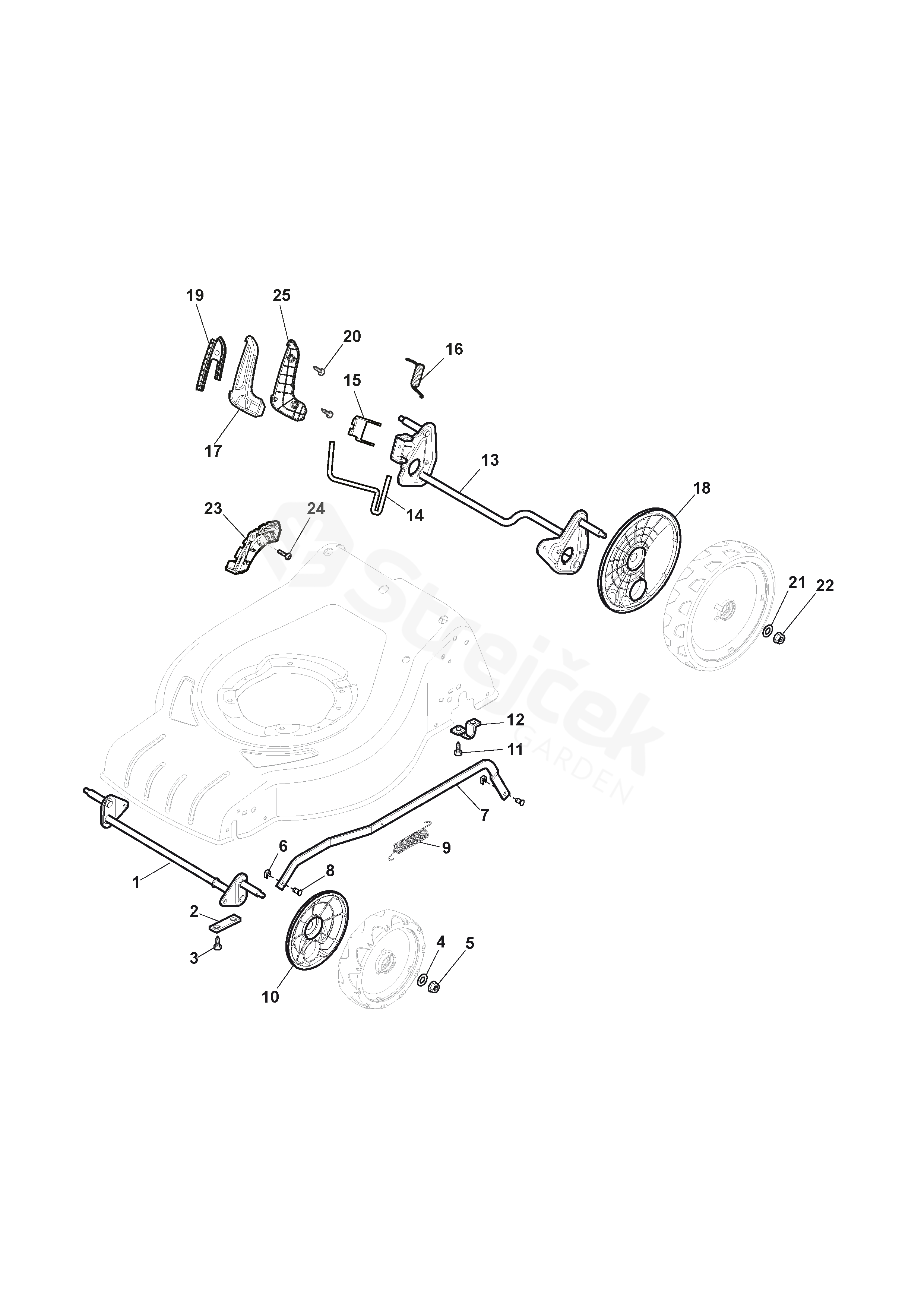

Height Adjusting
COMBI 53 S B COMBI 53 S B (2018)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For COMBI 53 S B (2018)
1 Front Wheel Axle 381302853/1
2 Plate 322545142/0
6 Plate 112436051/0
7 Rod, Height Adjustment 322869679/1
8 Pin 122519823/0
9 Spring 122446193/0
10 Protection, Wheel
As Optional 		322600145/0
11 Screw 112728698/0
12 Plate 322545152/0
13 Rear Wheel Axle 381302849/1
14 Lever, Height Adjustment 322321555/3
15 Plate 322557181/0
16 Spring 122446198/0
17 Upper Handgrip
Grey NCS S8000-N 		322394552/0
18 Protection, Wheel 322600240/0
19 Handgrip
Black 		322394551/0
20 Screw 112728696/0
21 Washer 112521350/0
22 Nut 112155000/0
23 Sector, Height Adjustment 322735607/0
24 Screw 112728697/0
25 Lower Handgrip
Grey NCS S8000-N 		322394560/0
