Spare parts > Husqvarna > Cultivators > TF 435P TF 435P, 967101301, 2016-09 > COVER
Back to

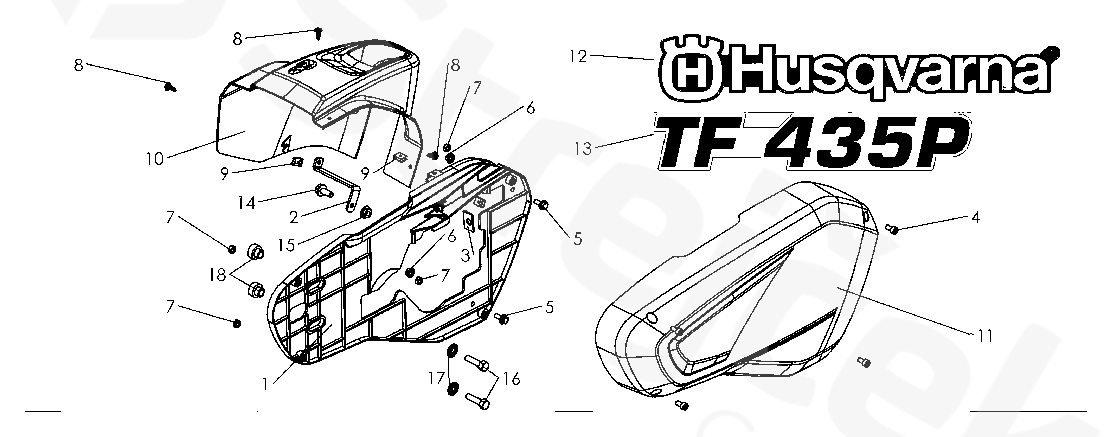

COVER
TF 435P TF 435P, 967101301, 2016-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TF 435P, 967101301, 2016-09
1 PROTECTION INSIDE PROTECTOR
INSIDE PROTECTOR 		590361601
2 SUPPORT RIGHT COVER SUPPORT
RIGHT COVER SUPPORT 		590361701
3 SNAP LOCKING
SNAP IN STOP 		580322401
4 SCREW
SCREW CHC M6X12 Z 		580313501
5 SCREW
SCREW HM 6X16 Z NOTCHED SHOULDER 		519653435
6 NUT
NUT H M6 Z NOTCHED SHOULDER 		519653432
7 HEXAGON LOCKING NUT
BLOCKING NUT M 6 Z 		732261601
8 SCREW
SCREW POZI 4.2X16 Z 		519653426
9 CLIP
CLIPS 4.2 		519653425
10 COVER RIGHT COVER ORANGE
RIGHT COVER ORANGE 		590361801
11 COVER BELT COVER ORANGE
BELT COVER ORANGE 		590171701
12 STICKER HUSQVARNA
STICKER HUSQVARNA 		590171801
13 STICKER STICKER TF435P
STICKER TF435P 		590498101
14 NUT
SCREW H M8X20 Z NOTCHED SHOULDER 		519653433
15 NUT
NUT H MS Z NOTCHED SHOULDER 		519653430
16 SCREW
SCREW 5/16 TH 24 UNF LG 32 		531008586
17 WASHER
CONTACT WASHER 8 		544314901
18 WASHER
SPACER SHOULDER 13X9X16.5 Z 		580314701
