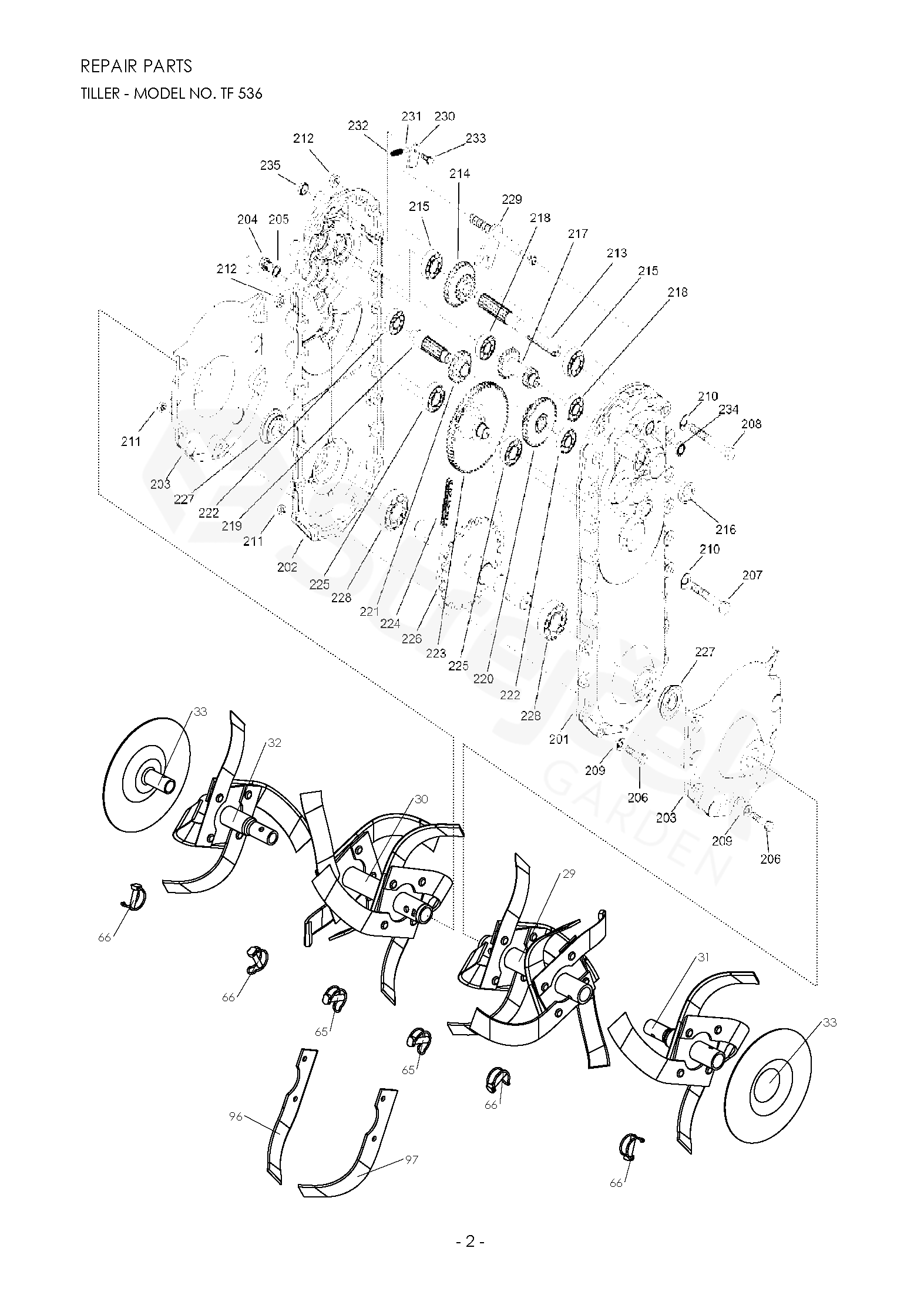

Spare parts > Husqvarna > Cultivators > TF 536 TF 536 , 966 78 71-01, 967 02 46-01, 2012-02 > PRODUCT COMPLETE
Back to
PRODUCT COMPLETE
TF 536 TF 536 , 966 78 71-01, 967 02 46-01, 2012-02
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TF 536 , 966 78 71-01, 967 02 46-01, 2012-02
29 BLADE 544310901
30 BLADE 544311001
31 TINE 531008522
32 TINE 531008523
33 COVER 519653362
65 CLIP 577453601
66 CLIP 577453501
96 BLADE 531008547
97 BLADE 531008548
201 CASE 580538801
202 CASE 580538901
203 COVER 580539001
204 PLUG 580539101
205 WASHER 580539201
206 SCREW 580539301
207 SCREW 544313601
208 SCREW 580539401
209 WASHER 519000995
210 WASHER 519653160
211 NUT 505027001
212 NUT 519653456
213 SHAFT 580539501
214 GEAR 580539601
215 BALL BEARING 501996301
216 SEAL 580539701
217 SHAFT 580539801
218 BEARING 544176801
219 SHAFT 580539901
220 GEAR 580540001
221 GEAR 580540101
222 BEARING 544176801
223 SHAFT 580540201
224 CHAIN 580540301
225 BALL BEARING 501996301
226 SHAFT 580540401
227 JOINT 531009475
228 BALL BEARING 580540501
229 SHAFT 580540601
230 PLATE 580540701
231 BALL 544353301
232 SPRING 501997401
233 SCREW 504052701
234 SEAL 580540801
235 CAP 580540901
