Spare parts > STIGA > Lawn Mower > EURO 45 STARCLIPPER EURO 45 STARCLIPPER (2004) > Walkbehind
Back to
Walkbehind

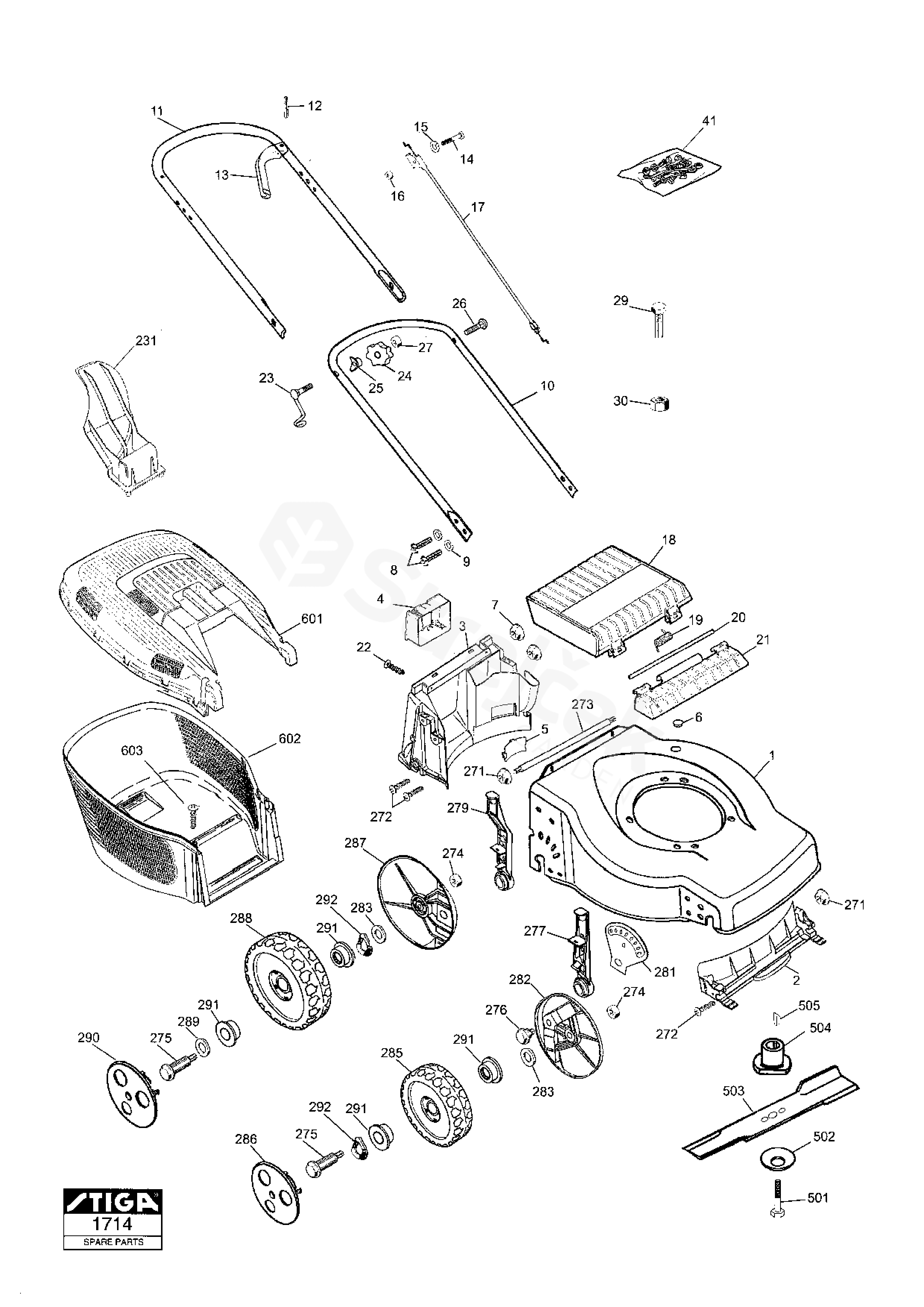

EURO 45 STARCLIPPER EURO 45 STARCLIPPER (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EURO 45 STARCLIPPER (2004)
1 Red Deck 1117-3263-04
2 Front Baffle 1117-3007-01
3 Rear Baffle 1117-3008-01
4 Battery Holder 1111-2927-01
5 Cap 1117-1148-01
6 Plug 1136-1400-01
8 Bolt 1117-1364-01
9 Washer 9699-0028-02
10 Handle-Lower 1136-1411-01
11 Handle-Upper 1136-1413-01
12 Locating Pin 9595-0258-00
13 Opc Lever (Red) 1117-3221-01
14 Screw 9997-0635-12
15 Washer 9699-0025-02
16 Nut 9799-0631-02
17 Opc Cable 1136-1405-01
18 Rear Flap (Black) 1117-1156-02
19 Spring-Rear Flap 1117-1126-01
20 Shaft For Rear Flap 1117-1143-01
21 Rear Flap Holder (Black) 1117-1155-02
22 Screw 9836-9516-12
23 Screw 1136-0747-01
24 Knob 1117-3194-01
25 Washer 1136-0693-01
26 Screw 1136-0620-01
27 Nut 9799-0831-02
29 Screw 9997-0830-16
30 Nut 9739-0831-22
41 Assy Kit 1136-1415-01
231 Mulch Plug (Yellow) 1117-3001-01
271 Nut 1117-1131-01
273 Reinforcement 1117-1219-01
274 Nut 9716-0831-02
275 Wheel Bolt 1111-3164-01
276 Shoulder Bolt 1117-1182-01
277 Lever, Height Adjustment 1117-1228-01
279 Lever, Height Adjustment 1117-3261-01
281 Sector 1117-1213-01
282 Wheel Plate 1117-1376-01
283 Washer 9699-0062-02
285 Wheel 1111-3163-01
286 Hub Cap (Red) 1111-2804-04
287 Wheel Plate 1117-3259-01
288 Wheel 1111-3238-01
289 Washer 9699-0037-02
290 Hub Cap (Red) 1111-2815-04
291 Ball Bearing 9549-0053-00
292 Washer 9694-0003-00
501 Screw 1136-0616-01
502 Spring washer 1117-1065-01
503 Blade 1117-3354-01
504 Blade Holder 1117-1362-01
505 Key 9600-0014-00
601 Grassbag-Upper (Black) 1117-1157-02
602 Lower Grass Bag (Black) 1117-1218-01
