Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Lawn Mower
>
MULTICLIP MULTICLIP (1991) [11-3229-16]
>
Walkbehind
Back to
MULTICLIP
MULTICLIP (1991) [11-3229-16]
Walkbehind
MULTICLIP
MULTICLIP (1991) [11-3229-16]

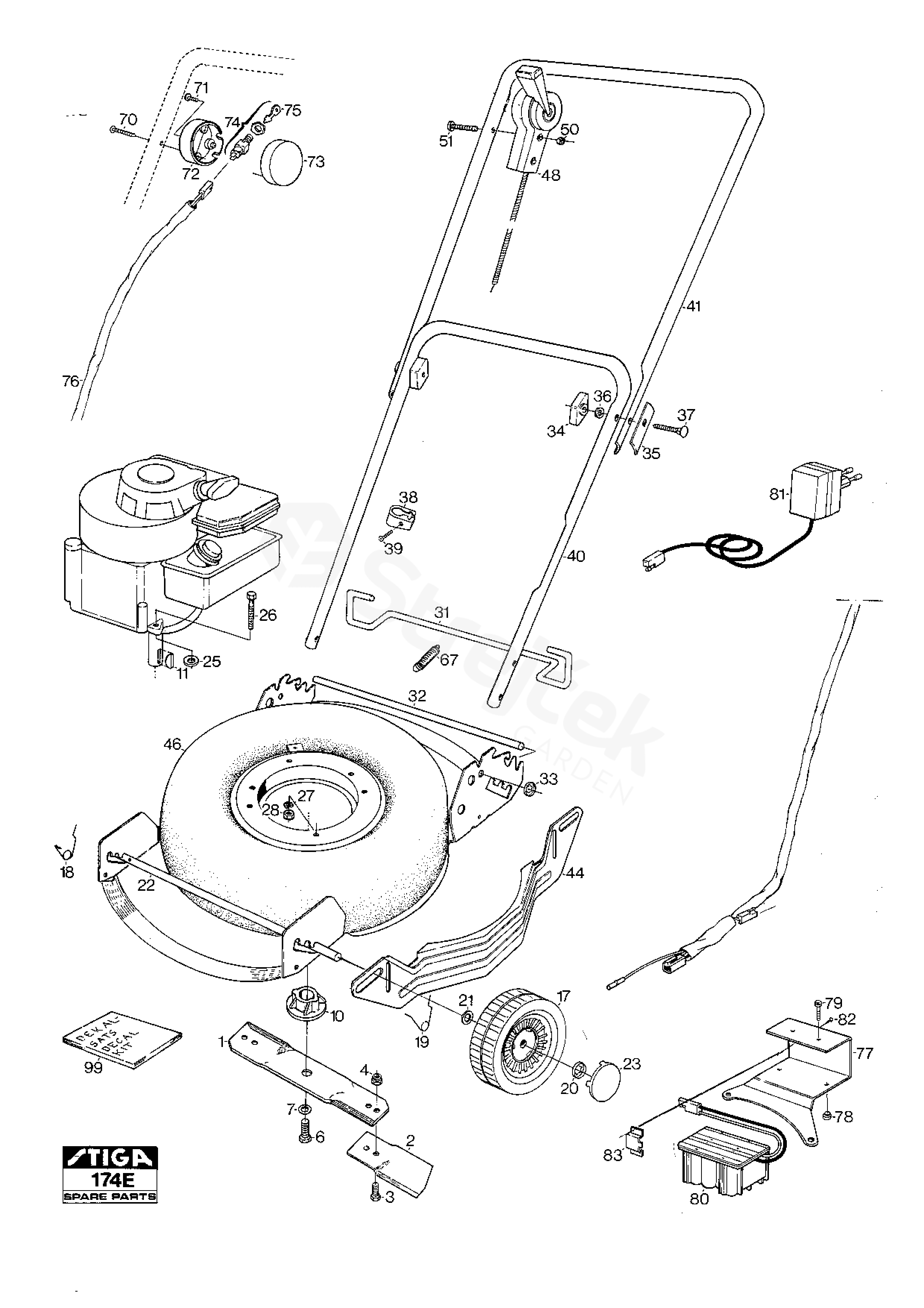

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP (1991) [11-3229-16]
1
Blade Bar Assy
1111-1603-01
2
Blade Kit (Mulcher)
1111-9049-01
3
Screw
9997-0816-16
4
Nut
9747-0831-02
6
Screw
9987-5238-12
7
Washer
9696-0011-01
10
Blade Hub
1111-9054-01
11
Key
9600-0014-00
17
Wheel
1111-2656-01
18
Spring
1111-1589-02
19
Spring
1111-1589-01
20
Washer
1111-9042-01
21
Washer
9699-0069-02
22
Wheel Axle
1111-1590-01
23
Hub Cap
1111-1335-01
25
Washer
9699-0056-02
26
Screw
35 mm
9997-0835-12
27
Washer
9683-0030-02
28
Nut
9739-0831-22
31
Handlebar Clamp
1111-3017-01
32
Pivot rod
1111-1532-01
33
Washer
9670-0203-00
34
Handle Bolt Kit (2 Pcs)
1111-9030-02
35
Reinforcement
1111-0178-00
36
Washer
9699-0025-02
37
Screw
9899-3551-12
38
Cable Holder
1111-2018-01
39
Screw
9836-9216-12
40
Handlebar-lower part
1111-1702-01
41
Handlebar-Upper Part
1111-2005-01
44
Side Guard
1111-1529-01
46
Chassis, Yellow
1111-2982-01
48
Throttle Cable
1111-2367-05
50
Lock Nut
9747-0631-02
51
Screw
9948-0645-16
67
Spring
1111-2375-01
70
Screw
9836-9540-12
72
Housing
1111-2020-01
73
Cover
1111-2021-01
74
Starting Switch
9400-0186-00
75
Ignition Key
1134-2848-01
76
Harness
1111-2395-01
77
Battery Plate
1111-2392-01
78
Rubber plug
9403-0040-00
79
Screw
9943-0612-16
80
Battery
9400-0218-00
81
Charger
9400-0219-00
82
Screw
9847-7909-16
83
Attaching clamp
1111-2391-01
99
Label Kit
1111-2233-02
