STIGA
>
Lawn Mower
>
MULTICLI MULTICLIP (SF) (1992) [11-3213-36]
>
Walkbehind
Back to
MULTICLI
MULTICLIP (SF) (1992) [11-3213-36]
Walkbehind
MULTICLI
MULTICLIP (SF) (1992) [11-3213-36]

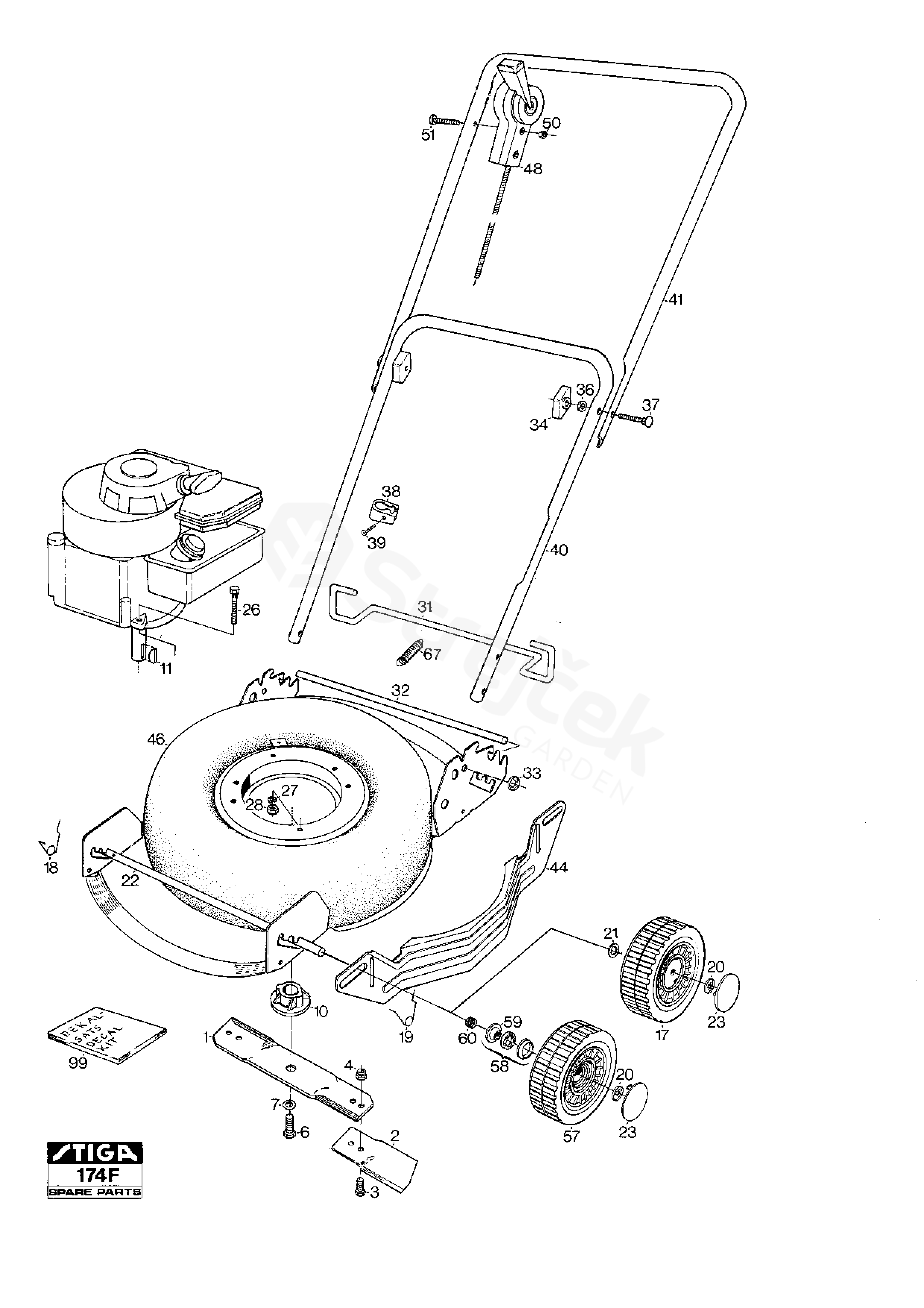

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP (SF) (1992) [11-3213-36]
1
Blade Bar Assy
1111-1603-01
2
Blade Kit (Mulcher)
1111-9049-01
3
Screw
9997-0816-16
4
Nut
9747-0831-02
6
Screw
9987-5238-12
7
Washer
9696-0011-01
10
Blade Hub
1111-9023-02
11
Key
9600-0014-00
18
Spring
1111-9035-01
19
Spring
1111-1589-01
20
Washer
1111-9042-01
22
Wheel Axle
1111-1590-01
23
Hub Cap
1111-1335-01
26
Screw
30 mm
9997-0830-16
27
Washer
9683-0030-02
28
Nut
9799-0831-02
31
Handlebar Clamp
1111-3017-01
32
Pivot rod
1111-1532-01
33
Washer
9670-0203-00
34
Handle Bolt Kit (2 Pcs)
1111-9030-02
36
Washer
9699-0025-02
37
Screw
9899-3545-12
38
Cable Holder
1111-2018-01
39
Screw
9836-9216-12
40
Handlebar-lower part
1111-1702-01
41
Handlebar-Upper Part
1111-2005-01
44
Side Guard-Yellow
1111-1529-02
46
Chassis, Yellow
1111-2982-01
48
Throttle Cable
1111-2366-01
50
Lock Nut
9747-0631-02
51
Screw
9948-0645-16
57
Wheel
1111-2784-01
58
Ball Bearing
1111-9047-01
59
Outer Ring
1111-1184-01
60
Spring-Wheel Axle
1111-1138-01
67
Spring
1111-2375-01
99
Label Kit
1111-2893-02
