MULTICLIP 46 MULTICLIP 46 (2001) [11-3291-25]
>
Walkbehind
Back to
MULTICLIP 46
MULTICLIP 46 (2001) [11-3291-25]
Walkbehind
MULTICLIP 46
MULTICLIP 46 (2001) [11-3291-25]

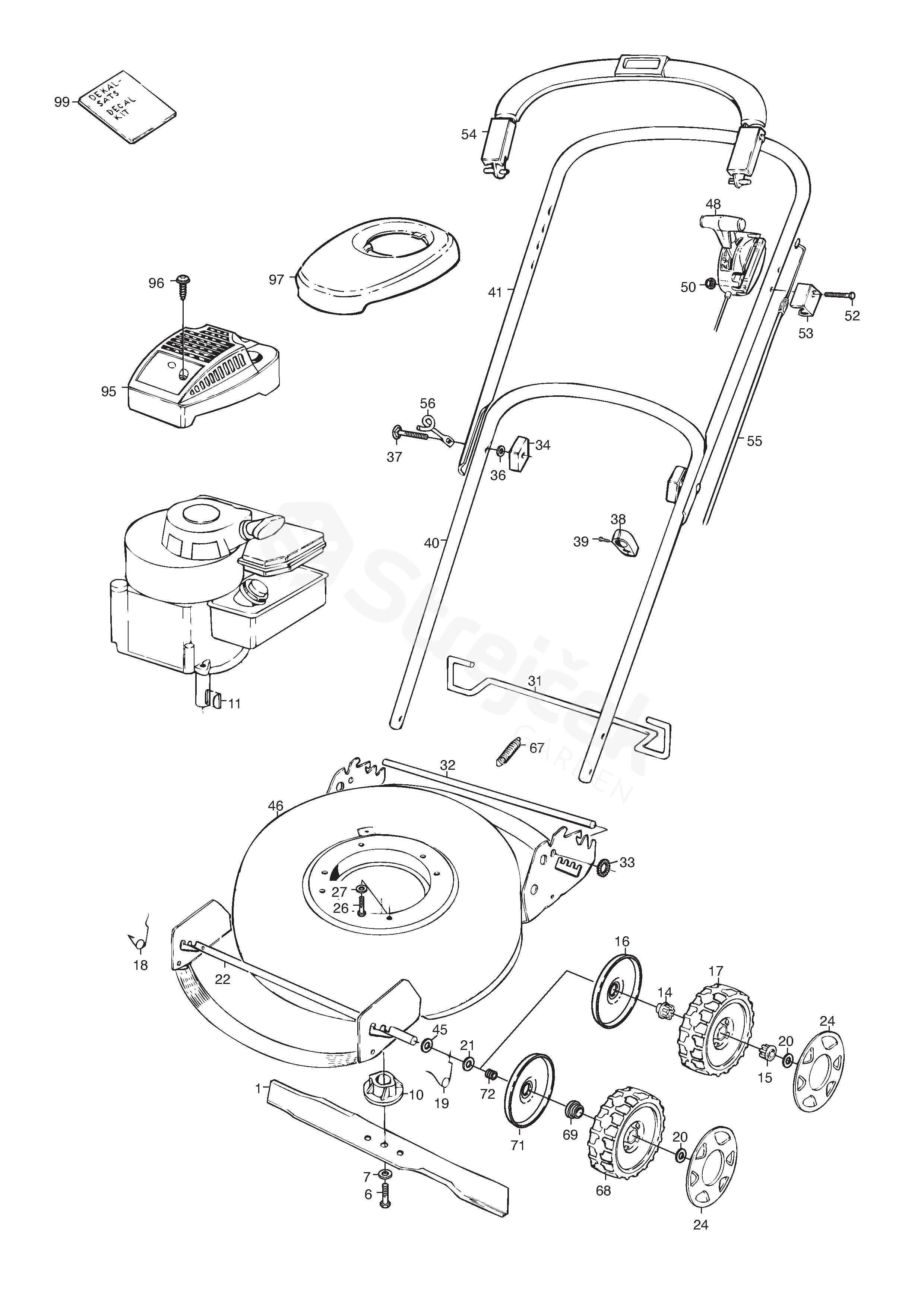

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP 46 (2001) [11-3291-25]
1
Blade
1111-9078-01
6
Screw
9987-5238-12
7
Washer
9696-0011-01
10
Blade Hub
1111-9066-01
11
Key
9600-0014-00
14
Bushing
1117-3012-01
15
Bushing
1111-3165-01
16
Protection, Wheel
1117-1161-01
17
Wheel
1111-3163-01
18
Spring
1111-9035-01
19
Spring
1111-1589-01
20
Washer
1111-9042-01
21
Washer
12.4 x 20 x 1.0
9699-0069-02
22
Shaft
1111-3312-01
24
Hub Cap (175) Yellow
1111-3084-01
26
Screw
9955-3732-12
27
Washer
9699-0029-02
31
Handlebar Clamp
1111-3017-01
32
Pivot rod
1111-1532-01
33
Washer
9670-0203-00
34
Handle Bolt Kit (2 Pcs)
1111-9030-02
36
Washer
9699-0025-02
37
Screw
9899-3551-12
38
Cable Holder
1111-2018-01
39
Screw
9836-9216-12
40
Handle-Lower Part
1111-3018-01
41
Handlebar Upper Part
1111-2957-01
45
Washer
1111-1593-01
46
Chassis (Black)
11-3281-66
1111-3338-05
50
Lock Nut
9747-0631-02
52
Screw
L = 40 mm
9948-0640-16
53
Cable Holder
1111-2969-01
54
Control Handle (Eng.Brake
1111-2953-01
55
Cable, Thread Engine Brake
1111-2968-05
56
Eyelink
1111-3062-01
67
Spring
1111-2375-01
97
Engine Cover-Black
1111-3289-01
99
Label Kit
1111-2893-02
