Spare parts > STIGA > Lawn Mower > MULTICLIP 46 MULTICLIP 46 (2005) [11-3281-29] > Walkbehind
Back to
Walkbehind

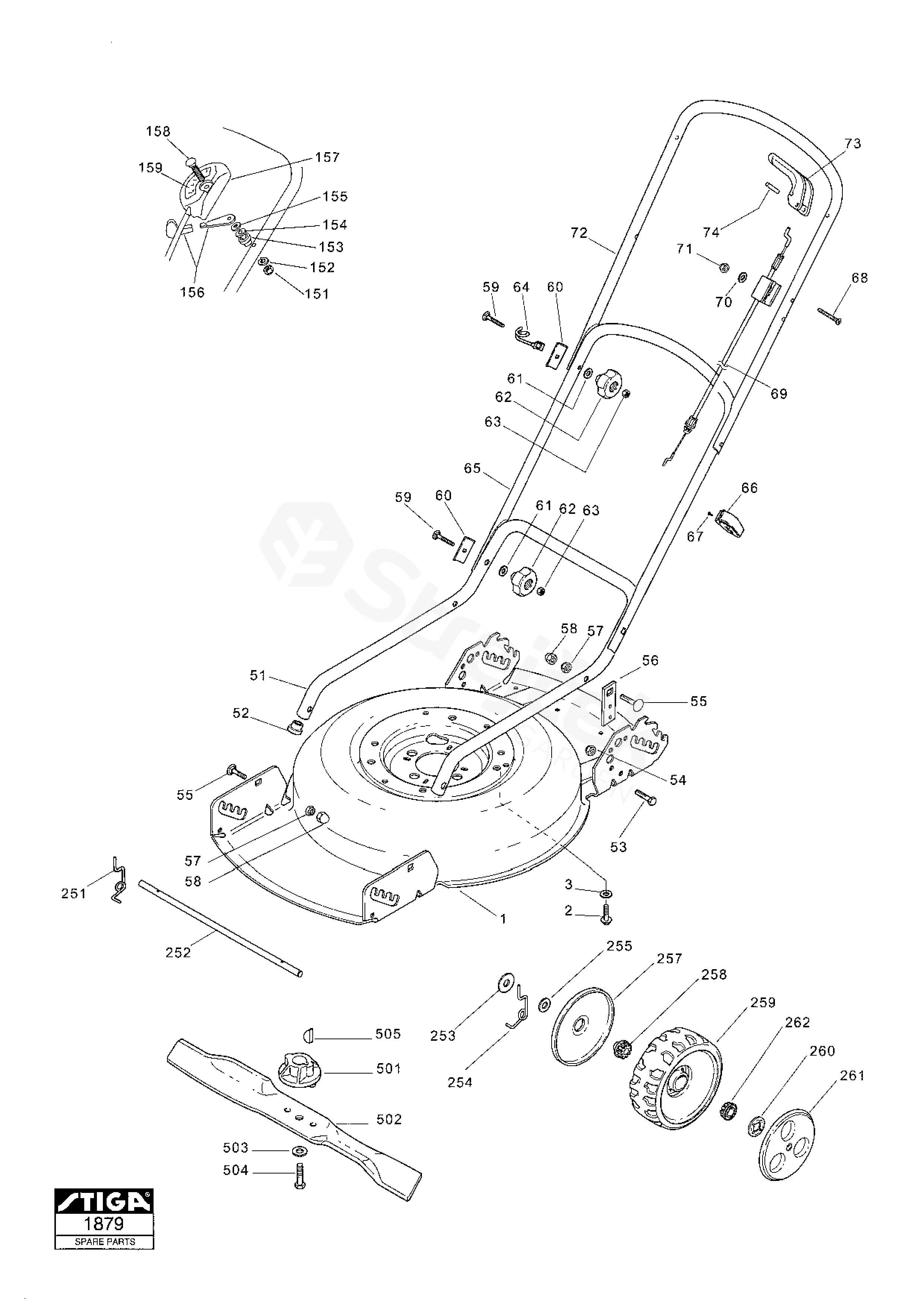

MULTICLIP 46 MULTICLIP 46 (2005) [11-3281-29]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP 46 (2005) [11-3281-29]
2 Screw 9955-3732-12
3 Washer 9699-0029-02
51 Handlebar-lower part 1111-3264-01
52 Plug 9403-0043-70
53 Screw 9997-0612-16
54 Lock Nut 9747-0631-02
55 Screw 9898-0835-12
56 Handlebar Attachment 1111-3310-01
57 Nut 9747-0831-02
58 Ring Nut 9403-0113-00
59 Screw 9899-3557-12
60 Reinforcement 1111-0178-00
61 Washer 9699-0028-02
62 Locking Knob 1111-3023-01
63 Nut 9795-3531-02
64 Eyelink 1111-3062-01
65 Handlebar-Interm.Part 1111-2961-01
66 Cable Holder 1111-2018-01
67 Screw 9836-9216-12
68 Screw 9948-0640-16
70 Washer 9699-0025-02
71 Nut 9799-0631-02
72 Handle-upper part 1111-3502-01
73 Opc Lever (Red) 1117-3221-01
74 Locating Pin 9595-0258-00
251 Spring
Inkl. pos 251,254,260 		1111-1589-02
252 Shaft 1111-3312-01
253 Washer 1111-1593-01
254 Spring 1111-1589-01
255 Washer 9699-0037-02
257 Protection, Wheel 1117-1161-01
258 Bushing 1117-3012-01
259 Wheel 1111-3163-01
260 Starlock 9675-0017-02
262 Bushing 1111-3165-01
501 Blade Hub 1111-9066-01
502 Blade 1111-9078-01
503 Washer 9696-0011-01
504 Screw 9987-5238-12
505 Key 9600-0014-00
