Spare parts
>
STIGA
>
Lawn Mower
>
MULTICLIP 46 MULTICLIP 46 (2005) [11-3281-30]
>
Walkbehind
Back to
MULTICLIP 46
MULTICLIP 46 (2005) [11-3281-30]
Walkbehind
MULTICLIP 46
MULTICLIP 46 (2005) [11-3281-30]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For

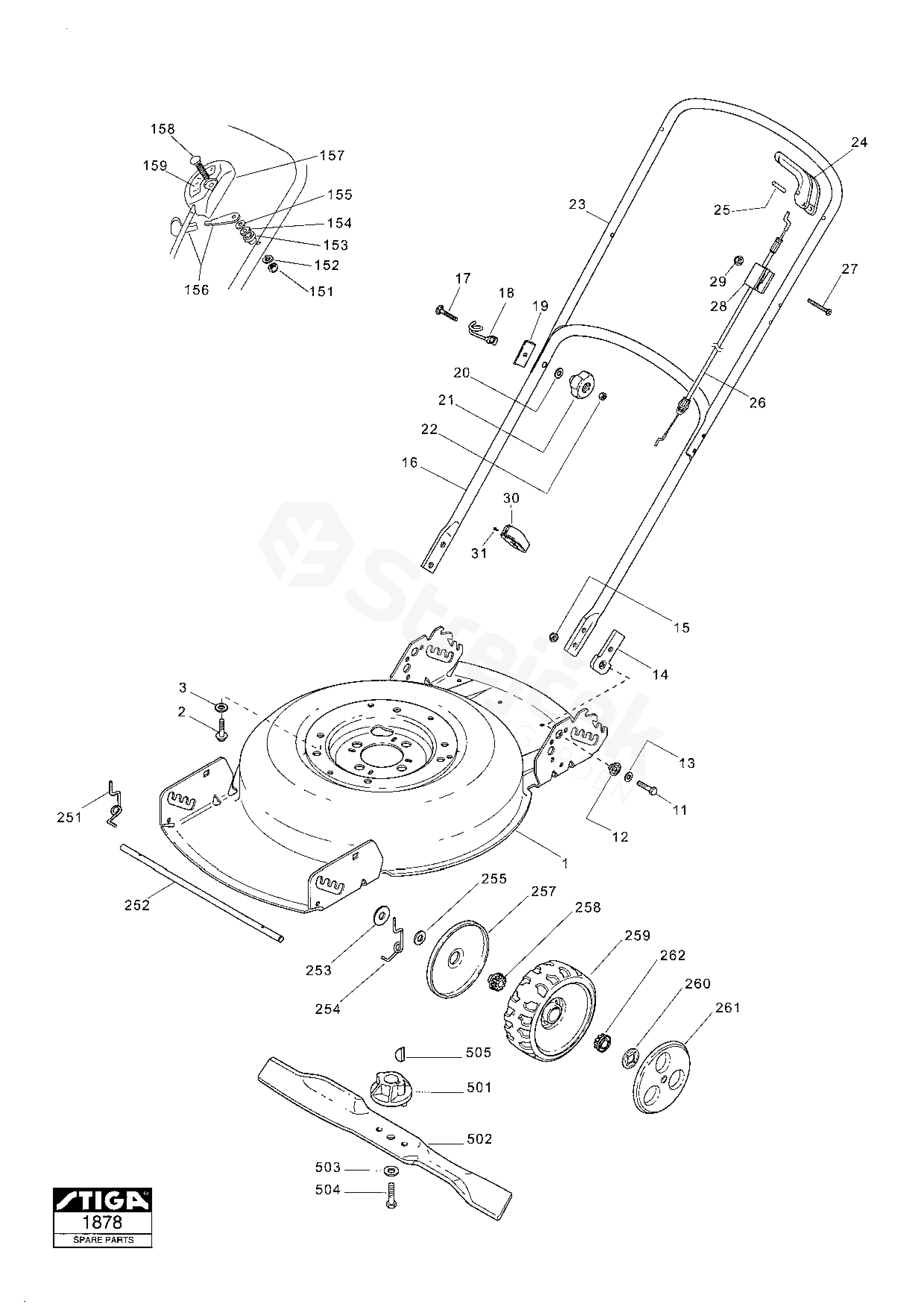

MULTICLIP 46 (2005) [11-3281-30]
1
Chassis, Yellow
1111-3338-01
2
Screw
9955-3732-12
3
Washer
9699-0029-02
11
Screw
9997-0830-16
12
Isolation Collar
1111-2987-01
13
Washer
9699-0062-02
14
Isolation Plate
1111-2986-01
15
Nut
9747-0831-02
16
Handle,Lower Part
1111-3014-01
17
Screw
9899-3557-12
18
Eyelink
1111-3062-01
19
Reinforcement
1111-0178-00
20
Washer
9699-0028-02
21
Locking Knob
1111-3023-01
22
Nut
9795-3531-02
23
Handle-upper part
1111-3502-01
24
Opc Lever (Red)
1117-3221-01
25
Locating Pin
9595-0258-00
26
Cable, Thread Engine Brake
1111-3250-01
27
Screw
9948-0640-16
28
Cable Holder
1111-2969-01
29
Lock Nut
9747-0631-02
30
Cable Holder
1111-2018-01
31
Screw
9836-9216-12
251
Spring
Inkl. pos 251,254,260
1111-9035-01
252
Shaft
1111-3312-01
253
Washer
1111-1593-01
254
Spring
1111-1589-01
255
Washer
9699-0037-02
257
Protection, Wheel
1117-1161-01
258
Bushing
1117-3012-01
259
Wheel
1111-3163-01
260
Starlock
9675-0017-02
261
Hub Cap (175) Yellow
1111-3084-01
262
Bushing
1111-3165-01
501
Blade Hub
1111-9066-01
502
Blade
1111-9078-01
503
Washer
9696-0011-01
504
Screw
9987-5238-12
505
Key
9600-0014-00
