Spare parts > STIGA > Lawn Mower > MULTICLIP 46 S EURO MULTICLIP 46 S EURO (2003) > Deck
Back to

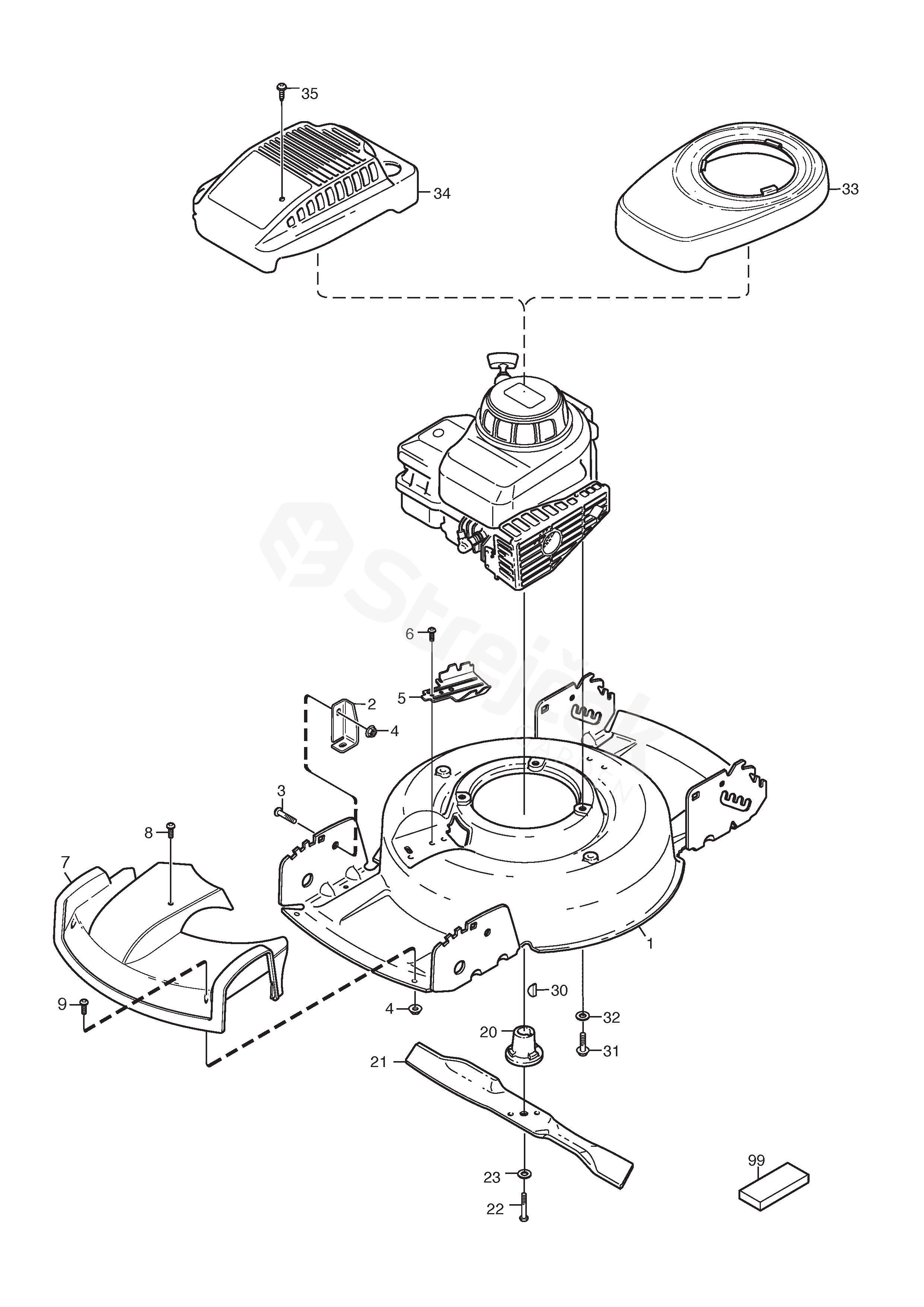

Deck
MULTICLIP 46 S EURO MULTICLIP 46 S EURO (2003)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP 46 S EURO (2003)
1 Chassis (Black)
3681-67, 3698-67 		1111-3500-04
2 Support 1111-3501-01
3 Screw 9997-0512-16
4 Nut 9739-0531-22
5 Grasshield 1111-2648-01
6 Screw 9852-8013-16
7 Front Cover (Yellow) 1111-3542-01
8 Screw 9943-0530-16
9 Screw 9943-0540-16
20 Blade Hub 1111-9067-01
21 Blade 1111-9078-01
22 Screw 9987-5257-12
23 Washer 9696-0011-01
30 Key 9600-0014-00
31 Screw 9955-3732-12
32 Washer 9699-0029-02
33 Engine Cover-Black 1111-3289-01
99 Label Kit
STIGA 		1111-3595-04
