STIGA
>
Lawn Mower
>
MULTICLIP 46S MAJOR MULTICLIP 46S MAJOR (2002)
>
Handle, wheels
Back to
MULTICLIP 46S MAJOR
MULTICLIP 46S MAJOR (2002)
Handle, wheels
MULTICLIP 46S MAJOR
MULTICLIP 46S MAJOR (2002)

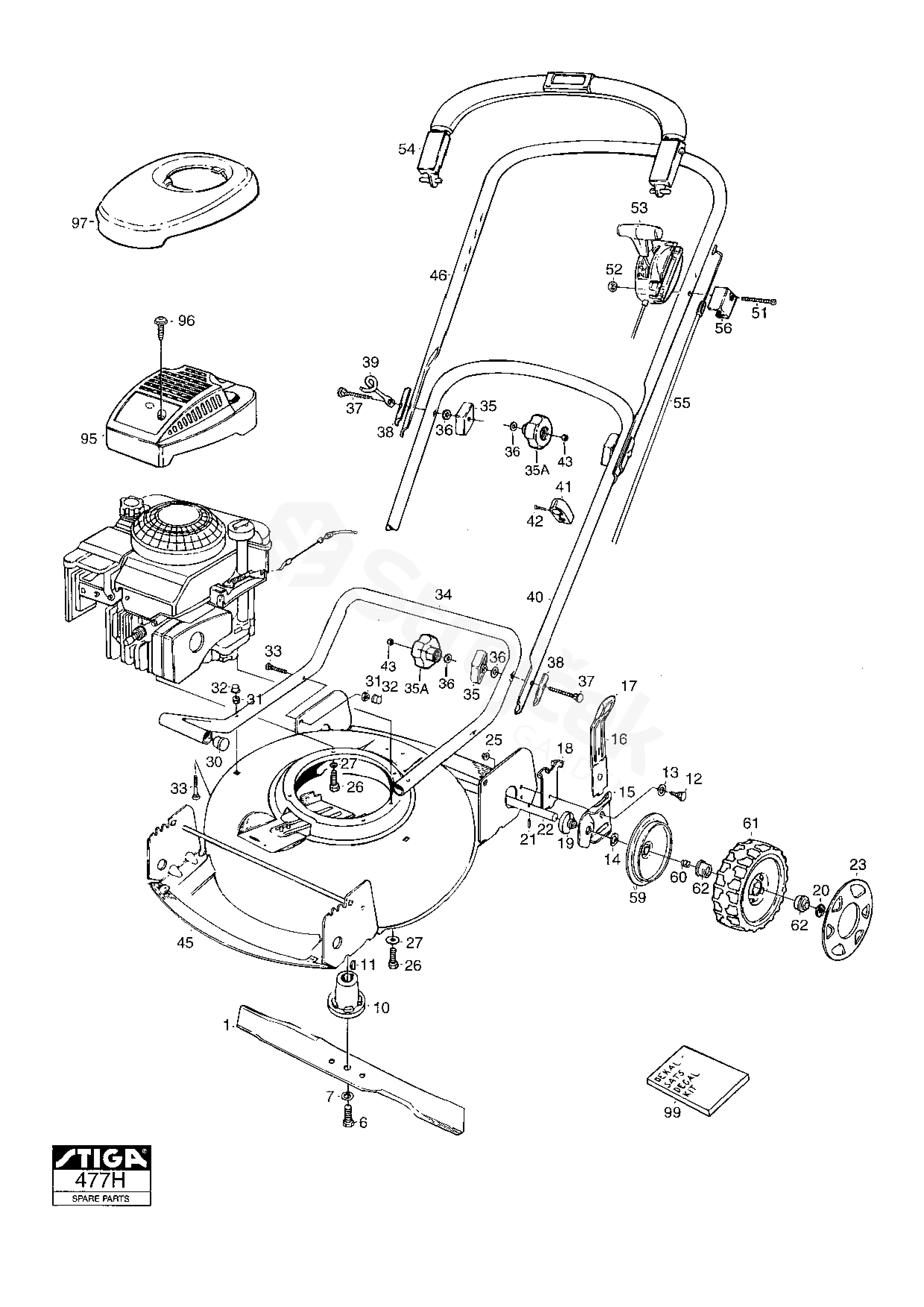

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP 46S MAJOR (2002)
1
Blade
1111-9078-01
6
Screw
9987-5257-12
7
Washer
9696-0011-01
10
Blade Hub
1111-9067-01
11
Key
9600-0014-00
12
Bolt
1111-0545-00
13
Washer
9694-0001-00
14
Washer
13.0 x 24 x 2.0
9699-0037-02
15
Axle Mounting
1111-1268-01
16
Control Lever
1111-1337-01
17
Knob
1111-2549-01
18
Hole Plate
1111-0497-00
19
Bushing
1111-2057-02
20
Starlock
9675-0017-02
21
Slotted Pin
9595-0182-00
22
Front Axle
1111-2526-01
23
Hub Cap (Black)
3699-65
1111-3085-06
25
Nut
9739-0831-22
26
Screw
9955-3732-12
27
Washer
9699-0029-02
30
Plug
9403-0043-70
31
Nut
9747-0831-02
32
Ring Nut
9403-0113-00
33
Screw
9898-0835-12
34
Handlebar-lower part
1111-2962-01
35
Knob
1111-0035-01
36
Washer
9699-0025-02
37
Screw
L = 51 mm
9899-3551-12
38
Reinforcement
1111-0178-00
39
Eyelink
1111-3062-01
40
Handlebar-Interm.Part
1111-2961-01
41
Cable Holder
1111-2018-01
42
Screw
9836-9216-12
45
Chassis 46S (Black)
1111-3445-04
46
Handlebar-Upper Part
1111-3243-01
51
Screw
L = 40 mm
9948-0640-16
52
Lock Nut
9747-0631-02
54
Control Handle (Eng.Brake
1111-2953-01
55
Cable, Thread Engine Brake
1111-2968-05
56
Cable Holder
1111-2969-01
59
Wheel Cover
1111-3341-01
60
Spring-Wheel Axle
1111-1138-01
61
Wheel
1111-3238-01
62
Ball Bearing
9549-0053-00
97
Engine Cover-Black
1111-3289-01
