Spare parts > STIGA > Lawn Mower > MULTICLIP 48 E MULTICLIP 48 E (2004) > Blade
Back to

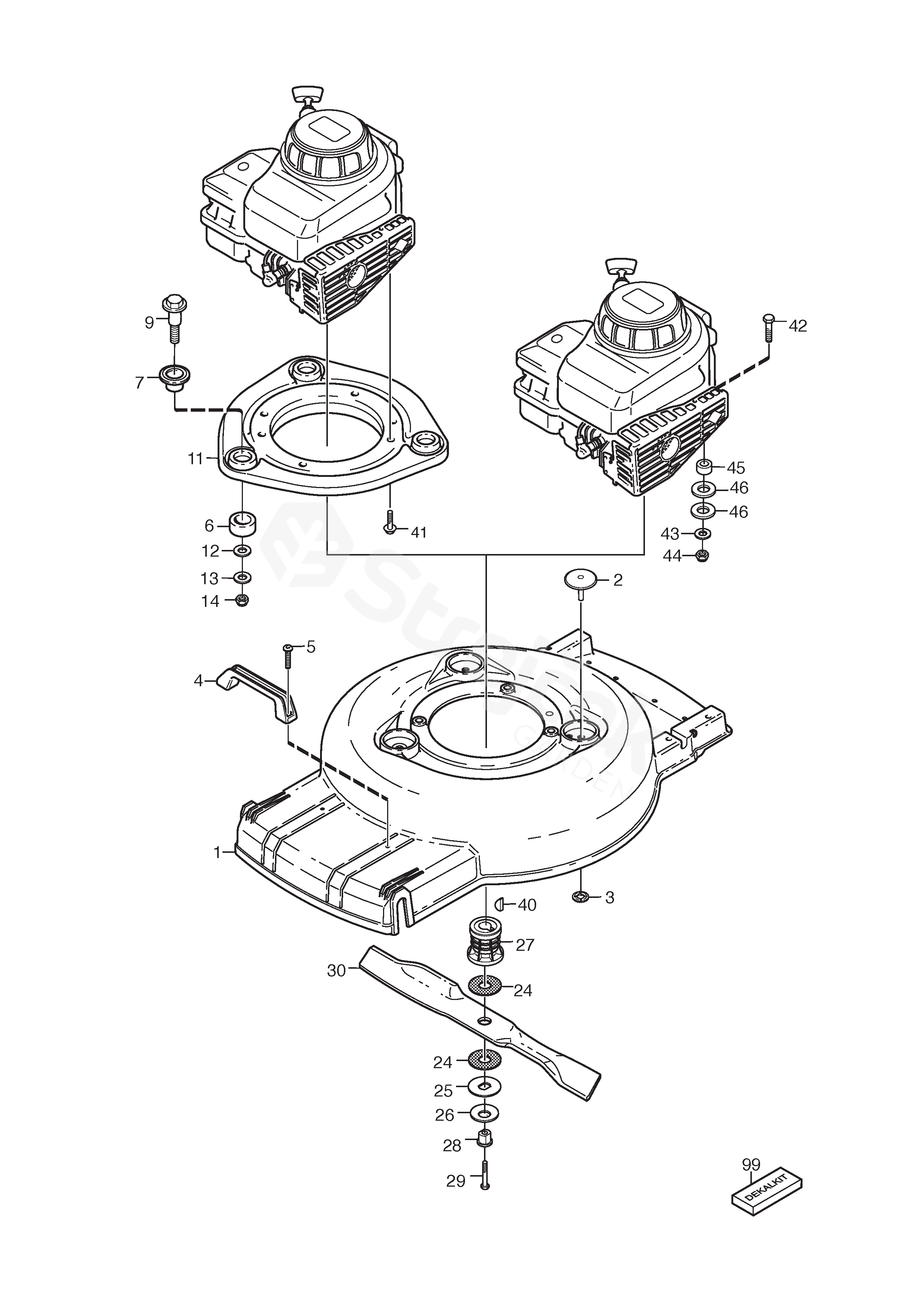

Blade
MULTICLIP 48 E MULTICLIP 48 E (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP 48 E (2004)
1 Chassis, Yellow 1111-3630-01
2 Cap 1111-3095-01
3 Locking washer 9675-0012-02
4 Handle 9403-0037-70
5 Screw 9943-0516-16
24 Friction Disc 1111-3480-01
25 Washer 1111-3481-01
26 Disc Washer 1111-3482-01
27 Blade Holder 1111-9127-01
28 Bushing 1111-3483-01
29 Screw 9987-5264-12
30 Blade 1111-9131-01
40 Key 9600-0014-00
42 Screw
L = 55 mm 		9997-0855-12
43 Washer
8,4x16x1,5 		9699-0028-02
44 Nut 9747-0831-02
45 Spacer 1111-1519-02
46 Washer
8,4x24x2,0 		9699-0056-02
99 Label Kit 1111-3595-05
