Spare parts > STIGA > Lawn Mower > MULTICLIP 50 S EURO MULTICLIP 50 S EURO (2006) > Wheel Suspension Transmission
Back to

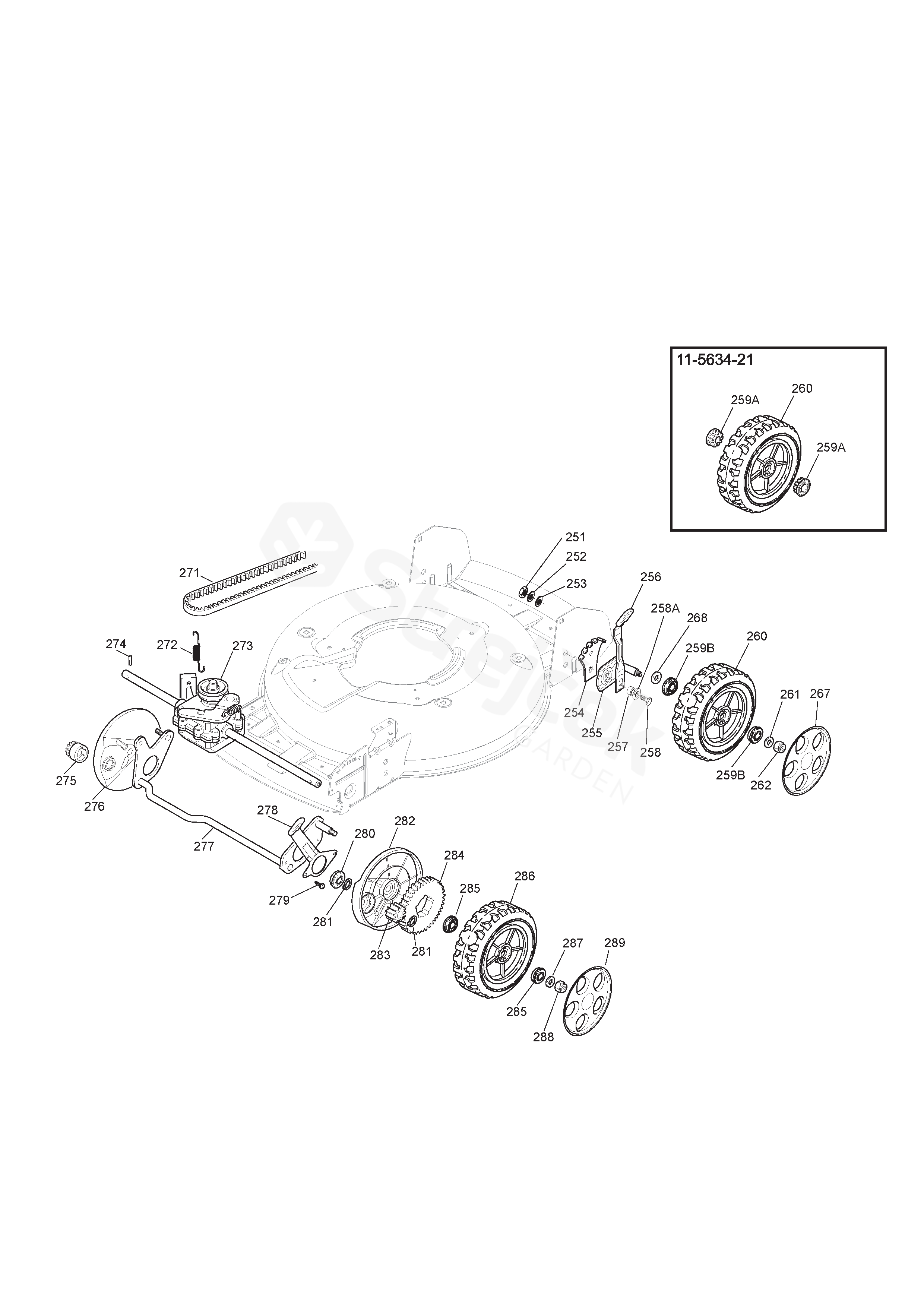

Wheel Suspension Transmission
MULTICLIP 50 S EURO MULTICLIP 50 S EURO (2006)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP 50 S EURO (2006)
251 Nut 9799-0831-02
252 Washer 9683-0030-02
253 Washer 1136-0014-01
254 Sector, Height Adjustment 1136-0696-01
255 Wheel Support 1136-1381-01
256 Lever, Height Adjustment 1136-1380-01
257 Spacer 1136-0084-01
258 Screw 9997-0830-16
260 Wheel 1136-0772-01
261 Washer 9699-0056-02
262 Nut 9747-0831-02
267 Hub Cap-Yellow 1136-0646-01
271 Drive Belt 1111-9124-01
272 Spring 1136-2361-01
273 Transmission assy 1136-2387-01
274 Pin 1136-0697-01
275 Pinion-Rh 1136-0684-01
276 Wheel Protection-Lh 1136-0690-01
277 Wheel Axle 1136-2380-01
278 Lever, Height Adjustment 1136-2388-01
279 Screw 9943-0610-16
280 Bearing 1136-0632-01
281 Circlip 9650-0012-04
282 Wheel Protection-Rh 1136-0689-01
283 Pinion-Lh 1136-0685-01
284 Ring Gear 1136-0653-01
285 Ball Bearing 1136-0655-01
286 Wheel 1136-0772-01
287 Elastic Washer 1136-0006-01
288 Nut 9747-0831-02
289 Hub Cap-Yellow 1136-0646-01
258A Washer 9699-0090-02
259A Bushing 1136-0634-01
