STIGA
>
Lawn Mower
>
MULTICLIP 51 S MULTICLIP 51 S (2002) [11-8786-18]
>

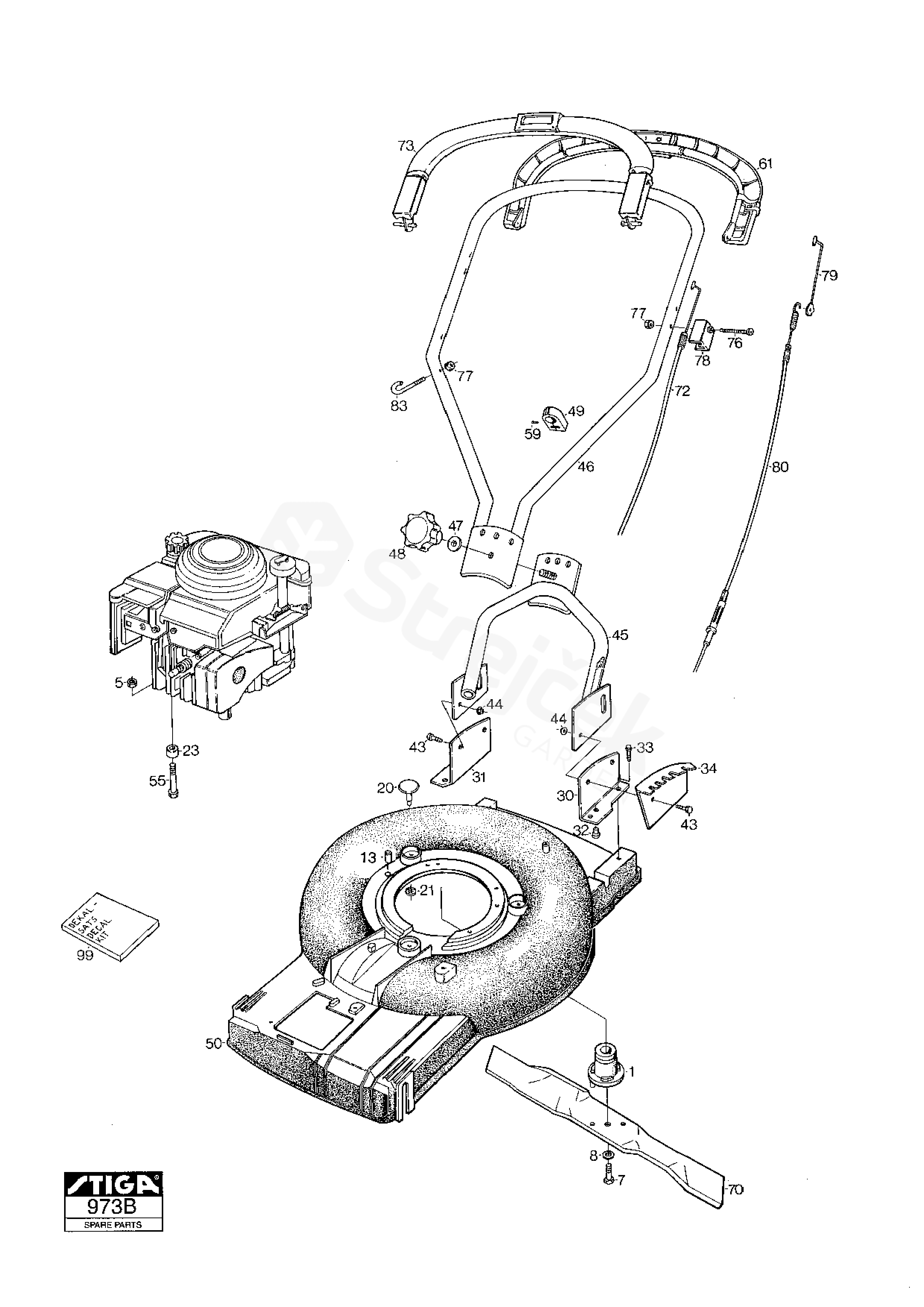

Handle, Upper Part/Blade
Back to
MULTICLIP 51 S
MULTICLIP 51 S (2002) [11-8786-18]
Handle, Upper Part/Blade
MULTICLIP 51 S
MULTICLIP 51 S (2002) [11-8786-18]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP 51 S (2002) [11-8786-18]
1
Blade Hub
1111-3381-01
5
Nut
9799-0831-02
7
Screw
9987-5257-12
8
Washer
9696-0011-01
13
Rubber Tube
1111-2925-01
20
Cap
1111-3095-01
21
Locking washer
9675-0012-02
23
Spacer
1111-3217-01
30
Handle Attachment,Lh
1111-1483-01
31
Handle Attachment,Rh
1111-1484-01
32
Plug
1111-1485-01
33
Screw
9942-0820-16
34
Adjusting Plate
1111-1500-01
43
Screw
9959-0816-16
44
Nut
9799-0831-02
45
Handlebar Lower Part
1111-2134-01
46
Handlebar-Upper Part
1111-2974-01
47
Washer
9699-0035-02
48
Locking Knob
1482-0163-01
49
Cable Holder
1111-2018-01
50
Chassis, Yellow
1111-3196-01
55
Screw
L = 90 mm
9997-0890-12
59
Screw
9836-9216-12
61
Clutch Lever
1111-2954-01
70
Blade
1111-9109-01
72
Cable, Thread Engine Brake
1111-2968-01
73
Control Handle (Eng.Brake
1111-2953-01
76
Screw
9948-0640-16
77
Lock Nut
9747-0631-02
78
Cable Holder
1111-2969-01
79
Cable W.Eye
1111-3246-01
80
Clutch Cable
1111-3245-01
83
Eye Link
1111-3063-01
99
Labels Kit
1111-2893-03
