Spare parts > STIGA > Lawn Mower > MULTICLIP S MULTICLIP S (1994) [11-3615-18] > Chassis
Back to

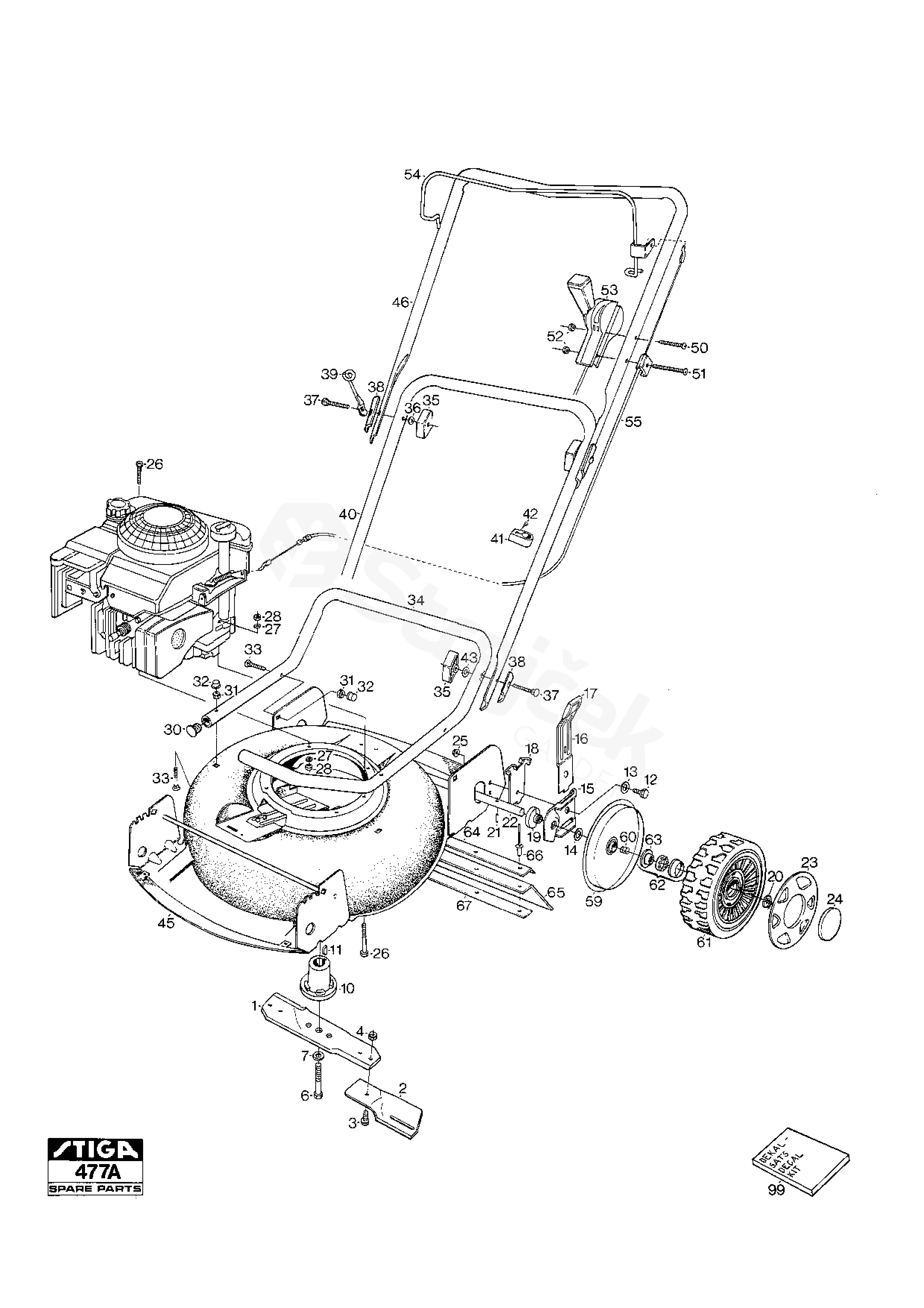

Chassis
MULTICLIP S MULTICLIP S (1994) [11-3615-18]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP S (1994) [11-3615-18]
1 Blade Bar Assy 1111-1603-01
2 Blade Kit (Mulcher) 1111-9049-01
3 Screw 9997-0816-16
6 Screw 9987-5257-12
7 Washer 9696-0011-01
10 Blade Hub 1111-2142-01
11 Key 9600-0014-00
12 Bolt 1111-0545-00
13 Washer 9694-0001-00
14 Washer 9699-0069-02
15 Axle Mounting 1111-1268-01
16 Control Lever 1111-1337-01
17 Knob 1111-2549-01
18 Hole Plate 1111-0497-00
19 Bushing 1111-2057-02
20 Washer 1111-9042-01
21 Slotted Pin 9595-0182-00
22 Front Axle 1111-2526-01
23 Hub Cap 1111-2664-01
24 Wheel Cup 1111-2676-01
25 Nut 9739-0831-22
26 Screw
35 mm 		9997-0835-12
27 Washer 9683-0030-02
28 Nut 9799-0831-02
30 Plug 9403-0043-70
31 Nut 9747-0831-02
32 Ring Nut 9403-0113-00
33 Screw 9898-0835-12
34 Handlebar-lower part 1111-2962-01
35 Handle Bolt Kit (2 Pcs) 1111-9030-02
36 Washer 9699-0025-02
37 Screw 9899-3551-12
38 Reinforcement 1111-0178-00
39 Eyelink 1111-3062-01
40 Handlebar-interm 1111-2642-01
41 Cable Holder 1111-2018-01
42 Screw 9836-9216-12
43 Washer 9699-0060-02
45 Chassie 1111-2744-01
46 Handlebar-Upper Part 1111-2638-01
50 Screw
45 mm 		9948-0645-16
51 Screw
55 mm 		9948-0655-16
52 Lock Nut 9747-0631-02
53 Throttle Control 1111-2611-05
54 Control Handle 1111-2607-01
55 Cable, Thread Engine Brake 1111-2541-03
59 Wheel Cover 1111-1180-03
60 Spring-Wheel Axle 1111-1138-01
61 Wheel 1111-2665-01
62 Ball Bearing 1111-9047-01
63 Outer Ring 1111-1184-01
64 Mounting bar
3415,3914 		1111-0932-01
65 Rubber Plate
3415,3914 		1111-0933-02
66 Rivet
3415,3914 		1151-0300-01
67 Mounting bar
3415,3914 		1111-0931-02
99 Label Kit 1111-2893-02
