STIGA
>
Lawn Mower
>
MULTICLIP S MULTICLIP S (1994) [11-3615-18]
>
Transmission
Back to
MULTICLIP S
MULTICLIP S (1994) [11-3615-18]
Transmission
MULTICLIP S
MULTICLIP S (1994) [11-3615-18]

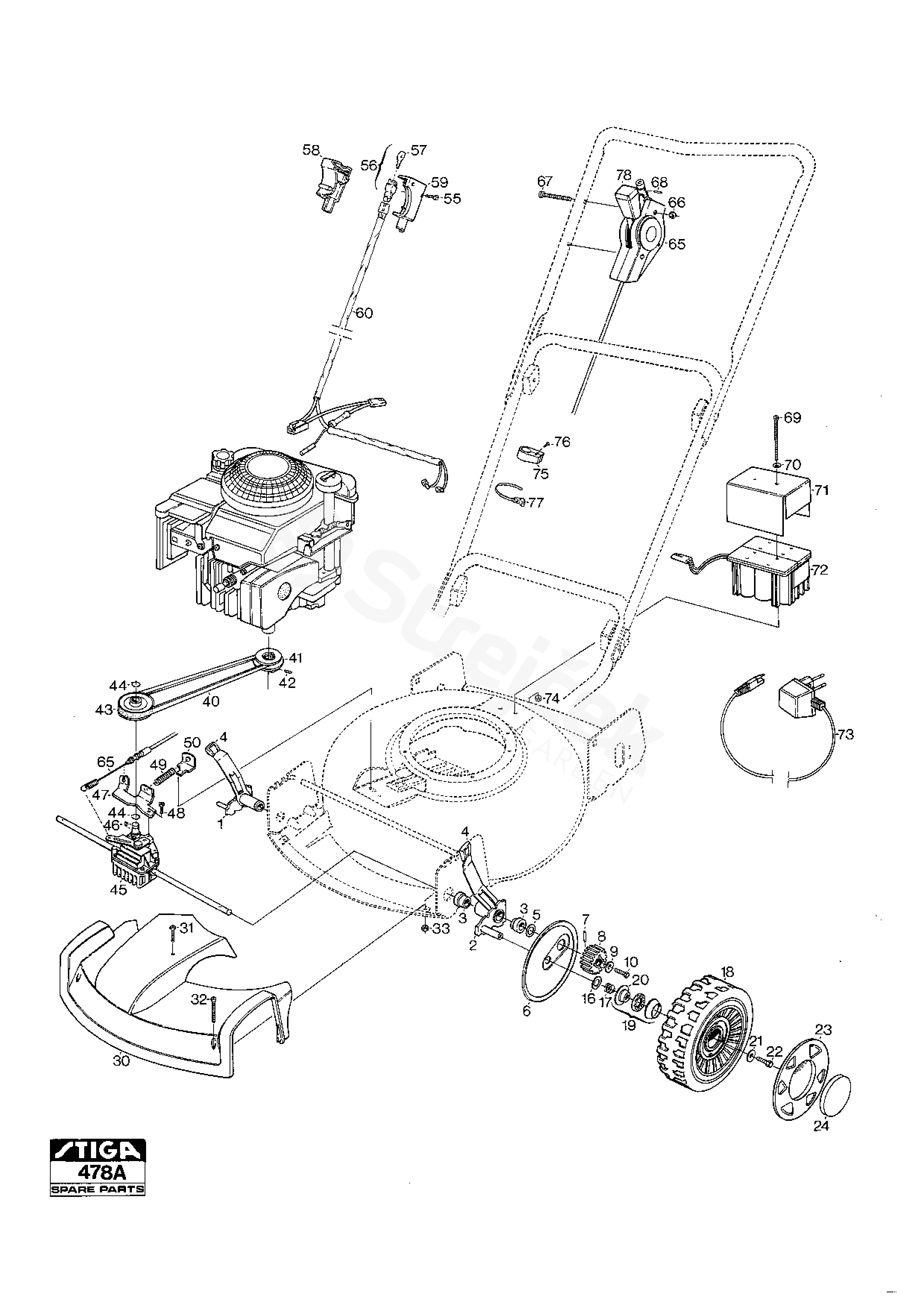

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP S (1994) [11-3615-18]
1
Wheel Mounting R.H.
1111-2910-01
2
Wheel Mounting L.H.
1111-2911-01
3
Bearing
1111-2909-01
4
Knob
1111-2549-01
5
Washer
1111-1456-01
6
Cover Plate
1111-2561-01
7
Pin
1111-2382-01
8
Gear Wheel
1111-2635-01
9
Flat washer
9699-0100-02
10
Screw
9997-0612-16
16
Washer
9699-0037-02
17
Spring-Wheel Axle
1111-1138-01
18
Wheel
1111-2665-01
19
Ball Bearing
1111-9047-01
20
Outer Ring
1111-1184-01
21
Flat washer
9699-0100-02
22
Screw
9997-0612-16
23
Hub Cap
1111-2664-01
24
Wheel Cup
1111-2676-01
30
Front Cover (Yellow)
1111-2633-01
31
Screw
30 mm
9943-0530-16
32
Screw
40 mm
9943-0540-16
33
Nut
9739-0531-22
40
Drive Belt
1111-9060-01
41
Belt Pulley
1111-2127-01
42
Screw
9911-0612-16
43
Belt Pulley
1111-2565-01
44
Circlip
9659-0050-04
45
Transmission assy
1111-2641-01
46
Key
F000-3475-00
47
Cable Holder
1111-2636-01
48
Screw
9943-0510-16
49
Brake Spring
1134-1023-00
50
Spring Stop
1111-2621-01
65
Clutch Control
1111-2551-03
66
Lock Nut
9747-0631-02
67
Screw
9948-0655-16
68
Locating Pin
9595-0160-00
77
Cable Holder
9579-0008-00
78
Knob
1111-1987-02
