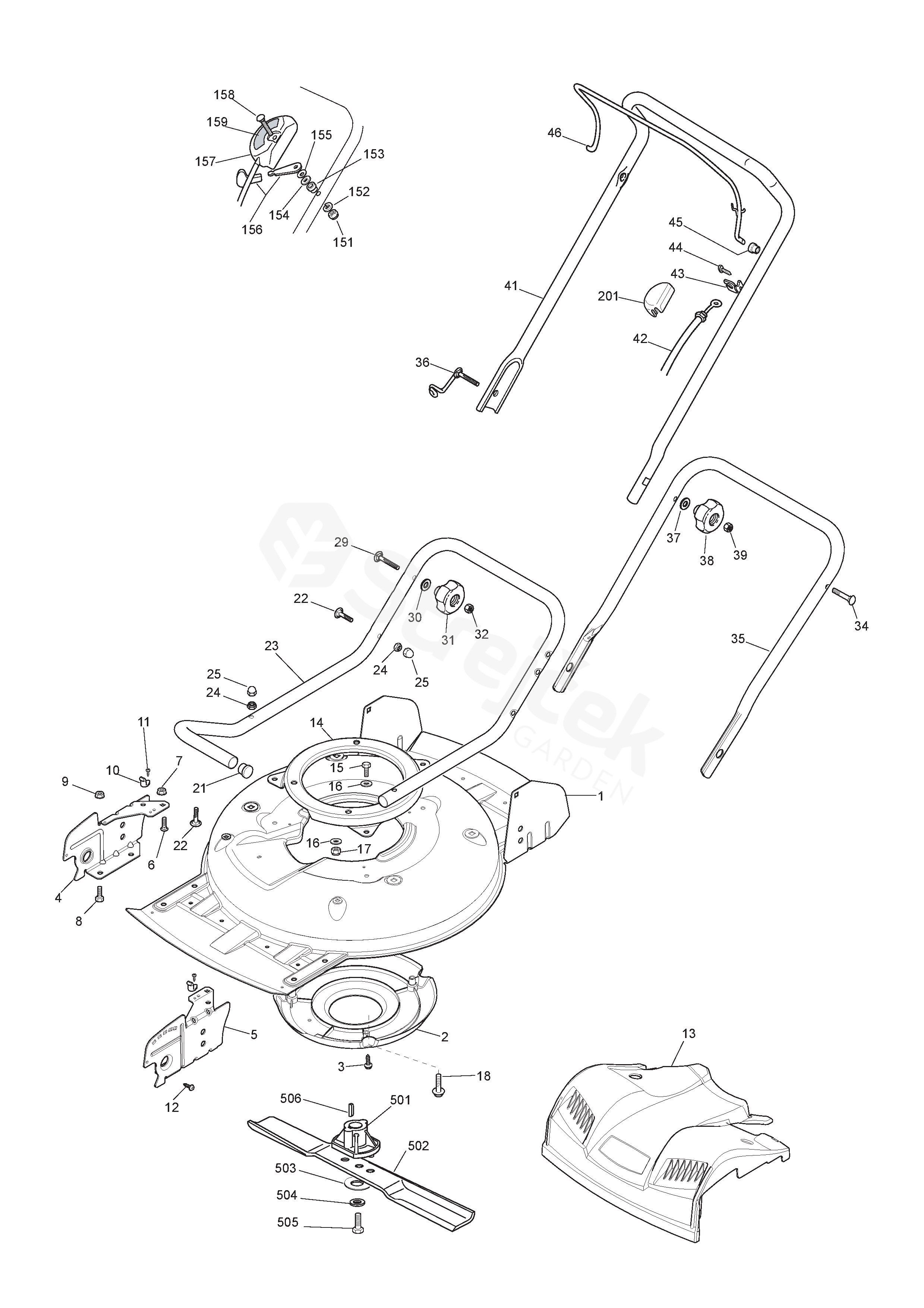

MULTICLIP 50 PLUS MULTICLIP 50 PLUS (2006) [11-5234-11]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MULTICLIP 50 PLUS (2006) [11-5234-11]

1	Chassis, Yellow Hammerite	1136-2385-01
2	Protection	1136-2315-01
3	Screw	1136-0615-01
4	Bracket-Rh	1136-2368-01
5	Bracket-Lh	1136-2369-01
6	Screw	9898-0616-16
7	Nut	9739-0631-22
10	Fairlead	1136-2304-01
11	Screw	1136-2255-01
12	Screw	9847-8019-16
13	Front Cover-Grey	1136-2357-01
14	Flange	1136-2400-01
15	Screw	9997-0816-16
16	Washer	9699-0056-02
17	Nut	9739-0831-22
18	Screw	9955-3732-12
21	Cap	1136-0061-01
22	Screw	9898-0835-12
23	Handle-Lower	1136-2395-01
24	Nut	9747-0831-02
25	Ring Nut	9403-0113-00
29	Screw	1136-0620-01
30	Washer	1136-0693-01
31	Knob	1117-3194-01
32	Nut	9799-0831-02
35	Handle-Middle Part	1136-2396-01
36	Screw	1136-0747-01
41	Handle-Upper	1136-1533-01
42	Cable, Thread Engine Brake	1136-2373-01
43	Support	1136-1523-01
44	Screw	1136-1506-01
45	Bushing	1136-0640-01
46	Lever, Thread Engine Brake	1136-0746-01
151	Nut	1136-0604-01
152	Grower	1136-0611-01
153	Spacer	1136-0659-01
154	Washer	9699-0035-02
155	Spring washer	1136-0606-01
156	Throttle Lever	1136-0766-01
157	Throttle Cable	1136-0764-01
158	Screw	1136-0618-01
159	Label	1136-1857-01
201	Protection	1136-0691-01
501	Blade Holder	1136-0672-01
502	Blade	1111-9155-01
503	Elastic Washer	1136-0083-01
504	Washer	1136-0015-01
505	Screw	1136-0616-01
506	Key	9600-0014-00
