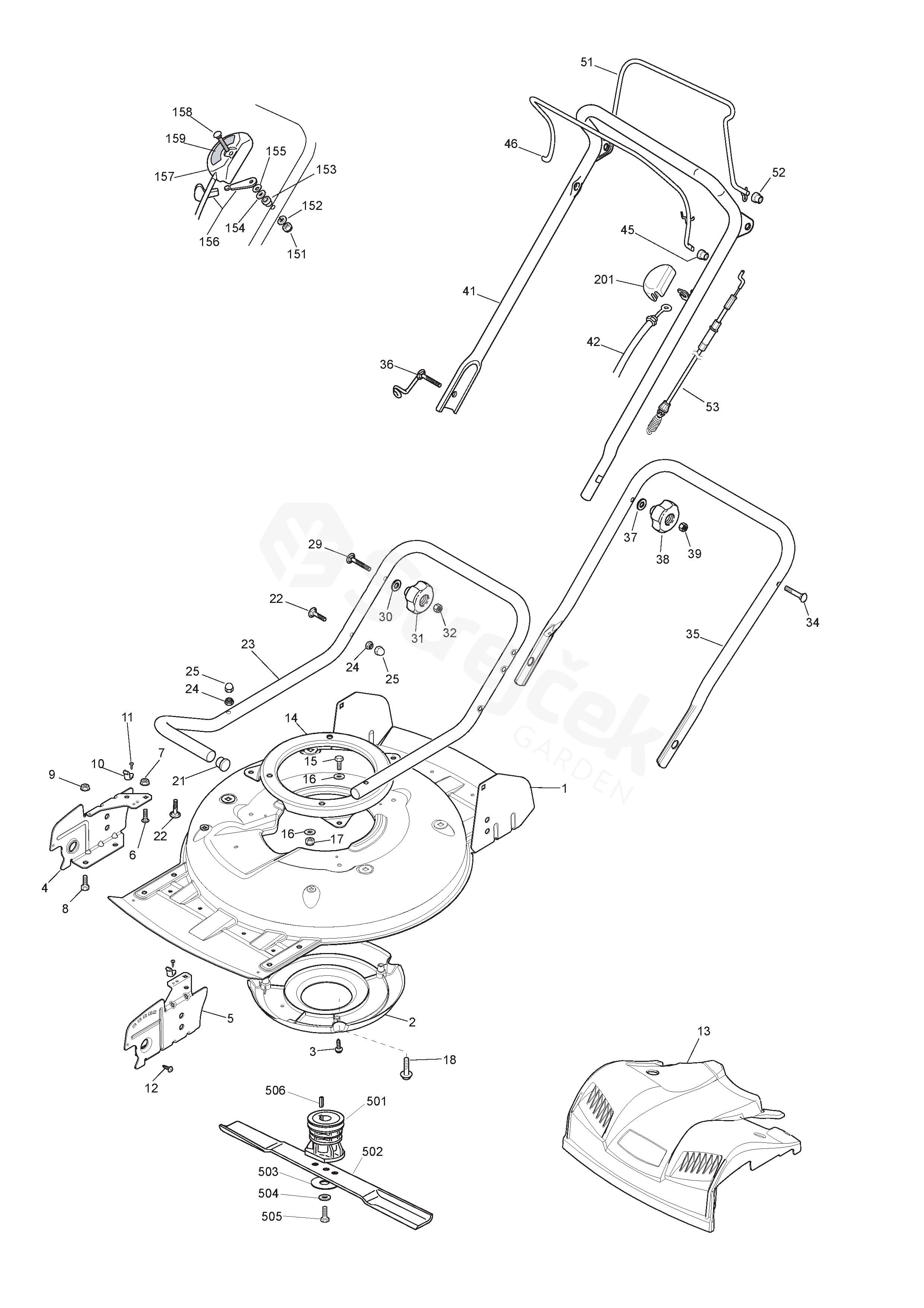

MULTICLIP 50 S PLUS MULTICLIP 50 S PLUS (2006) [11-5681-51]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MULTICLIP 50 S PLUS (2006) [11-5681-51]

1	Chassis, Yellow Hammerite	1136-2385-01
2	Protection	1136-2315-01
3	Screw	1136-0615-01
4	Bracket-Rh	1136-2368-01
5	Bracket-Lh	1136-2369-01
6	Screw	9898-0616-16
7	Nut	9739-0631-22
10	Fairlead	1136-2304-01
11	Screw	1136-2255-01
12	Screw	9847-8019-16
13	Front Cover-Grey	1136-2357-01
14	Flange	1136-2400-01
15	Screw	9997-0816-16
16	Washer	9699-0056-02
17	Nut	9739-0831-22
18	Screw	9955-3732-12
21	Cap	1136-0061-01
22	Screw	9898-0835-12
23	Handle-Lower	1136-2395-01
24	Nut	9747-0831-02
25	Ring Nut	9403-0113-00
29	Screw	1136-0620-01
30	Washer	1136-0693-01
31	Knob	1117-3194-01
32	Nut	9799-0831-02
35	Handle-Middle Part	1136-2396-01
36	Screw	1136-0747-01
41	Handle-Upper	1136-0763-01
42	Cable, Thread Engine Brake	1136-1358-01
45	Bushing	1136-0640-01
46	Lever, Thread Engine Brake	1136-0746-01
51	Drive Lever	1136-0745-01
52	Bushing	1136-0639-01
53	Clutch Cable	1136-2377-01
201	Protection	1136-0691-01
501	Blade Holder	1111-9120-01
502	Blade	1111-9155-01
503	Elastic Washer	1136-0083-01
504	Washer	1136-0015-01
505	Screw	1136-0616-01
506	Key	9600-0014-00
