Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Lawn Mower
>
MULTICLIP PLUS 50 SEV B MULTICLIP PLUS 50 SEV B (2016)
>
Transmission
Back to
MULTICLIP PLUS 50 SEV B
MULTICLIP PLUS 50 SEV B (2016)
Transmission
MULTICLIP PLUS 50 SEV B
MULTICLIP PLUS 50 SEV B (2016)

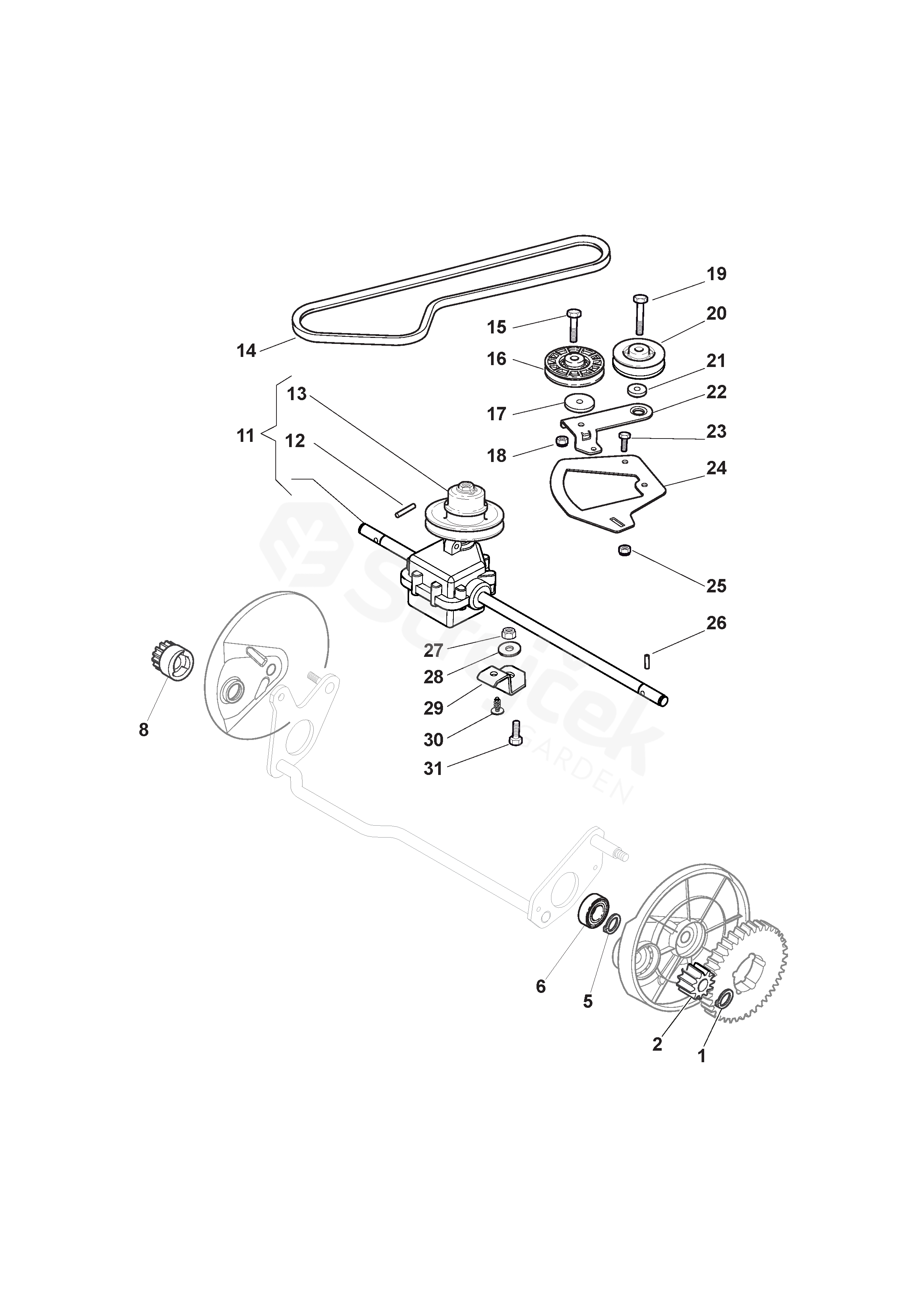

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP PLUS 50 SEV B (2016)
1
Seeger
112608600/0
2
Left pinion
122570120/1
5
Seeger
112608600/0
6
Bearing
119216035/0
8
Right Pinion
122570110/1
11
Gear Box
181003098/2
12
Elastic Pin
112645700/0
13
Pulley
122601932/0
14
Belt
Trapezoidal belt Z30; From 01-September-2017
135063902/0
15
Screw
112689500/0
16
Pulley
122601914/0
17
Washer
322680009/0
18
Nut
112154510/0
19
Screw
112674701/0
20
Pulley
122601915/0
21
Washer
122671656/0
22
Lever
322320007/0
23
Screw
112791011/0
24
Pulley Lever Support
322806629/0
25
Nut
112154510/0
26
Pin
122753000/0
27
Nut
112155000/0
28
Washer
112523060/0
29
Plate
322551655/0
30
Screw
112728704/1
31
Screw
112793102/0
