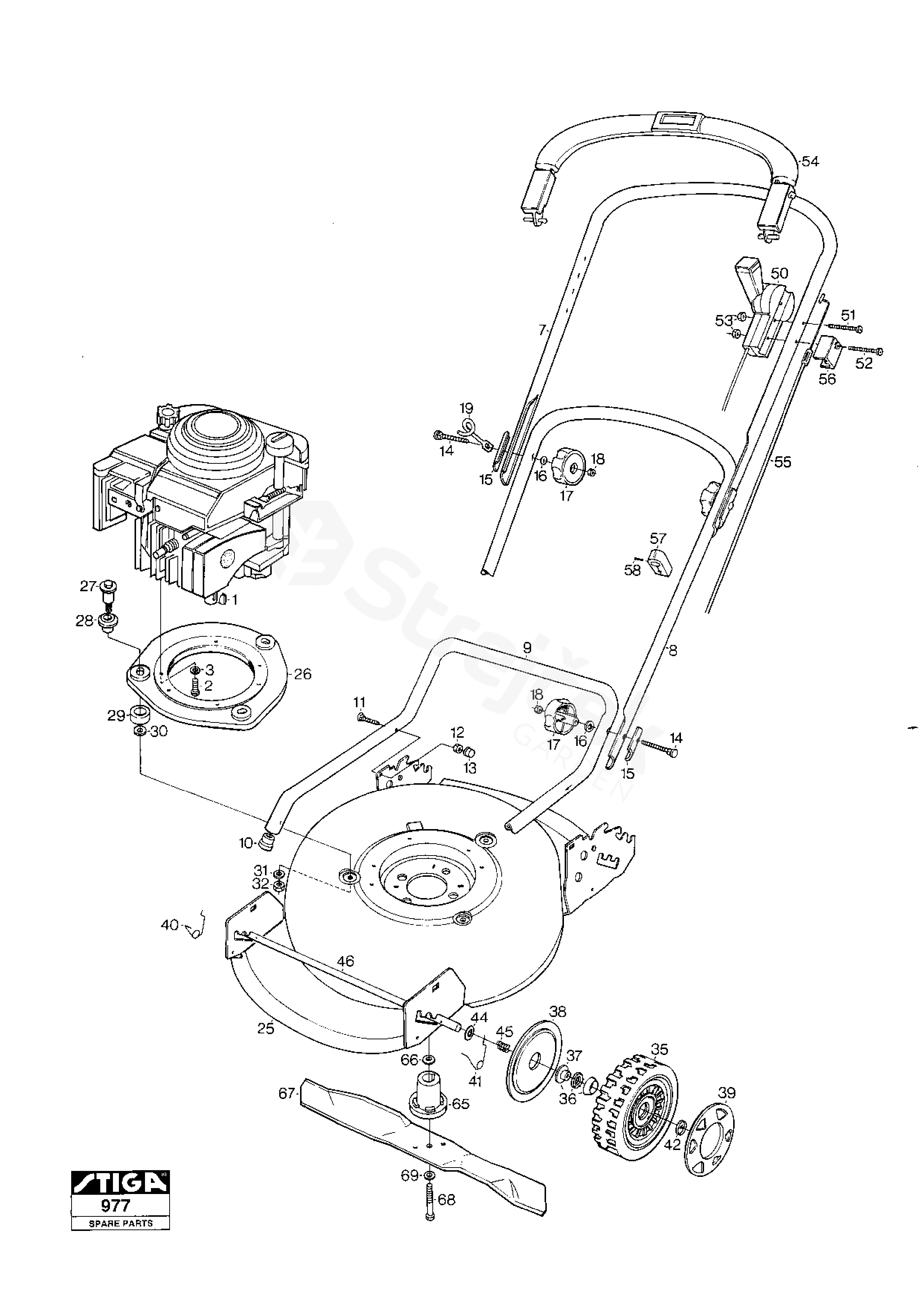

MULTICLIP PRO 46 MULTICLIP PRO 46 (1999)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MULTICLIP PRO 46 (1999)

1	Key	9600-0014-00
2	Screw	9955-3732-12
3	Washer	9699-0029-02
7	Handlebar-Upper Part	1111-3243-01
8	Handlebar-Interm.Part	1111-2961-01
9	Handlebar-lower part	1111-3264-01
10	Plug	9403-0043-70
11	Screw	9898-0835-12
12	Nut	9747-0831-02
13	Ring Nut	9403-0113-00
14	Screw	9899-3551-12
15	Reinforcement	1111-0178-00
16	Washer	9699-0025-02
17	Locking Knob	1111-3023-01
18	Nut	9795-3531-02
19	Eyelink	1111-3062-01
25	Chassis, Yellow	1111-3265-01
26	Engine Mounting	1111-2460-01
27	Shoulder Bolt	1111-2454-01
28	Isolation Washer	1111-2453-01
29	Rubber Damper	1111-2452-01
30	Washer	9699-0056-02
31	Washer	9699-0062-02
32	Nut	9747-0831-02
35	Wheel	1111-2784-01
36	Ball Bearing	1111-9047-01
37	Outer Ring	1111-1184-01
38	Wheel Cover	1111-2785-01
39	Hub Cap (175) Yellow	1111-3084-01
40	Spring	1111-9035-01
41	Spring	1111-1589-01
42	Washer	1111-9042-01
44	Washer	1111-1593-01
45	Spring-Wheel Axle	1111-1138-01
46	Wheel Axle	1111-1590-01
50	Throttle Control	1111-3253-01
51	Screw L = 45 mm	9948-0645-16
52	Screw L = 60 mm	9948-0660-16
53	Lock Nut	9747-0631-02
54	Control Handle (Eng.Brake	1111-2953-01
55	Cable, Thread Engine Brake	1111-2968-01
56	Cable Holder	1111-2969-01
57	Cable Holder	1111-2018-01
58	Screw	9836-9216-12
65	Blade Hub	1111-9067-01
66	Washer	9699-0035-02
67	Blade	1111-9078-01
68	Screw	9987-5257-12
69	Washer	9696-0011-01
