MULTICLIP PRO 46 SVAN MULTICLIP PRO 46 SVAN (2005)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MULTICLIP PRO 46 SVAN (2005)

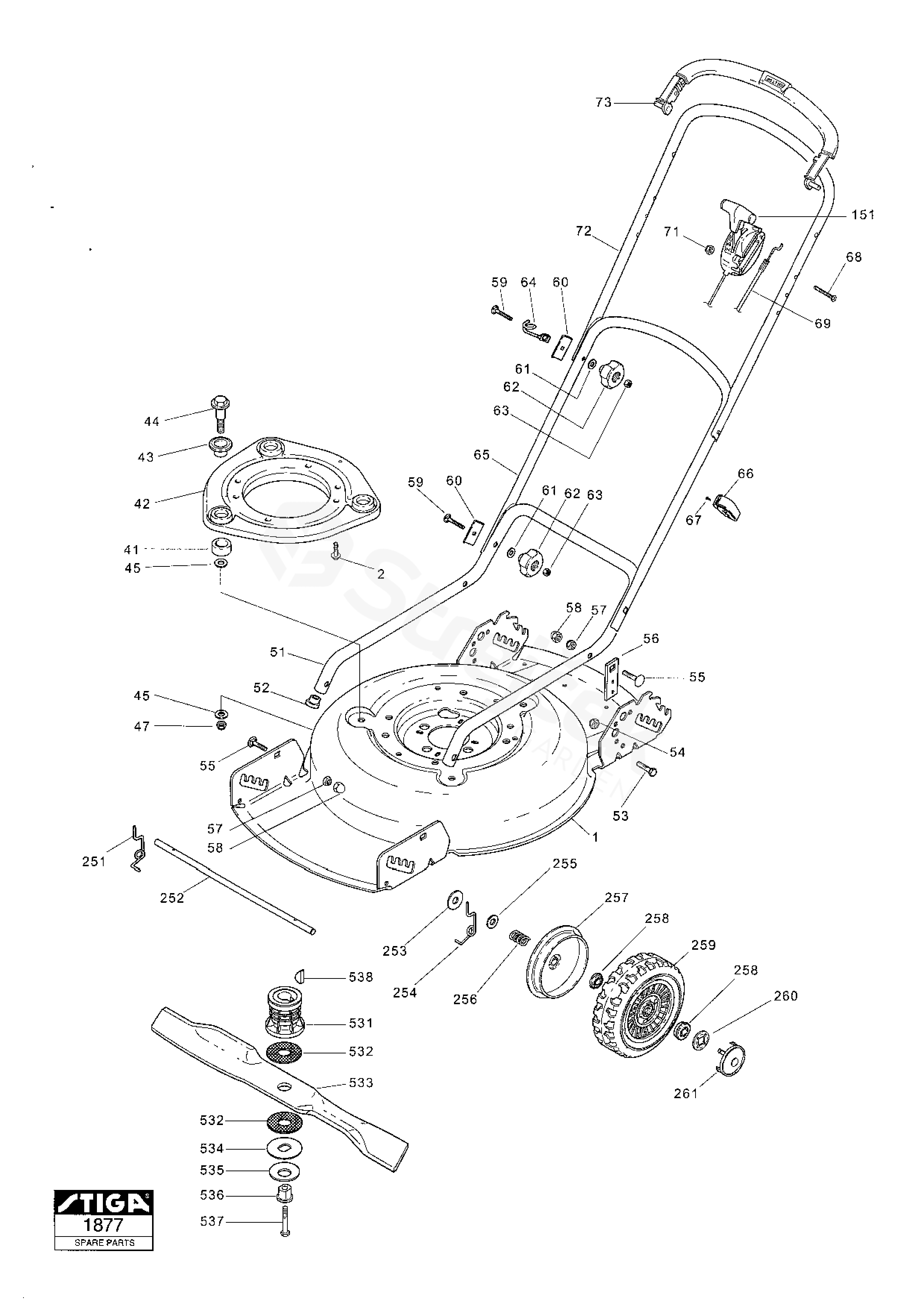

1	Grey Deck	1111-3356-02
2	Screw	9955-3732-12
41	Rubber Damper	1111-2452-01
42	Engine Mounting (Yellow)	1111-3323-03
43	Isolation Washer	1111-2453-01
44	Shoulder Bolt	1111-2454-01
45	Washer	9699-0056-02
47	Nut	9747-0831-02
51	Handlebar-Lower Part (Yellow)	1111-3264-02
52	Plug	9403-0043-70
53	Screw	9997-0612-16
54	Lock Nut	9747-0631-02
55	Screw	9898-0835-12
56	Handlebar Attachment	1111-3310-01
57	Nut	9747-0831-02
58	Ring Nut	9403-0113-00
59	Screw	9899-3557-12
60	Reinforcement	1111-0178-00
61	Washer	9699-0028-02
62	Locking Knob	1111-3023-01
63	Nut	9795-3531-02
64	Eyelink	1111-3062-01
65	Handlebar-Middle Part (Yellow)	1111-2961-02
66	Cable Holder	1111-2018-01
67	Screw	9836-9216-12
68	Screw	9948-0660-16
69	Cable, Thread Engine Brake	1111-3622-01
71	Lock Nut	9747-0631-02
72	Handlebar-Upper Part (Yellow)	1111-3243-02
73	Control Handle-Engine Brake	1111-3618-01
151	Throttle Cable	1111-3351-01
251	Spring Inkl. pos 251,254,260	1111-9035-01
252	Shaft	1111-3312-01
253	Washer	1111-1593-01
254	Spring	1111-1589-01
255	Washer	9699-0037-02
256	Spring	1111-3060-01
257	Wheel Cover	1111-2782-01
258	Ball Bearing	1111-3296-01
259	Wheel Inkl. pos 258	1111-2665-01
260	Starlock	9675-0017-02
261	Hub Cap (Black)	1111-3444-02
531	Blade Hub	1111-9126-01
532	Friction Disc	1111-3480-01
533	Blade	1111-9133-01
534	Washer	1111-3481-01
535	Disc Washer	1111-3482-01
536	Bushing	1111-3483-01
537	Screw	9987-5270-12
538	Key	9600-0014-00
