Spare parts
Everything for your machines
Blade

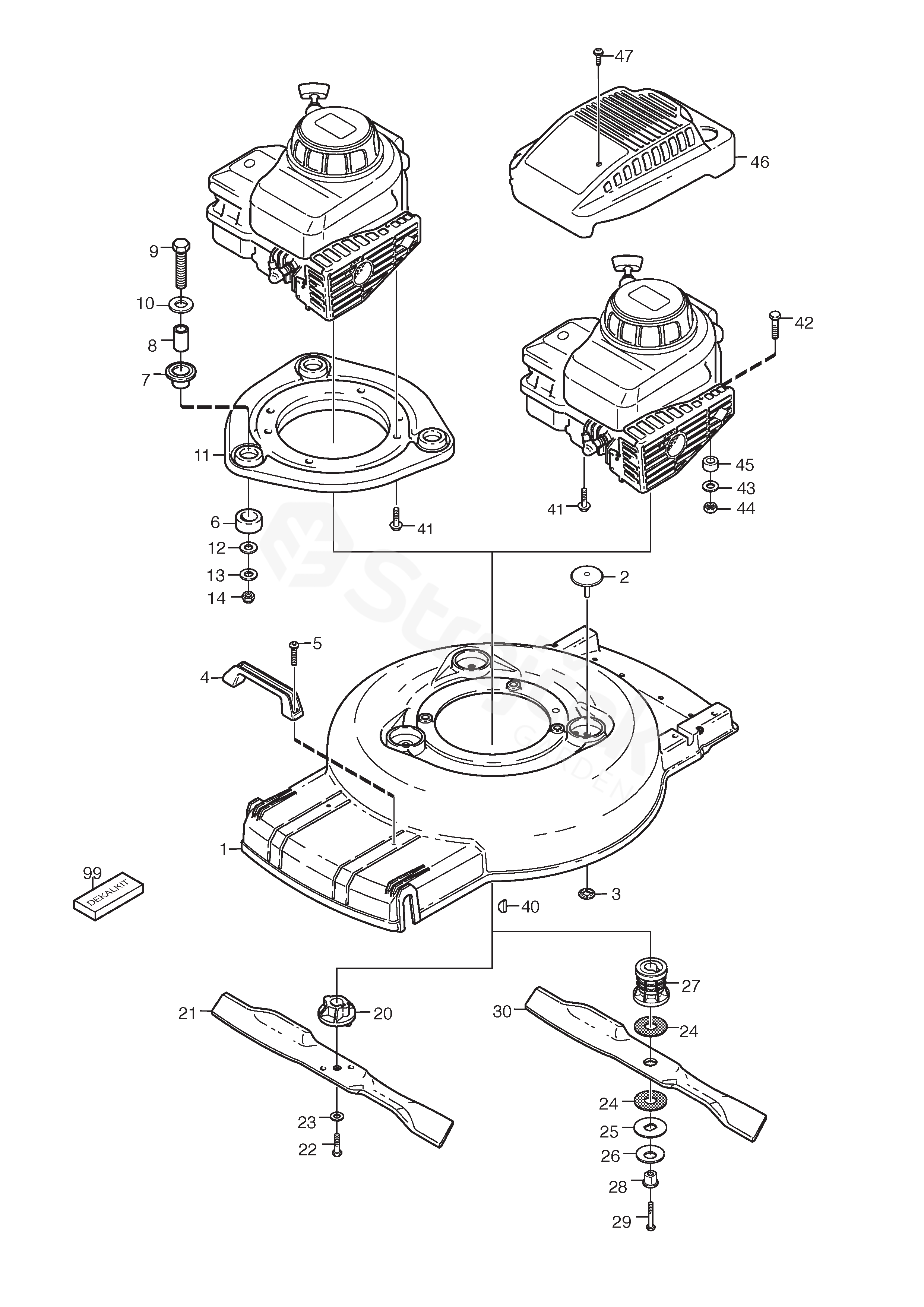

MULTICLIP PRO 48 MULTICLIP PRO 48 (2003)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP PRO 48 (2003)
1 Chassis (Hammerite) 1111-2456-03
4 Handle (Yellow) 9403-0037-69
5 Screw 9943-0516-16
6 Rubber Damper 1111-2452-01
7 Isolation Washer 1111-2453-01
8 Spacer 1134-1565-12
9 Screw 9997-0850-16
10 Washer 9699-0122-02
11 Engine Mounting (Yellow) 1111-3323-03
12 Washer 9699-0062-02
13 Washer 9699-0056-02
14 Nut 9747-0831-02
24 Friction Disc 1111-3480-01
25 Washer 1111-3481-01
26 Disc Washer 1111-3482-01
27 Blade Holder 1111-3510-01
28 Bushing 1111-3483-01
29 Screw 9987-5264-12
30 Blade 1111-3508-01
40 Key 9600-0014-00
41 Screw 9955-3732-12
99 Label kit 1111-3595-06
