STIGA
>
Lawn Mower
>
MULTICLIP PRO 50 SVAN MULTICLIP PRO 50 SVAN (2006)
>
Chassis Handle
Back to
MULTICLIP PRO 50 SVAN
MULTICLIP PRO 50 SVAN (2006)

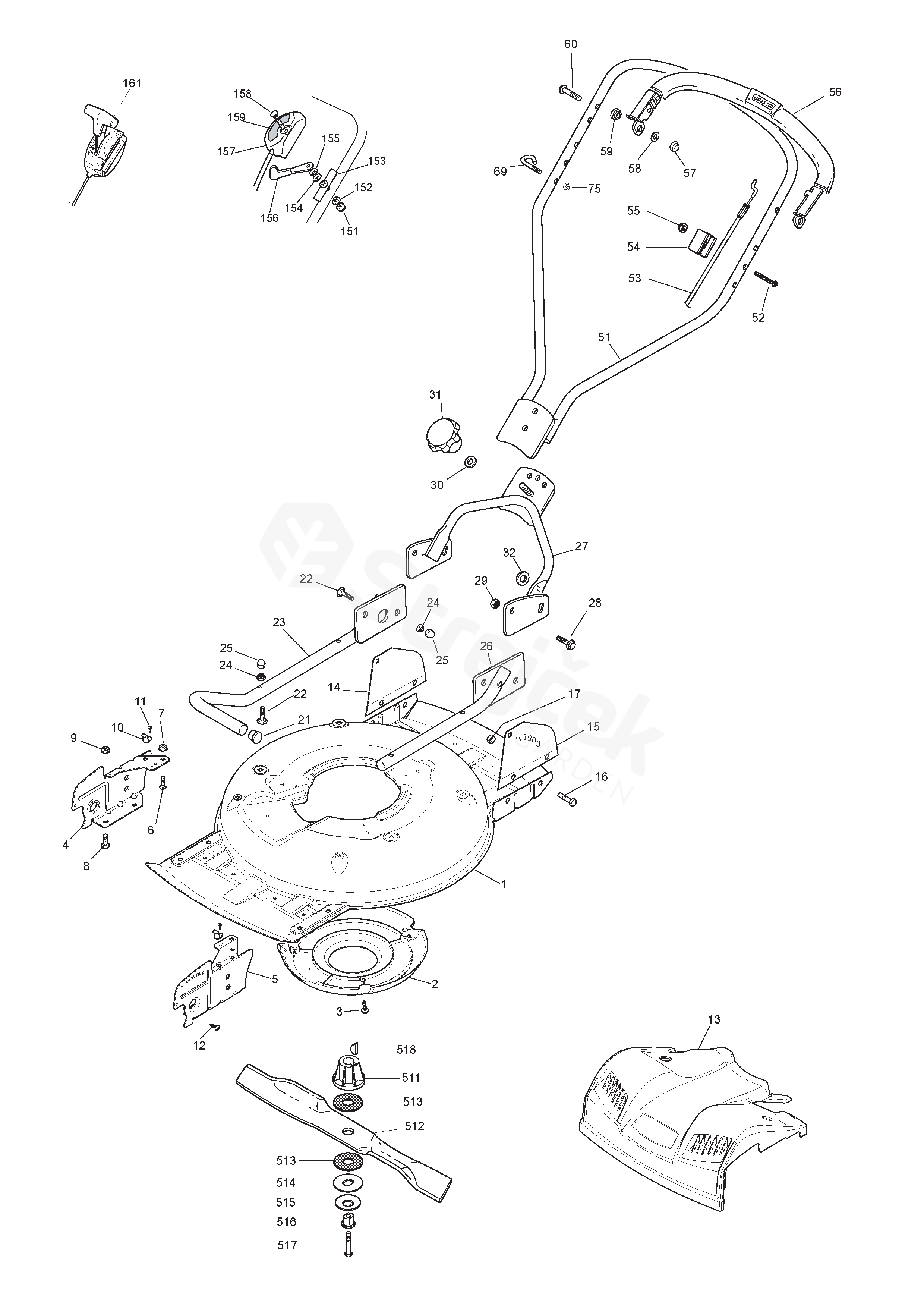

Chassis Handle
MULTICLIP PRO 50 SVAN
MULTICLIP PRO 50 SVAN (2006)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP PRO 50 SVAN (2006)
1
Chassis-Grey
1136-2386-01
2
Protection
1136-2315-01
3
Screw
1136-0615-01
4
Bracket-Rh
1136-2368-01
5
Bracket-Lh
1136-2369-01
6
Screw
9898-0616-16
7
Nut
9739-0631-22
8
Screw
9997-0816-16
9
Nut
9739-0831-22
10
Fairlead
1136-2304-01
11
Screw
1136-2255-01
12
Screw
9847-8019-16
13
Front cover-yellow
1136-2356-01
14
Plate-Rh
1136-2401-01
15
Plate-Lh
1136-2402-01
16
Screw
9997-0616-16
17
Lock Nut
9747-0631-02
21
Cap
1136-2303-01
22
Screw
1136-2299-01
23
Handle-Lower, Rh
1136-2393-01
24
Nut
9747-0831-02
25
Ring Nut
9403-0113-00
26
Handle-Lower, Lh
1136-2394-01
27
Handle-Lower Part (Yellow)
1111-3484-01
28
Screw
9997-0820-16
29
Nut
9747-0831-02
30
Washer
1136-0015-01
31
Locking Knob
1482-0163-01
32
Washer
9699-0056-02
51
Handle-Upper
1136-2391-01
52
Screw
L = 60 mm
9948-0660-16
53
Cable, Thread Engine Brake
1136-2376-01
55
Lock Nut
9747-0631-02
56
Lever
1111-3489-01
57
Lock Nut
9747-0631-02
58
Washer
9699-0060-02
59
Washer
1136-2367-01
60
Screw
9948-0645-16
69
Eye Link
1111-3063-02
75
Lock Nut
9747-0631-02
161
Throttle Cable
1136-0764-01
512
Blade
1111-9155-01
513
Friction Disc
1111-3480-01
514
Washer
1111-3481-01
515
Disc Washer
1111-3482-01
516
Bushing
1111-3483-01
517
Screw
9987-5264-12
518
Key
9600-0014-00
