MULTICLIP PRO 51 S MULTICLIP PRO 51 S (2003)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For MULTICLIP PRO 51 S (2003)

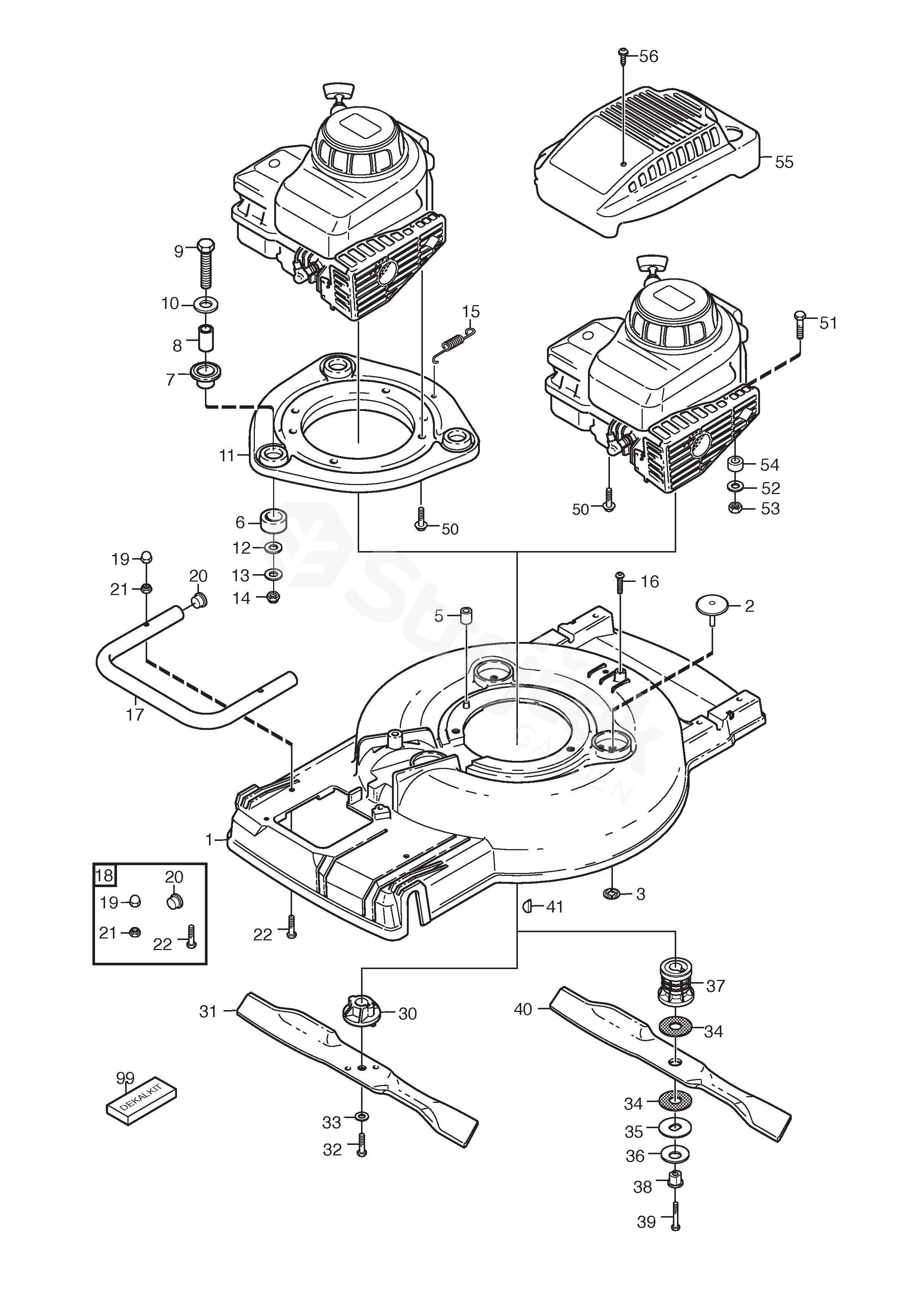

1	Chassis (Hammerite)	1111-3196-03
5	Rubber Tube	1111-2925-01
6	Rubber Damper	1111-2452-01
7	Isolation Washer	1111-2453-01
8	Spacer	1134-1565-12
9	Screw	9997-0850-16
10	Washer	9699-0122-02
11	Engine Mounting (Yellow)	1111-3323-03
12	Washer	9699-0062-02
13	Washer	9699-0056-02
14	Nut	9747-0831-02
15	Spring	1111-2455-01
16	Screw	9943-0610-16
17	Tubular Frame	1111-3399-01
18	Assy Kit Tubular Frame Inkl. pos 19 - 22	1111-3400-01
19	Ring Nut	9403-0113-01
20	Plug	9403-0043-70
21	Nut	9746-0631-12
22	Screw	9997-0635-12
34	Friction Disc	1111-3480-01
35	Washer	1111-3481-01
36	Disc Washer	1111-3482-01
37	Blade Hub	1111-3492-01
38	Bushing	1111-3483-01
39	Screw	9987-5270-12
40	Blade	1111-3508-02
41	Key	9600-0014-00
50	Screw	9955-3732-12
99	Label kit	1111-3595-08
