STIGA
>
Lawn Mower
>
MULTICLIP PRO 51 S MULTICLIP PRO 51 S (2004) [11-8896-50]
>
Deck
Back to
MULTICLIP PRO 51 S
MULTICLIP PRO 51 S (2004) [11-8896-50]

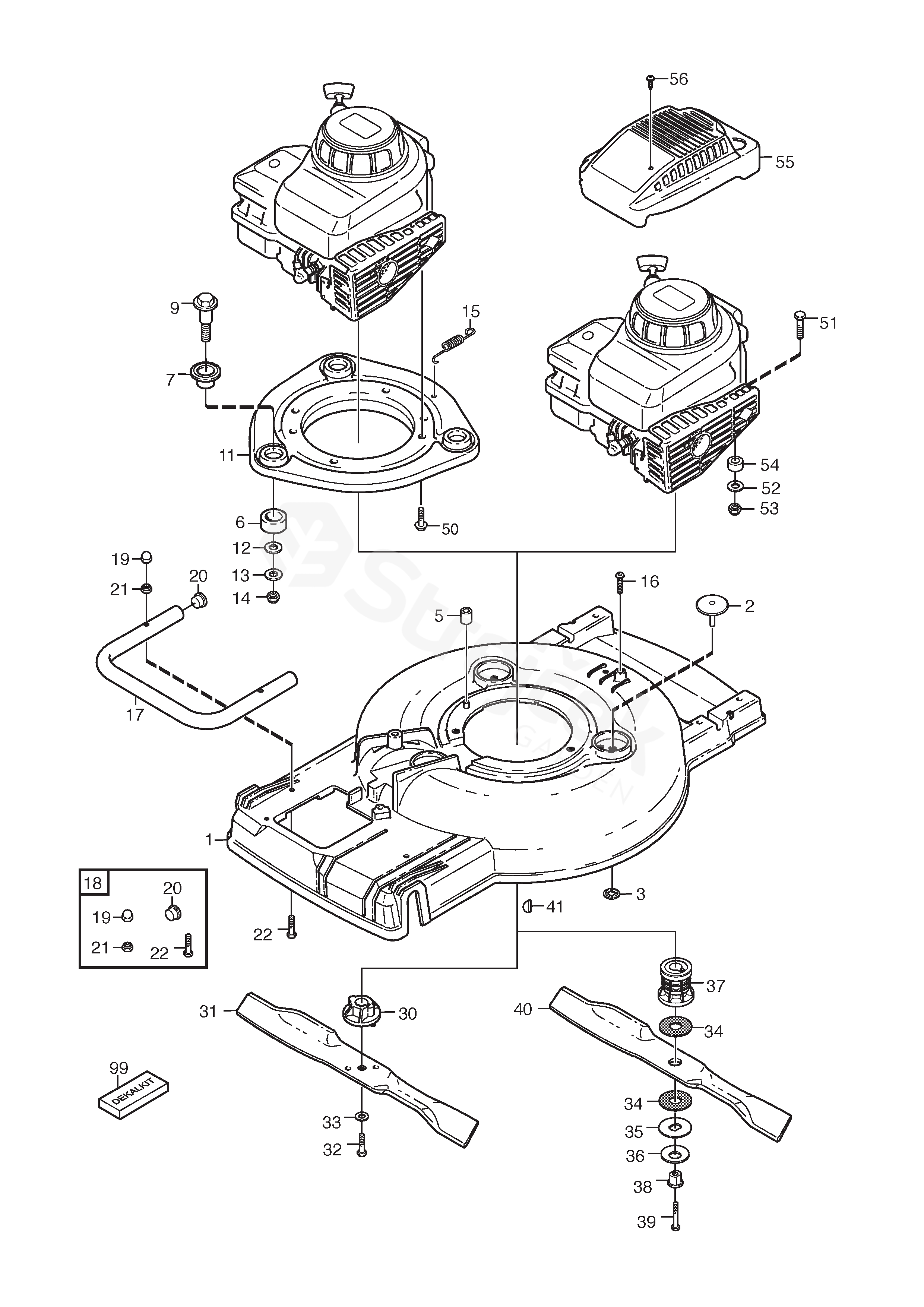

Deck
MULTICLIP PRO 51 S
MULTICLIP PRO 51 S (2004) [11-8896-50]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP PRO 51 S (2004) [11-8896-50]
1
Chassis (Hammerite)
1111-3196-03
5
Rubber Tube
1111-2925-01
6
Rubber Damper
1111-2452-01
7
Isolation Washer
1111-2453-01
9
Shoulder Bolt
1111-2454-01
11
Engine Mounting (Yellow)
1111-3323-03
12
Washer
9699-0062-02
13
Washer
9699-0056-02
14
Nut
9747-0831-02
15
Spring
1111-2455-01
16
Screw
9943-0610-16
17
Tubular Frame
1111-3399-01
18
Assy Kit Tubular Frame
Inkl. pos 19 - 22
1111-3400-01
19
Ring Nut
9403-0113-01
20
Plug
9403-0043-70
21
Nut
9746-0631-12
22
Screw
9997-0635-12
34
Friction Disc
1111-3480-01
35
Washer
1111-3481-01
36
Disc Washer
1111-3482-01
37
Blade Hub
1111-9126-01
38
Bushing
1111-3483-01
39
Screw
9987-5270-12
40
Blade
1111-9132-01
41
Key
9600-0014-00
50
Screw
9955-3732-12
99
Label kit
1111-3595-08
