STIGA
>
Lawn Mower
>

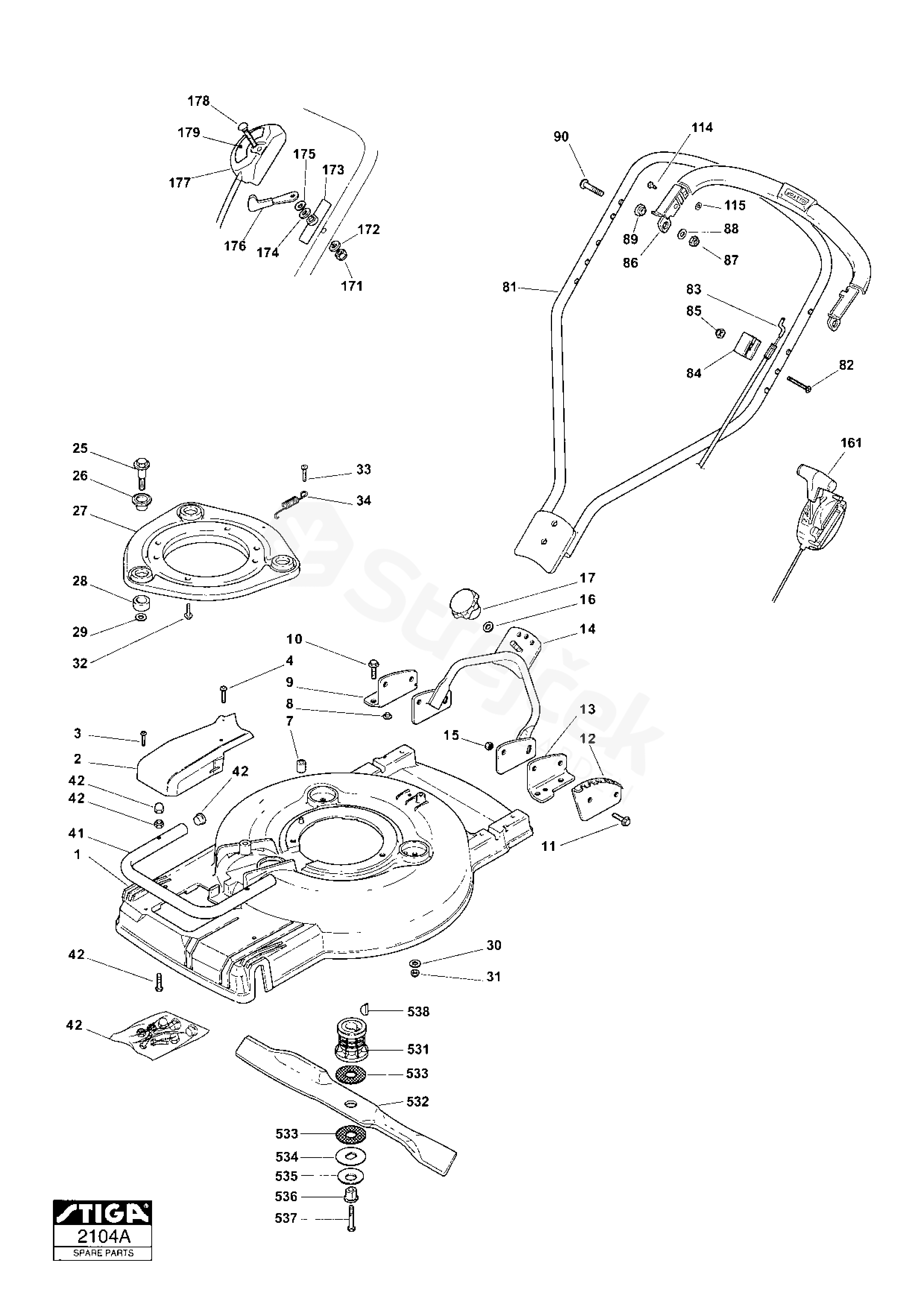

MULTICLIP PRO 53 S SVAN MULTICLIP PRO 53 S SVAN (2007) [11-8804-53]
>
Chassis Handle
Back to
MULTICLIP PRO 53 S SVAN
MULTICLIP PRO 53 S SVAN (2007) [11-8804-53]
Chassis Handle
MULTICLIP PRO 53 S SVAN
MULTICLIP PRO 53 S SVAN (2007) [11-8804-53]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MULTICLIP PRO 53 S SVAN (2007) [11-8804-53]
2
Belt Protection
322060216/0
3
Screw
112735657/0
4
Screw
112735651/0
7
Grommet
322250013/0
8
White Cap
322820054/0
9
Right Bracket
322778417/0
10
Screw
112735595/0
11
Screw
112800815/0
12
Sector, Height Adjustment
322735569/0
13
Bracket, Left
322778415/0
14
Handle Lower Part
381006361/0
15
Nut
112293200/0
16
Washer
112523080/0
17
Knob
322399813/0
25
Pin
122524329/0
26
Washer
322672201/0
27
Engine Flange
381207220/0
28
No Vibrations Rubber
322250012/0
29
Washer
322672201/0
30
Washer
122671651/0
31
Nut
112155000/0
32
Screw
112735108/0
33
Screw
112791400/0
34
Spring
122450444/0
41
Tube
322869713/0
42
Outfit, Screws
381008657/0
81
Handle, Upper Part Yellow
381006363/1
82
Screw
112727786/0
83
Cable, Thread Engine Brake
Honda
181000733/0
85
Nut
112154510/0
86
Lever, Engine Brake
381003318/1
87
Nut
112154510/0
88
Washer
112521330/0
89
Washer
122671660/1
90
Screw
112727784/0
114
Pin
122524342/0
115
Elastic Washer
112604897/0
161
Throttle Cable
181007130/0
531
Blade Hub
1111-9126-01
532
Blade
1111-9132-01
533
Washer
322672110/1
534
Washer
322672105/0
535
Cup Spring
112508120/0
536
Bushing
122041940/0
537
Screw
112736850/0
538
Key
112139100/0
