Spare parts > STIGA > Lawn Mower > MULTICLIP PRO 53 S4 SVAN MULTICLIP PRO 53 S4 SVAN (2012) > Transmission
Back to

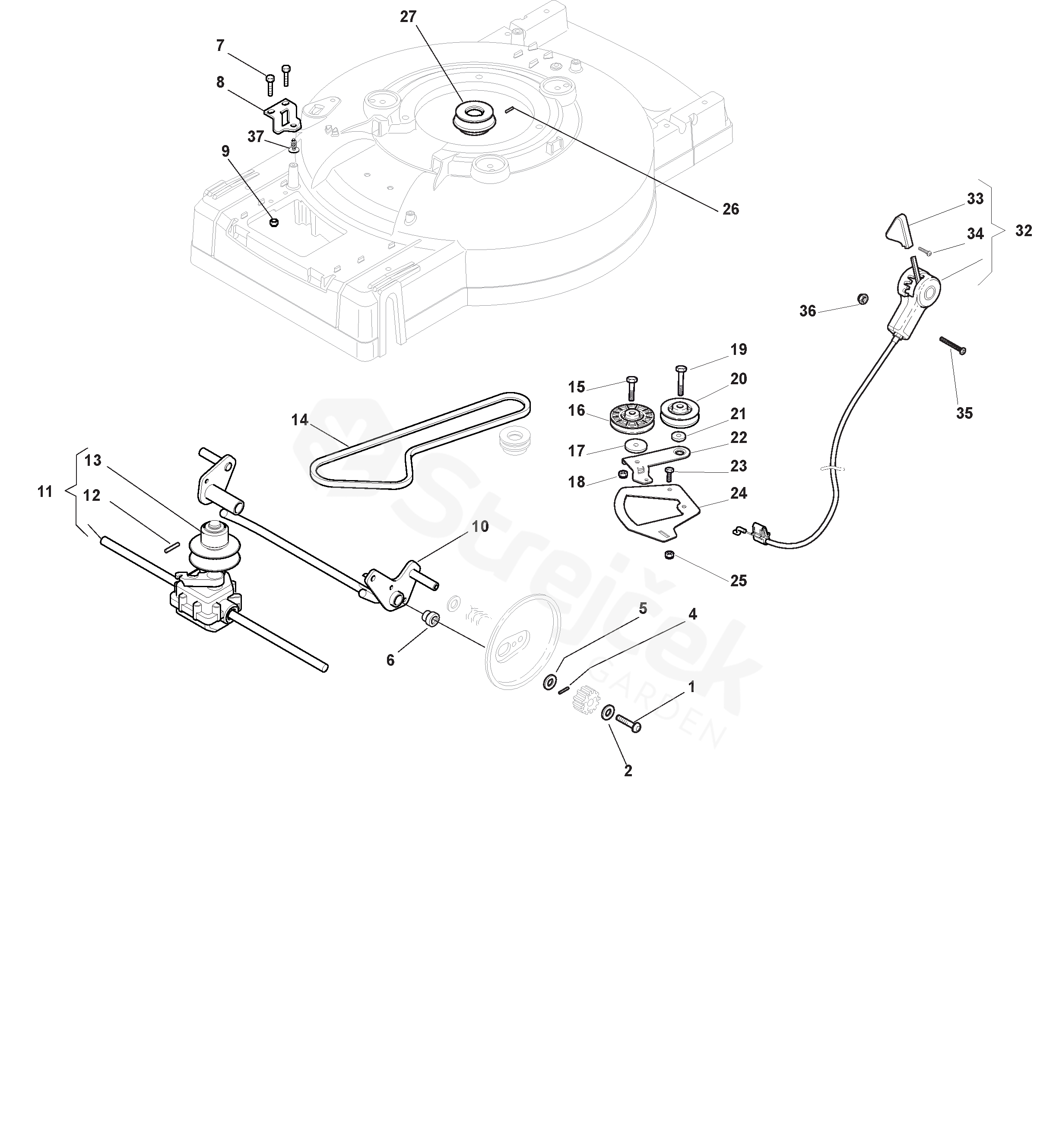

Transmission
MULTICLIP PRO 53 S4 SVAN MULTICLIP PRO 53 S4 SVAN (2012)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP PRO 53 S4 SVAN (2012)
1 Screw 112735662/0
2 Washer 112521460/0
4 Pin 122753002/0
5 Washer 122671661/0
6 Bushing 122038406/0
7 Screw 112728704/0
8 Plate 322551661/0
10 Axle, Front Wheels 381002833/2
11 Gear Box 181003101/2
12 Elastic Pin 112645700/0
13 Belt Pulley 122601916/0
14 Belt 135064383/0
15 Screw 112674701/0
16 Pulley 122601914/0
17 Washer 322680009/0
18 Nut 112154510/0
19 Screw 112689500/0
20 Pulley 122601915/0
21 Washer 122671656/0
22 Lever 322320007/0
23 Screw 112791011/0
24 Pulley Lever Support 322806629/0
26 Grub Screw 112714312/0
27 Pulley, Crankshaft Ø 25 122601921/0
32 Speed Control Ass.Y 381007112/0
33 Knob 322399820/0
34 Screw 112728300/0
35 Screw 112727787/0
37 Screw 112728704/1
