Spare parts > STIGA > Lawn Mower > PRO 4 PRO 48 (AVVIBRERAD) (1989) [11-8316-14] > (W. Vibration Damper)
Back to

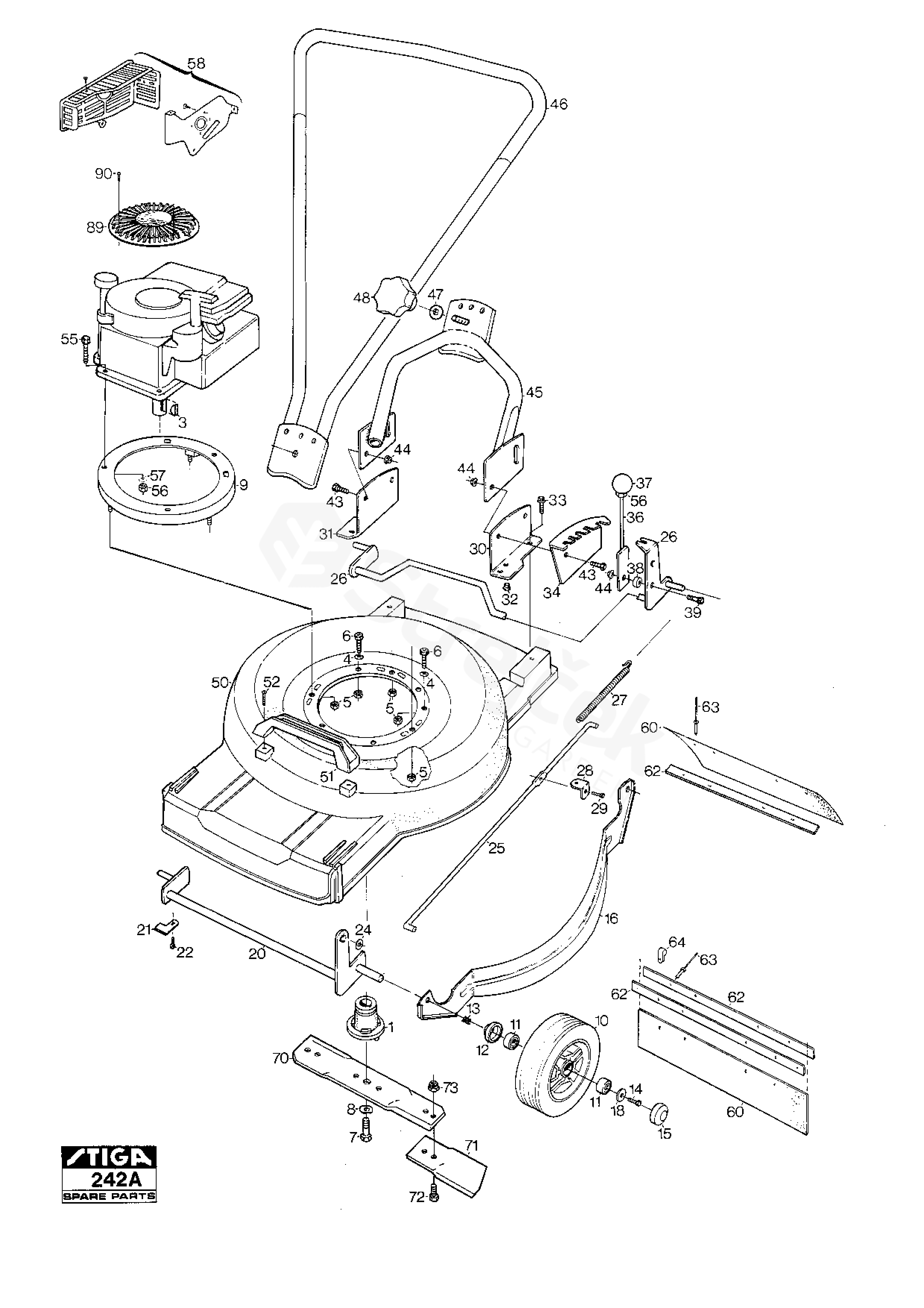

(W. Vibration Damper)
PRO 4 PRO 48 (AVVIBRERAD) (1989) [11-8316-14]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PRO 48 (AVVIBRERAD) (1989) [11-8316-14]
1 Blade Holder 1111-1408-01
3 Key 9600-0014-00
4 Washer 9699-0056-02
5 Nut 9799-0831-02
6 Screw 9939-0816-16
7 Screw 9987-5251-12
8 Washer 9696-0011-01
9 Shock Absorber 1111-2121-01
10 Wheel 1111-0817-04
11 Ball Bearing 9549-0015-00
12 Seal Grease 1111-0466-00
13 Spring-Wheel Axle 1111-1138-01
14 Screw 9997-0612-16
15 Hub Cap 1111-1506-01
16 Side Guard 1111-1487-02
18 Flat washer 9699-0100-02
20 Front Axle 1111-2149-01
21 Clamp 1111-1504-01
22 Screw 9943-0612-16
24 Locking washer 9675-0012-02
25 Rod 1111-1829-01
26 Rear axle 1111-2150-01
27 Spring 1111-1842-01
28 Holder 1111-1844-01
29 Screw 9943-0510-16
30 Handle Attachment,Lh 1111-1483-01
31 Handle Attachment,Rh 1111-1484-01
32 Plug 1111-1485-01
33 Screw 9942-0820-16
34 Adjusting Plate 1111-1500-01
36 Lever 1111-1839-01
37 Knob 9403-0036-70
38 Spacer 1111-1519-02
39 Screw 9997-0830-16
43 Screw 9997-0816-16
44 Nut 9739-0831-22
45 Handlebar Lower Part 1111-2134-01
46 Handlebar Upper Part 1111-2529-03
47 Washer 9699-0035-02
48 Locking Knob 1482-0163-01
50 Chassie 1111-2456-01
51 Handle 9403-0037-70
52 Screw 9943-0516-16
55 Screw 9997-0830-16
56 Nut 9799-0831-02
57 Washer 9683-0030-02
58 Heat Guard 9500-9955-00
60 Rubber Plate
Finland 		1111-0933-02
62 Mounting bar
Finland 		1111-0931-02
63 Rivet
Finland 		1151-0300-01
64 Clamp
Finland 		9578-0017-00
70 Blade Bar Assy 11-8997-11
71 Blade Kit (Mulcher) 1111-9049-01
72 Screw 9997-0816-16
73 Nut 9747-0831-02
89 Safety guard
Finland 		1111-1637-01
90 Screw 9846-7916-16
