STIGA
>
Lawn Mower
>
PRO 511S PRO 511S (1992) [11-8818-54]
>
Chassis
Back to
PRO 511S
PRO 511S (1992) [11-8818-54]
Chassis
PRO 511S
PRO 511S (1992) [11-8818-54]

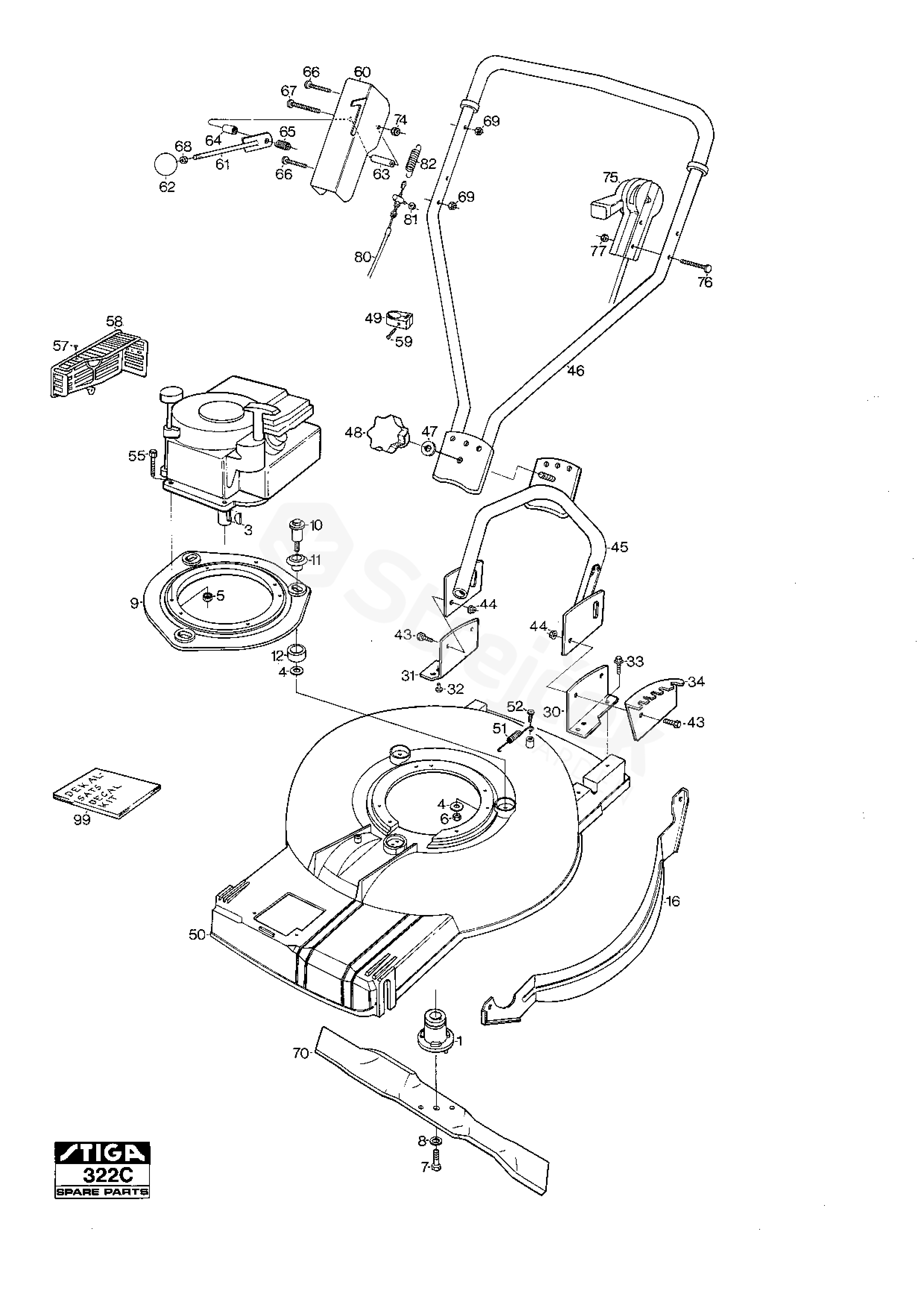

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PRO 511S (1992) [11-8818-54]
1
Blade Hub
22 mm
1111-2142-01
3
Key
9600-0014-00
4
Washer
9699-0056-02
6
Nut
9747-0831-02
7
Screw
9987-5257-12
8
Washer
9696-0011-01
9
Engine Mounting
1111-2460-01
10
Shoulder Bolt
1111-2454-01
11
Isolation Washer
1111-2453-01
12
Rubber Damper
1111-2452-01
30
Handle Attachment,Lh
1111-1483-01
31
Handle Attachment,Rh
1111-1484-01
32
Plug
1111-1485-01
33
Screw
9942-0820-16
34
Adjusting Plate
1111-1500-01
43
Screw
9959-0816-16
44
Nut
9799-0831-02
45
Handlebar Lower Part
1111-2134-01
46
Handlebar Upper Part
1111-2529-03
47
Washer
9699-0035-02
48
Locking Knob
1482-0163-01
49
Cable Holder
1111-2018-01
50
1111-2691-01+1111-2692-01
1111-2457-01
51
Spring
1111-2455-01
52
Screw
9943-0610-16
55
Screw
30 mm
9997-0830-16
57
Screw
B&S-part
94602
58
Heat Guard
9500-9987-00
59
Screw
9836-9216-12
60
Panel
1111-2182-01
61
Lever
1111-2089-01
62
Knob
9403-0036-70
63
Spacer
1111-2090-01
64
Sleeve
1111-2181-01
65
Spring
1111-2183-01
66
Screw
9948-0630-16
67
Screw
9948-0655-16
69
Nut
9799-0631-02
70
Use 1111-9076-01
1111-2442-02
74
Lock Nut
9747-0631-02
75
Throttle Cable
1111-2365-06
76
Screw
9948-0645-16
80
Clutch Cable
1111-1993-05
81
Nut
9739-0631-22
82
Spring
1482-0160-01
