Spare parts > STIGA > Lawn Mower > MULTICLIP 50 4S INOX RENTAL MULTICLIP 50 4S INOX RENTAL (2009) > Transmission
Back to
Transmission
MULTICLIP 50 4S INOX RENTAL MULTICLIP 50 4S INOX RENTAL (2009)

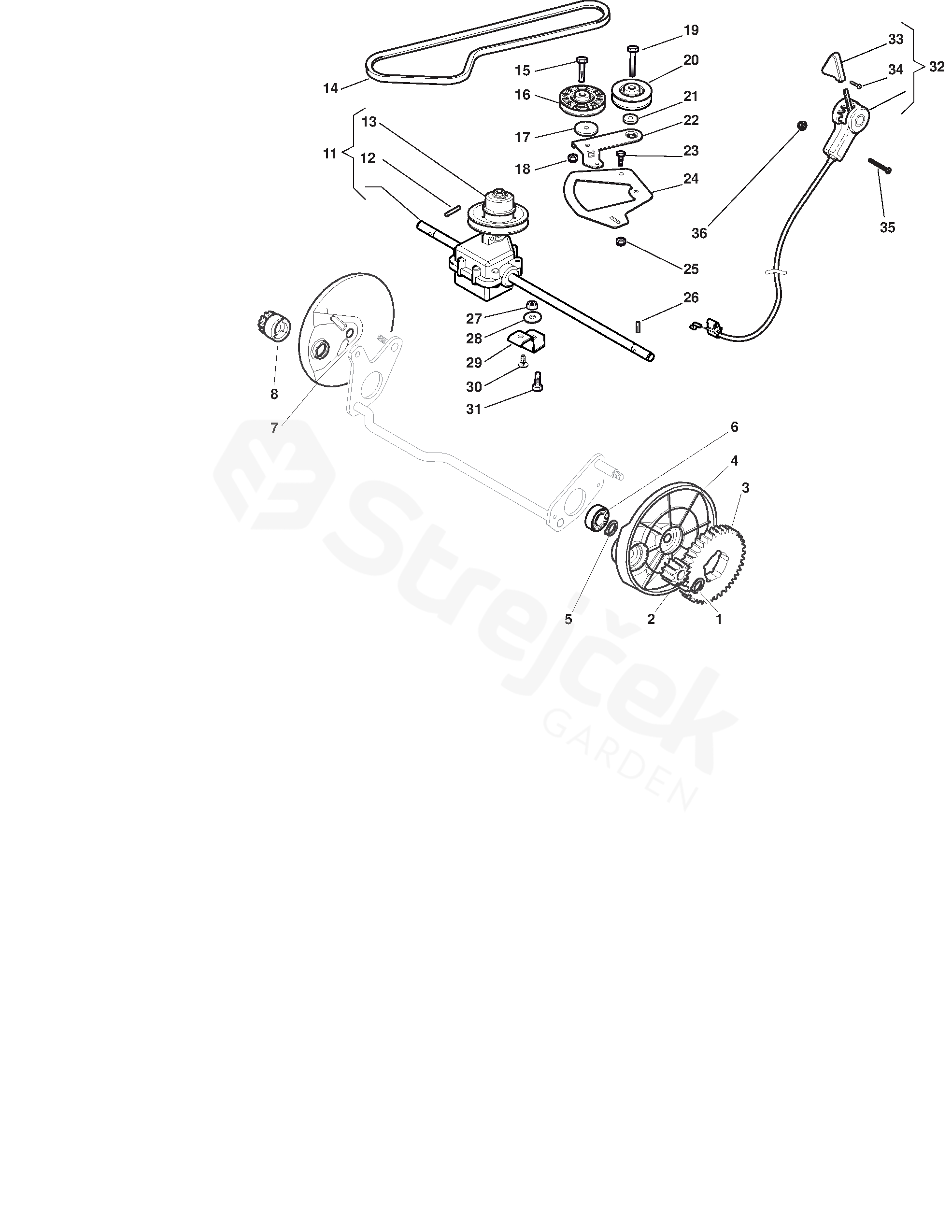

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MULTICLIP 50 4S INOX RENTAL (2009)
1 Seeger 112608600/0
2 Left pinion 122570120/1
3 Ring Gear 122120105/2
4 Protection, Wheel 322600267/0
6 Bearing 119216035/0
7 Left Wheel Protection 122600093/0
8 Right Pinion 122570110/1
11 Gear Box 181003098/1
12 Elastic Pin 112645700/0
13 Pulley 122601932/0
14 Belt 135064010/0
15 Screw 112689500/0
16 Pulley 122601914/0
17 Washer 322680009/0
18 Nut 112154510/0
19 Screw 112674701/0
20 Pulley 122601915/0
21 Washer 122671656/0
22 Lever 322320007/0
23 Screw 112791011/0
24 Pulley Lever Support 322806629/0
26 Pin 122753000/0
27 Nut 112155000/0
28 Washer 112523060/0
29 Plate 322551655/0
30 Screw 112728704/1
31 Screw 112793102/0
32 Speed Control Ass.Y 381007112/0
33 Knob 322399820/0
34 Screw 112728300/0
35 Screw 112727787/0
