STIGA
>
Lawn Mower
>
51 PD 51 PD (2005) [23-5386-14]
>

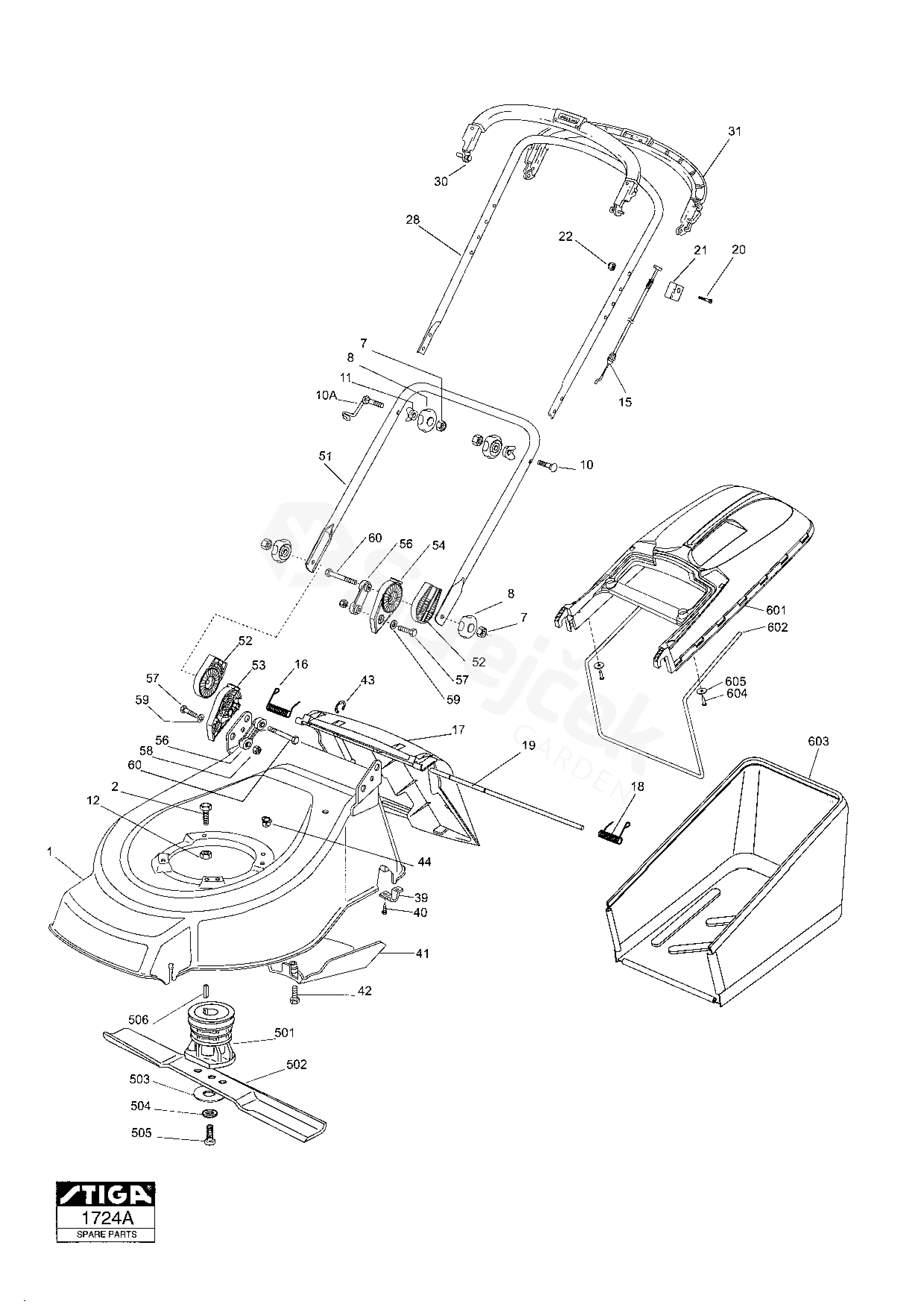

Chassis Handle
Back to
51 PD
51 PD (2005) [23-5386-14]
Chassis Handle
51 PD
51 PD (2005) [23-5386-14]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
51 PD (2005) [23-5386-14]
1
Yellow Deck
1136-1892-01
2
Screw
L = 60 mm
9997-0860-16
7
Nut
9799-0831-02
8
Knob
1117-3194-01
10
Screw
1136-0620-01
11
Washer
1136-0693-01
12
Nut
9739-0831-22
15
Cable, Thread Engine Brake
1136-1838-01
16
Spring-Rh
1111-3530-01
17
Flap
1136-1348-01
18
Spring-Lh
1111-3531-01
19
Pivot Pin
1136-0680-01
20
Screw
9997-0640-12
21
Cable Holder
1111-2969-01
22
Lock Nut
9747-0631-02
28
Handle-Upper
1136-1519-01
30
Control Handle (Eng.Brake
1111-2953-01
31
Clutch Lever
1111-2954-01
39
Plate
1136-0682-01
40
Screw
9847-8119-16
41
Belt Protection
1136-0644-01
42
Screw
1136-0614-01
43
Circlip
9652-0006-04
44
Rubber Insert
1136-0665-01
51
Handle-Lower
1136-1518-01
52
Support, External
1136-0698-01
53
Right Internal Support
1136-0699-01
54
Left Internal Support
1136-0700-01
56
Plate-Inside
1136-0683-01
59
Washer
9699-0028-02
60
Screw
1136-0613-01
501
Blade Holder
1111-9120-01
502
Blade
1111-9122-01
503
Elastic Washer
1136-0083-01
504
Washer
1136-0015-01
505
Screw
9987-5251-12
506
Key
9600-0014-00
601
Grass Box-Upper
1136-1345-01
602
Wire Frame
1136-1349-01
603
Grass Bag
1136-1367-01
604
Screw
9836-9525-12
605
Washer
9699-0085-02
10A
Screw
1136-0747-01
