STIGA
>
Lawn Mower
>

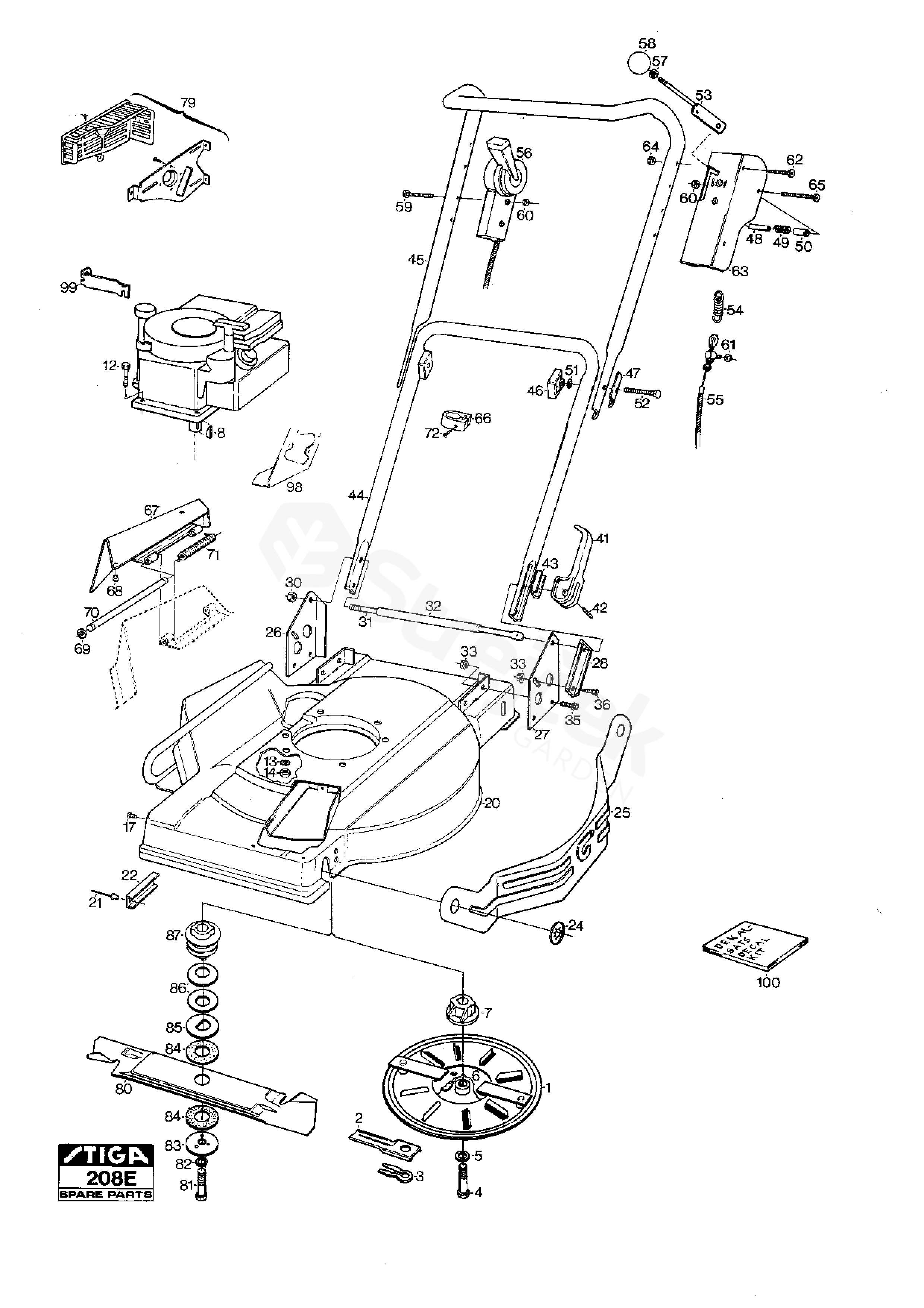

TORNADO 540 TORNADO 540 (1991) [11-2318-17]
>
Chassis
Back to
TORNADO 540
TORNADO 540 (1991) [11-2318-17]
Chassis
TORNADO 540
TORNADO 540 (1991) [11-2318-17]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TORNADO 540 (1991) [11-2318-17]
1
Ventilator Assy.
1111-9024-01
2
Tornado Blades
1111-9021-01
4
Screw
9987-5251-12
5
Washer
9696-0011-01
6
Spacer
1111-0400-00
7
Blade Hub
1111-9023-02
8
Key
9600-0014-00
12
Screw
60 mm
9997-0860-16
13
Washer
9683-0030-02
14
Nut
9799-0831-02
17
Screw
9849-7909-16
20
Chassis
1111-1907-01
21
Rivet
9632-0450-00
22
Stay
1111-1733-01
24
Starlock
9675-0024-00
25
Side Guard
1111-1265-01
26
Attachment-R.H.
1111-1513-01
27
Attachment-L.H.
1111-1266-01
28
Adjusting Plate
1111-1019-01
31
Tension Rod
1111-1015-02
32
Tube
1111-1014-02
35
Screw
9959-0816-16
36
Screw
9997-0816-16
41
Locking handle
1111-1016-01
42
Pin
9595-0235-00
43
Plastic Plate
1111-1020-01
44
Handlebar Lower Part
1111-2165-01
45
Handlebar-Upper Part
1111-2004-01
46
Handle Bolt Kit (2 Pcs)
1111-9030-02
47
Reinforcement
1111-0178-00
48
Spacer
1111-2090-01
49
Spring
1111-2183-01
50
Sleeve
1111-2181-01
51
Washer
9699-0025-02
52
Screw
9899-3551-12
53
Control Lever
1111-2338-01
54
Spring
1482-0160-01
55
Control Wire
1111-1993-06
56
Throttle Cable
1111-2368-01
58
Knob
9403-0036-70
59
Screw
9948-0645-16
60
Lock Nut
9747-0631-02
61
Nut
9739-0631-22
62
Screw
9948-0630-16
63
Attachm.plate
1111-2339-01
64
Nut
9799-0631-02
65
Screw
9948-0655-16
66
Cable Holder
1111-2018-01
72
Screw
9836-9216-12
98
Heat protection
1111-2246-01
100
Label Kit
1111-2233-04
