Spare parts > STIGA > Lawn Mower > TORNADO 90S TORNADO 90S (1993) [11-4215-11] > Chassis Blade
Back to

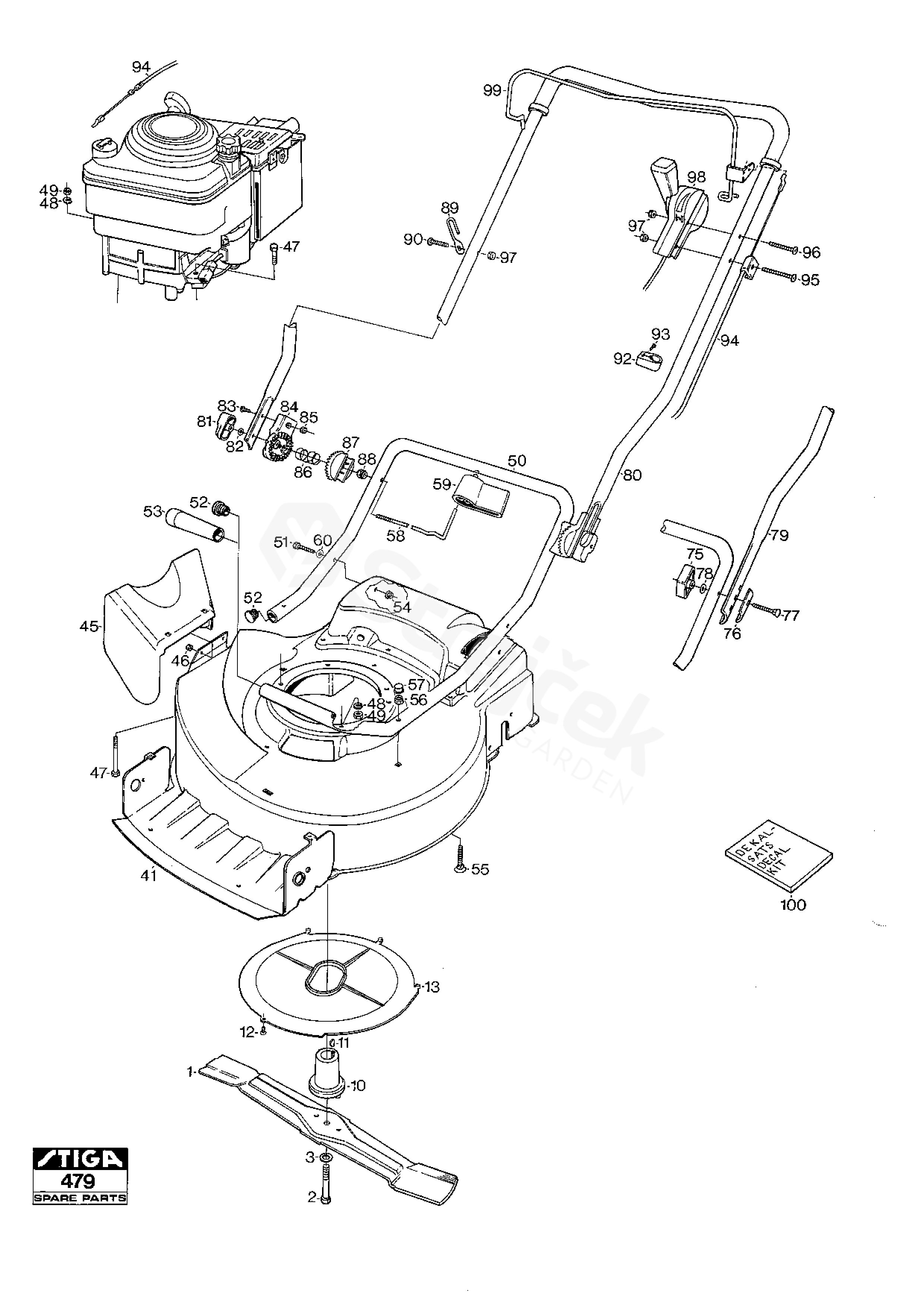

Chassis Blade
TORNADO 90S TORNADO 90S (1993) [11-4215-11]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TORNADO 90S (1993) [11-4215-11]
1 Blade 1111-2598-01
2 Screw 9987-5257-12
3 Washer 9696-0011-01
10 Blade Holder
25 mm 		1111-2677-01
11 Key 9600-0055-00
12 Screw 9848-8013-16
13 Grass Guard 1111-2604-01
41 Chassie 1111-2481-01
45 Ejection Shield (Yellow) 1111-2671-01
46 Nut 9747-0531-02
47 Screw
35 mm 		9997-0835-12
48 Washer 9683-0030-02
49 Nut 9799-0831-02
50 Handlebar Lower Part 1111-2571-01
52 Plug 9403-0043-70
54 Nut 9739-0831-22
55 Screw 9898-0835-12
56 Nut 9747-0831-02
57 Ring Nut 9403-0113-00
60 Washer 9699-0028-02
75 Handle Bolt Kit (2 Pcs) 1111-9030-02
76 Reinforcement 1111-0178-00
77 Screw 9899-3551-12
78 Washer 9699-0060-02
79 Handlebar-upper part 1111-2569-01
89 Eyelink 1111-3062-01
90 Screw 9948-0630-16
92 Cable Holder 1111-2018-01
93 Screw 9836-9216-12
94 Cable, Thread Engine Brake 1111-2541-02
95 Screw 9948-0655-16
96 Screw 9948-0645-16
97 Lock Nut 9747-0631-02
98 Throttle Control 1111-2609-06
99 Control Handle 1111-2607-01
100 Label Kit 1111-2893-04
